Air Louvers

Air Louvers Slimline Vision Lite Kit PAK with 1/4″ Clear Fireglass20, 20 Minute Fire-Rated Tempered Safety Glass

$119.92
Usually Ships:  3-5 Business Days

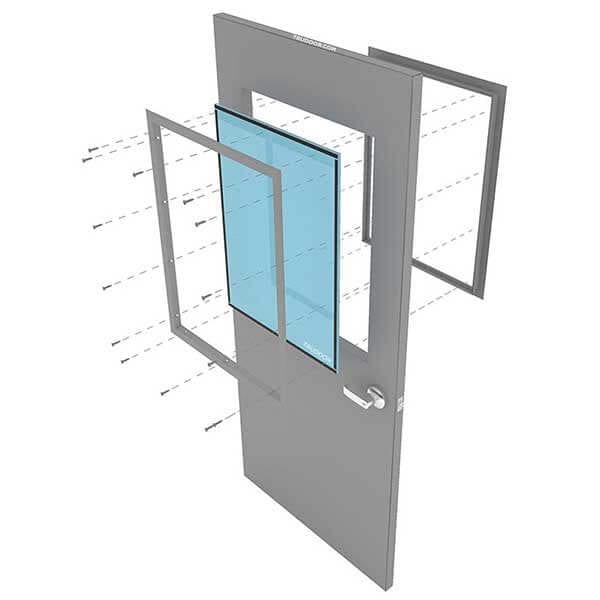

  • Complete Lite Kit = Frame, Glass & Glazing Tape
  • Includes Fireglass®20 (tempered 20-minute fire-protective glass)
  • For 1-3/4″ thick fire-rated metal or wood doors

Available Options:

Clear

Product Overview

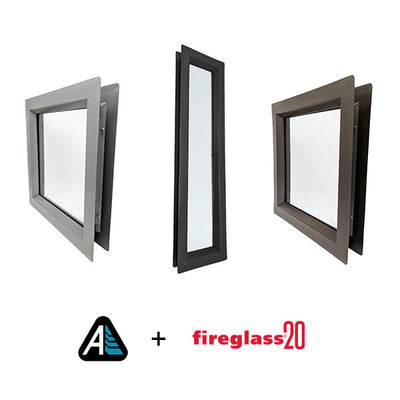

Activar Aire Louers VSL FIREGLASS20 PAK Complete Lite Kit Pack -VSL Vision Lite Frame, TGP Fireglass®20 Glass, and Glazing Tape -  for 1-3/4" Thick 20 Minute Fire Doors


Fireglass®20 is a 1/4" (6 mm) thick fire-rated and impact safety-rated glazing material. It is listed for use in doors with a fire rating requirement of 20 minutes.
  • Order size equal to cutout size - Glass size is 1" under, Visible glass is 2" under
  • Includes Fireglass20 - a clear fire-rated and impact-safety-rated tempered glass for 20-minute fire doors
  • Closed-cell glazing tape included with every kit
  • Frame is embossed with UL Label
  • Glass is permanently etched with UL fire and impact safety classification
  • This glass is cut to size then heat treated (tempered) to achieve its safety rating properties

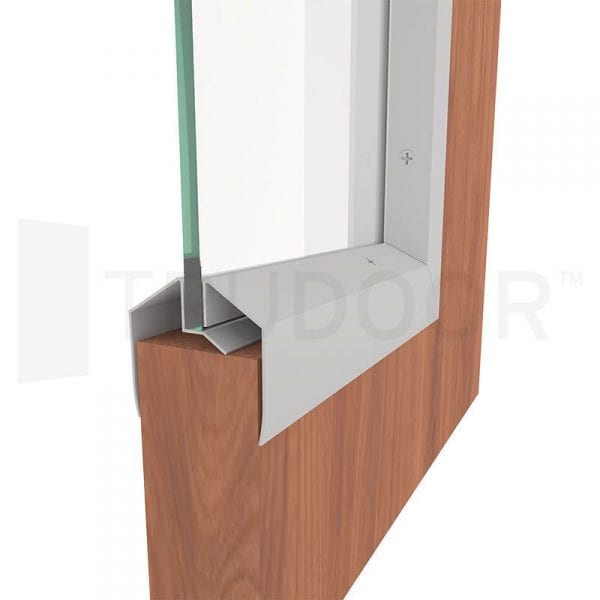

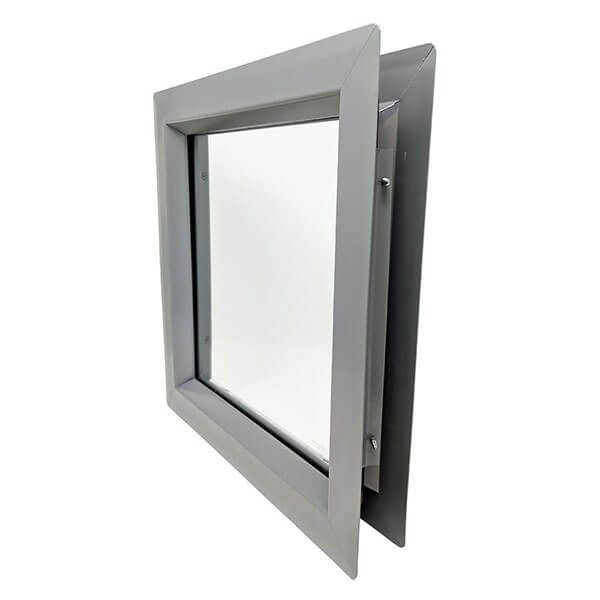

  • 1-1/4" trim with radius corners, mitered and welded
  • Continuous glass retainer, countersunk mounting holes in the bevel on the non-corridor side.
Classified and labeled by Underwriters Laboratories, Inc.®. File number for labeled 20 minute fire-rated assemblies is R13377. Tests performed in accordance with:UL 9, UL 10B, UL 10C, NFPA 80, NFPA 252, LARR 25798. All listing information is subject to change.
Labeling: Each piece of Fireglass20 shall be permanently labeled with the appropriate marking
Note: Per NFPA 80 (National Fire Protection Association), field cutting of doors for vision panels or enlarging existing cutouts for vision panels are considered to be a field modification that is NOT allowed.
Call 1-844-TRUDOOR (844-878-3667) for custom sizes and info on volume discounts
All lite kits are carefully packaged to ensure safe delivery. Due to the weight and/or fragile nature of this product, a handling/package fee will be added upon checkout. The fee varies depending on the shipping destination. See our shipping info page for more details.
Brand

Air Louvers
Finishes

Black (BK), Gray (G), Mineral Bronze (B), Silver (SI), White (W)
Order Size

12" x 12", 24" x 30", 24" x 32", 24" x 36", 6" x 27", 8" x 32"
Glass Type

Clear Fire-Rated Glass, Clear Tempered Glass
Glass Thickness

1/4"
Glass Weight

3.0 lbs/ft
Glass Light Transmission

Approx. 89-
Glass Appearance

Clear
Glass Impact Safety Rating

Meets ANSI Z97.1 and CPSC 16CFR1201 (Cat. I and II)
Glass Fire-Rating

20 minutes (without required hose stream test)
Frame Fire-Rating

3 Hour - Tested and Listed for UL 10C and Criteria of UBC 7-2 Positive Pressure - WHI Listed
Frame Profile

Low
Frame Construction

20 Gauge Cold Rolled Steel
Frame Fasteners

#8 x 1" Flathead Phillips SMS - Included
Door Thickness

1-3/4"
