Product Overview

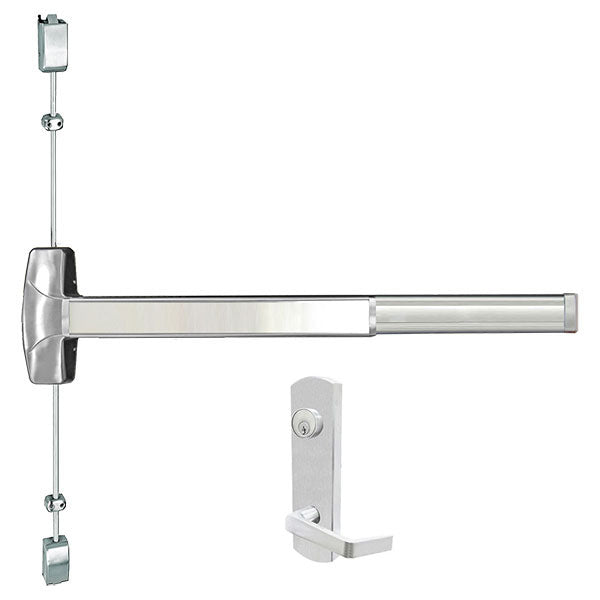

Cal-Royal A7760V/AF7760V x ESC7700 Surface Vertical Rod Exit Device with Escutcheon Entrance Lever Trim, Heavy Duty Grade-1
For use in institutions, schools, universities, and commercial buildings where heavy-duty, reliable operation is a requirement.
- ANSI Function 08 – Rigid Entrance, key locks or unlocks escutcheon trim – Operates as classroom function
- ANSI A156.3, GRADE 1 heavy-duty exit device
- Retrofits Von Duprin 99 & 98 Series using 7700 Escutcheon trim
- Rail assemblies are heavy-duty extruded aluminum body with stainless steel push pad and end caps are made of brass, bronze or stainless steel
- Trims are thru-bolted for additional security
- Conforms & Meets ADA Regulations
- Americans with Disability Act (ADA) Compliant, 5 lbs. opening force
- UL and ULC Listed - A7760V Series for panic. AF7760V Series for fire exit hardware for all types of 8’ x 10’ double doors for up to 3-hour fire labeled installations. Conforms to standards UL10C and UBC 7-2-1997 codes.
- Uncompromising security and safety in single and double fire exit doors
- Chassis-mounted unit construction
- Non-handed and easily reversible
- 2-3/4″ width x 10-1/4″ length – Lever length: 4-3/4″
- Fits and covers 2-1/8″ 161 cutout
- Rigid, non-clutch mechanism
- Double heavy-duty spring support to prevent sagging and enhance operation
- Grade 1, thru-bolted design.
- Non-handed design – Easily field reversible
- Hardened steel heavy-duty tailpiece
- Includes mortise cylinder (Schlage C keyway)
