Product Overview

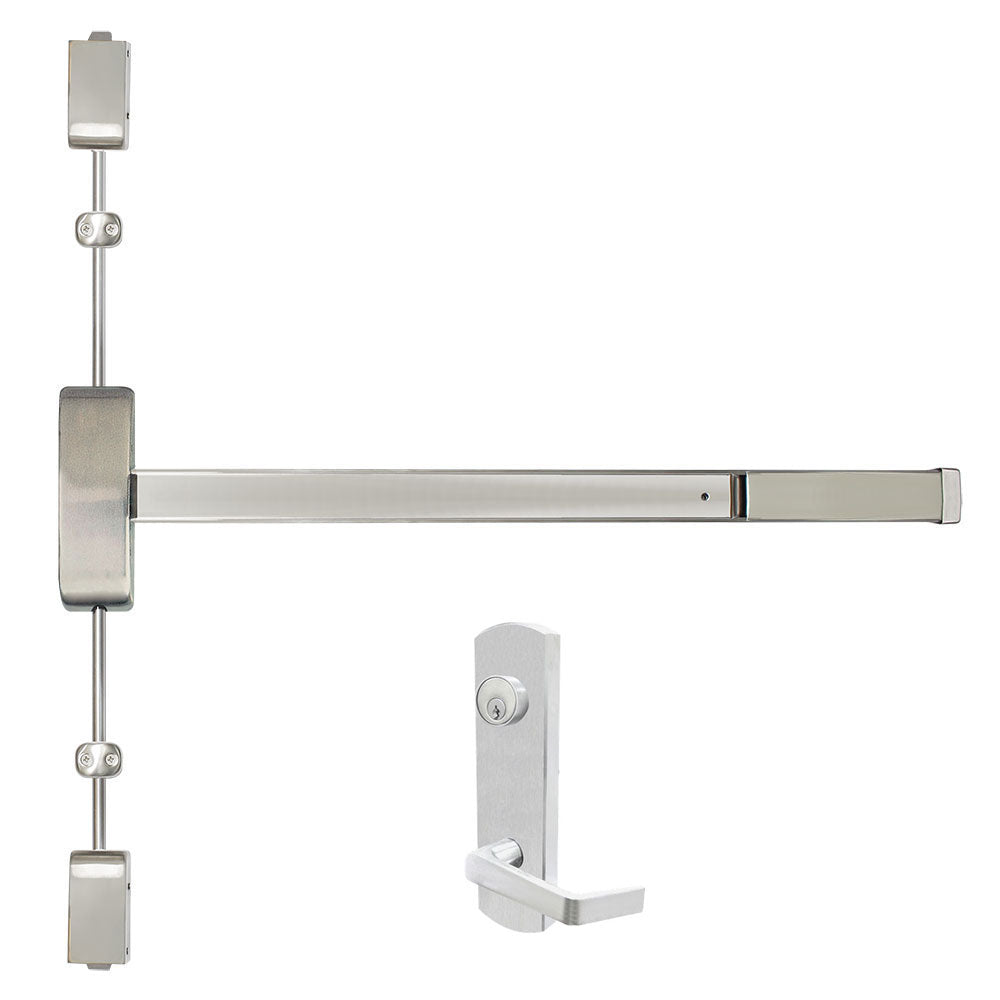

Cal-Royal A9860V/AF9860V x NESC9805 Surface Vertical Rod Exit Device with Escutcheon Storeroom Lever Trim, Heavy Duty Grade-1
The 9800 Series offers uncompromising security and safety in single and double fire exit doors. For use in institutions, schools, universities, commercial buildings where heavy-duty reliable operation is a requirement.
- ANSI Function 09 – (Night Latch) Rigid Storeroom, key unlocks lever, lever retracts latch bolt, otherwise always locked
- For Doors - 1 ¾" thick standard. 3 ¾" minimum stile width for single door application. 3 ½" minimum stile width required for double door application.
- BHMA/ANSI A156.3, Grade-1 Certified
- Retrofits Sargent 8800 Series
- Conforms & Meets ADA Regulations
- Americans with Disability Act (ADA) Compliant, 5 lbs. opening force
- UL and ULC Listed - 9860 Series for panic. F9860 Series for fire exit hardware for all types of 8’ x 8’ double doors for up to 3-hour fire labeled installations. Conforms to standards UL10C and UBC 7-2-1997 codes
- Uncompromising security and safety in single and double fire exit doors
- Chassis-mounted unit construction
- Non-handed and easily reversible

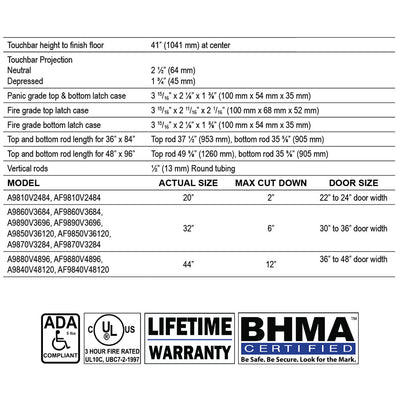

- 2-3/4″ width x 10-1/4″ length – Lever length: 4-3/4″
- Fits and covers 2-1/8″ 161 cutout
- Rigid, non-clutch mechanism
- Double heavy-duty spring support to prevent sagging and enhance operation
- Grade 1, thru-bolted design
- Non-handed design – Easily field reversible
- Hardened steel heavy-duty tailpiece
- Includes mortise cylinder (Schlage C keyway)
