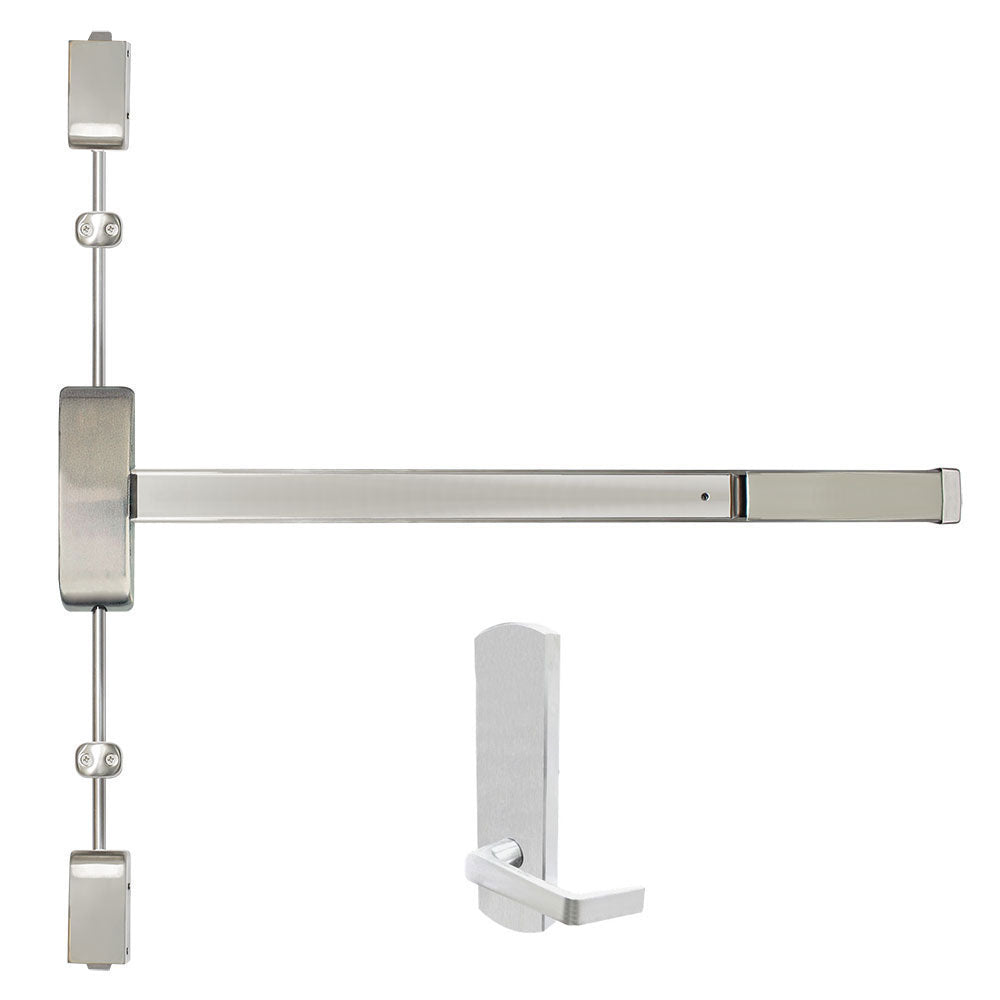

Cal-Royal A9860V x NESC9830 Surface Vertical Rod Exit Device with Escutcheon Passage Lever Trim

$564.86
This item ships FREE! Usually Ships:  2-3 Business Days
  • Heavy Duty, ANSI/BHMA Grade-1 Certified
  • Includes NESC9830 escutcheon lever trim (keyless)
  • ANSI Function 14 – lever always operable and free

Available Options:

Clear

Product Overview

Cal-Royal A9860V/AF9860V x NESC9830 Surface Vertical Rod Exit Device with Escutcheon Passage Lever Trim, Heavy Duty Grade-1


The 9800 Series offers uncompromising security and safety in single and double fire exit doors. For use in institutions, schools, universities, commercial buildings where heavy-duty reliable operation is a requirement.
  • ANSI Function 14 – Trim always operable and free
  • For Doors - 1 ¾" thick standard. 3 ¾" minimum stile width for single door application. 3 ½" minimum stile width required for double door application.
  • BHMA/ANSI A156.3, Grade-1 Certified
  • Retrofits Sargent 8800 Series
  • Conforms & Meets ADA Regulations
  • Americans with Disability Act (ADA) Compliant, 5 lbs. opening force
  • UL and ULC Listed - 9860 Series for panic. F9860 Series for fire exit hardware for all types of 8’ x 8’ double doors for up to 3-hour fire labeled installations. Conforms to standards UL10C and UBC 7-2-1997 codes
  • Uncompromising security and safety in single and double fire exit doors
  • Chassis-mounted unit construction
  • Non-handed and easily reversible
NESC9830 Lever Trim
  • 2-3/4″ width x 10-1/4″ length – Lever length: 4-3/4″
  • Fits and covers 2-1/8″ 161 cutout
  • Double heavy-duty spring support to prevent sagging and enhance operation
  • Grade 1, thru-bolted design.
  • Non-handed design – Easily field reversible
  • Hardened steel heavy duty tailpiece
