Product Overview

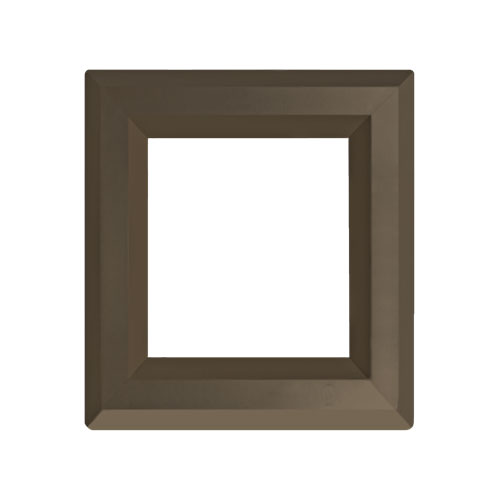

Cal-Royal SVL Series Low Profile Vision Lite Frame for 3/16″ to 1/4″ Thick Glass, for 1-3/4″ Thick Doors
For use in fire-rated door applications under positive and neutral pressure. Intertek testing certification in compliance to NFPA 252 (2000), UL 10C (2009), CAN/ULS104 (2010), NFPA (201), and CSI CODE 0870 00.

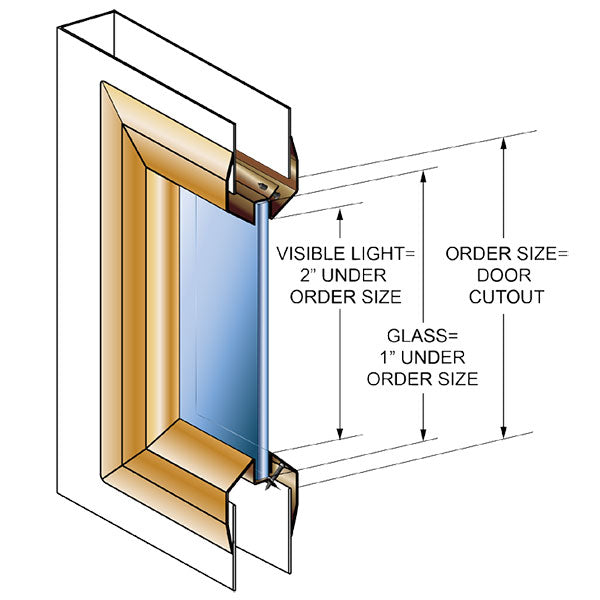

- Order size = cut-out size
- Visible light is 2″ under rough opening size. Glass size is 1″ under order size
- Glass / Glazing Tape Not Included - glazing to be ordered separately from our glazing section. Use fire-rated glazing with Warnock Hersey (WHI) or UL classification markings for fire-rated applications.
- Low Profile Beveled Vision Lite
- 20 Gauge Cold Rolled Steel
- Mitered welded corners with counter-sunk mounting holes
- Single side attaching with matching mounting screws included
- For use with 3/16” to ¼” glass thickness
- Designed for use with 1 ¾” doors only
- Baked on powder coat finish
- Color: Standard Bronze
- Fastener: # 8 x ⅞” flathead phillips head SMS
| Brand |
Cal-Royal |
|---|---|
| Door Applications |
1-3/4" Metal and Wood Doors |
| Door Thickness |
1-3/4" |
| Finish |
Dark Bronze |
| Finishes |
Dark Bronze (DB) |
| Frame Construction |
20 Gauge Cold Rolled Steel |
| Frame Fasteners |
# 8 x ⅞” flathead phillips head SMS |
| Frame Fire-Rating |
Intertek testing certification in compliance to NFPA 252 (2000) UL 10C (2009) CAN/ULS104 (2010) NFPA (201) and CSI CODE 0870 00 |
| Glass Thickness |
3/16" to 1/4" |
| Order Size |
24" x 30"7" x 22"24" x 36"24" x 24"6" x 27"12" x 12"18" x 18"24" x 32"8" x 32"5" x 35"8" x 18" |
