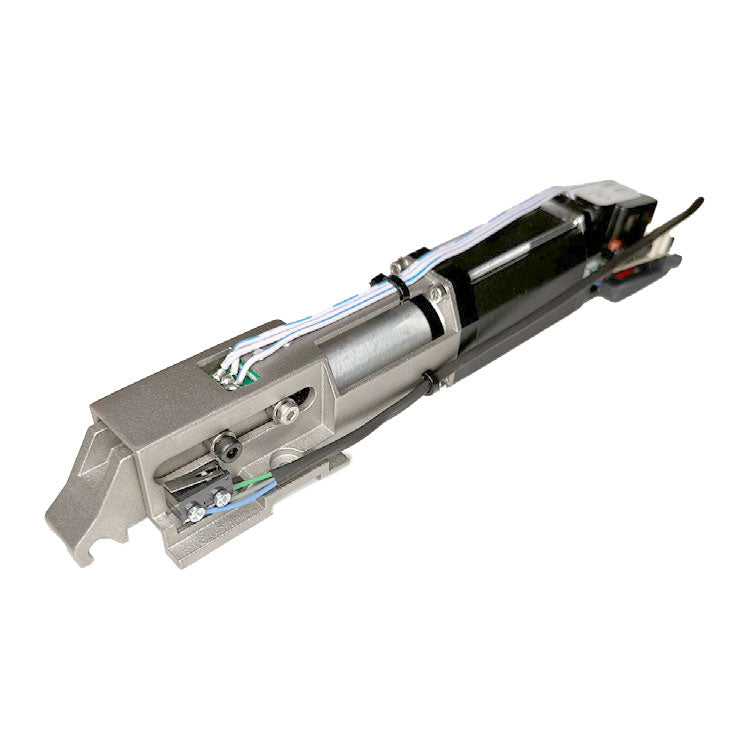

Command Access MLRK1-AR Motorized Latch Retraction Kit for Adams Rite 8200/8400/8600/8800/P8800 Series Exit Devices

Command Access MLRK1-AR Motorized Latch Retraction Kit, for Adams Rite 8200/8400/8600/8800/P8800 Series Exit Devices (Field Installation)

The MLRK1-AR is a cost-effective and straightforward way to upgrade your Adams Rite 82/84/86/88/P88 series device to motor-driven latch retraction in the field. UL Listed + 3-Year Warranty.

The MLRK1-AR is a robust, straightforward field-installable motorized latch retraction kit for Adams Rite P88/88/86/84/82 series exit devices. It utilizes a CAT-designed custom assembly to maximize the pulling force. The only hole you’ll need to drill is the raceway! It uses our new 1-touch PTS “Push to Set” technology, making post-installation adjustments a breeze. An optional built-in REX switch is available on all units

• Works with all Adams Rite P8800/8800/8600/8400/8200 series exit devices
• Fast, Quite, Smooth & Strong!
• Patent pending Push to Set (PTS) Technology
• Next Generation MM5 Smart Module: Onboard diagnostics
• Standard Torque Mode: Now capable of pulling all types of devices, even the difficult tall Vertical Rods doors!
• Electric dogging rated for continuous duty - Auto reengage if push pad is pulled from dogged position
• UL Listed
• 3-Year “No Hassle” Warranty

Specifications:

• Voltage Range – 24 TO 28 VDC
• System protection – unit shutdown when voltage exceeds 28 VDC
• Standard - average current peak: 900MA, average current hold: 215MA
• PTS adjustment - approx. 1/4"
• Wire Run: 300' with 18ga wire
• Cutdown details: 36” - .75”, 42” - 6.75”, 48” - 5
• Built-in (REX) Request-to-Exit kit optional
