Product Overview

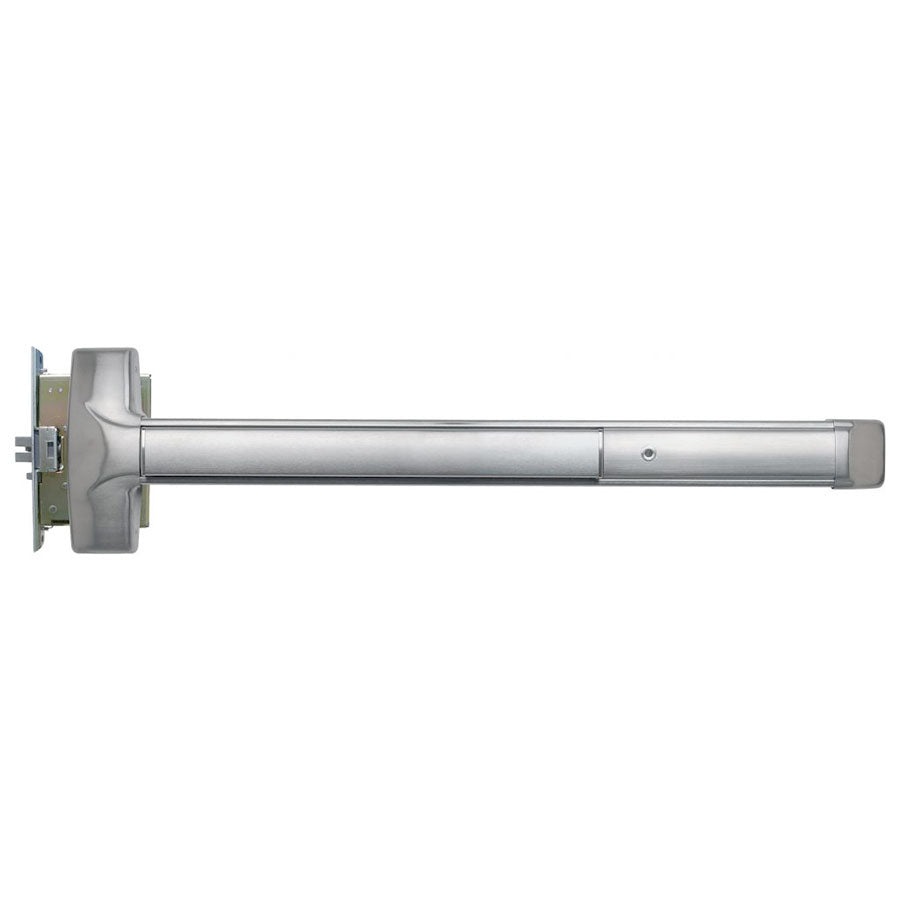

Detex Advantex 30 Series Wide Stile Mortise Exit Device, Hex Dogging, 90 Non-Handed Curved Lip Strike
The 30 Series mortise lock exit device is super-heavy-duty panic and fire exit hardware for use on all types of single and double doors. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available.
- Heavy-duty angled end cap deflects damage away from device
- Tough and durable design for years of trouble-free service in high-use, high-abuse environments
- Anti-friction, deadlocking, latch bolt
- All exposed surfaces are finished over stainless steel with PVD, an environmentally-friendly finishing process
- Non-handed, field sizeable
- Outside trims are easily changed or re-keyed without removing device from door
- Fast and easy installation saves time and money
| ANSI/BHMA Standard |
ANSI/BHMA certified A156.3 |
|---|---|
| Brand |
Detex |
| Buy American Act Compliance |
Meets Buy Amercian Act - Made in USA |
| Dogging Feature |
Half turn hex dogging standard |
| Door Thickness |
1-3/4" to 2-1/4" |
| Finish |
Dark BronzeBlackStainless Steel |
| Finishes |
630 Satin Stainless SteelSPBLK (693) BlackSP313 (695) Dark Bronze |
| Fire Rating |
Non-Fire-Rated |
| Handing |
Non-Handed |
| Latchbolt |
3/4" Projection Stainless Steel latch bolt - Anti-friction deadlocking |
| Length |
36"48" |
| Minimum Stile Width |
4-3/4" |
| Stile Type |
Wide (Standard) |
| Strike |
90 Curved Lip ANSI Strike |
| Usage |
Heavy Duty |
