Falcon

Falcon 24-C-EO Narrow Stile Concealed Vertical Rod Exit Device

$891.66
This item ships FREE! Usually Ships:  1-2 Business Days
  • Heavy Duty, Certified ANSI A156.3-2001 grade 1
  • Fits door stiles as narrow as 2-1/4"
  • Streamlined design and clean lines

Available Options:

Clear

Product Overview

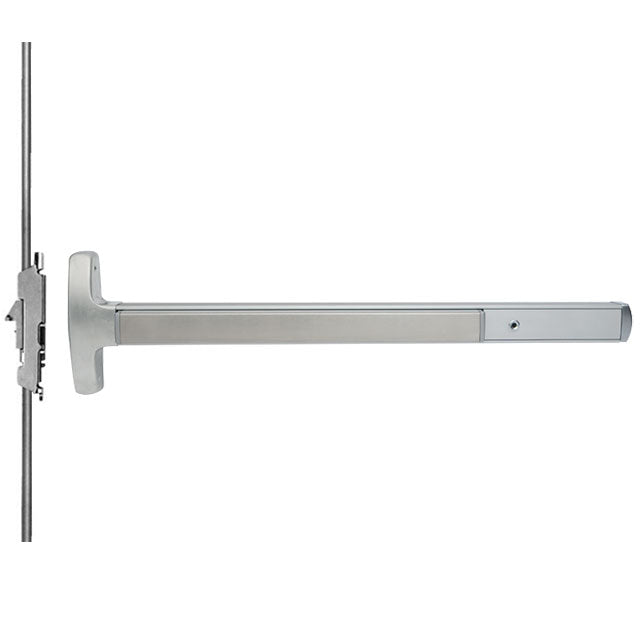

Falcon 24-C-EO Grade 1 Concealed Vertical Rod Exit Device, Exit Only

Concealed vertical rods add strength to the door, while maintaining an attractive appearance. The Falcon 24-C Series concealed vertical rod device offers great value, clean styling, a versatile narrow stile design and the security benefits of two-point latching. Falcon’s patented center slide mechanism allows easy rod adjustment in the field.

  • EO = Exit Only (Outside Trim Sold Separately)
  • For 7'0" door height
  • 2-1/4" minimum stile when used in pairs
  • Certified ANSI A156.3-2001 grade 1 standards

ANSI Grade

Certified ANSI A156.3-2001 Grade 1 standards
Brand

Falcon
Buy American Act Compliance

Meets Buy Amercian Act - Made in USA
Device Type

Concealed Rod Device
Dogging Feature

Half turn hex dogging standard
Door Applications

1-3/4″ Thick Doors
Fasteners

All mounting screws are concealed sheet metal screws and machine screws standard
Finish

Satin ChromeDark BronzeAnodized Aluminum
Finishes

313AN Anodized Dark BronzeUS28 (628) Anodized AluminumUS26D (626) Satin Chrome
Hand

Non-handed
Latchbolt

Top stainless steel top latch 3⁄4" throw. Bottom bolt 1⁄2" throw.
Length

3'0" (2'8" to 3'0" Doors)4'0" (3'2" to 4'0" Doors)
Minimum Stile Width

2-1/4" minimum when used in pairs. (6" minimum on wood doors)
Projections

2-3/4" maximum 2" dogged
Stile Type

Narrow

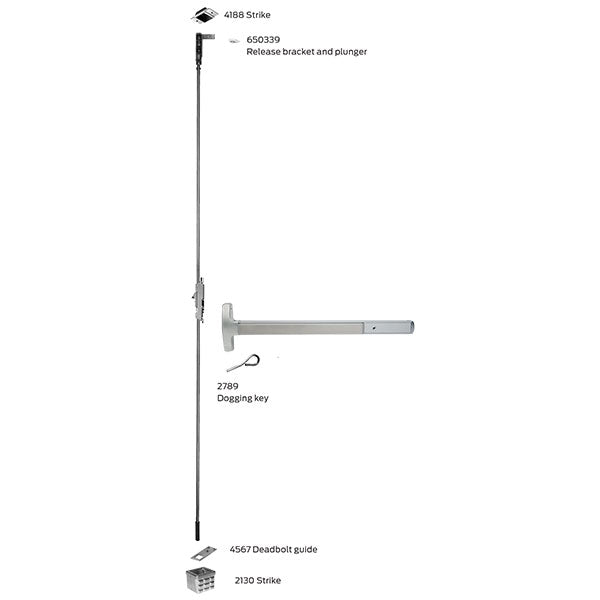

Strike

4188 mortised top and 2130 flush strike bottom
Usage

Heavy Duty
Vertical Rods

Furnished to length based on 40" horizontal CL to finished floor and a 7'0" door
