Falcon

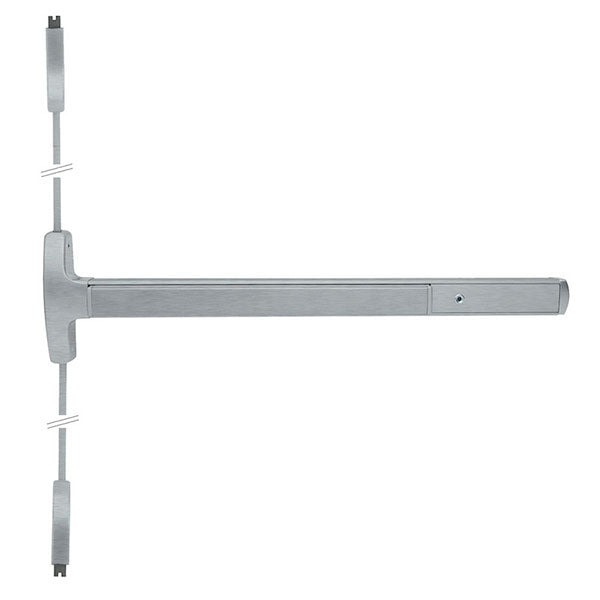

Falcon 24-V-EO Narrow Stile Surface Vertical Rod Exit Device

$849.24
This item ships FREE! Usually Ships:  1-2 Business Days
  • Heavy Duty, Certified ANSI A156.3-2001 grade 1
  • Fits door stiles as narrow as 1-3/4"
  • Streamlined design and clean lines

Available Options:

Clear

Product Overview

Falcon 24-V-EO Grade 1 Surface Vertical Rod Exit Device, Exit Only

High-traffic applications demand the added strength and protection that comes with a vertical rod device. The Falcon 24-V Series delivers with a surface-applied design that includes standard top latch and deadlocking. The narrow stile and sleek touch bar design ensure an attractive installation.

  • EO = Exit Only (outside trim sold separately)
  • For 7'0" door height
  • 1-3/4" minimum stile when used in pairs
  • Certified ANSI A156.3-2001 grade 1 standards

ANSI Grade

Certified ANSI A156.3-2001 Grade 1 standards
Brand

Falcon
Buy American Act Compliance

Meets Buy Amercian Act - Made in USA
Device Type

Surface Rod Device
Dogging Feature

Half turn hex dogging standard
Door Applications

1-3/4″ Thick Doors
Fasteners

All mounting screws are concealed sheet metal screws and machine screws standard
Finish

Stainless SteelAnodized AluminumDark BronzeSatin Chrome
Finishes

US32D (630) Satin Stainless Steel313AN Anodized Dark BronzeUS28 (628) Anodized AluminumUS26D (626) Satin Chrome
Hand

Field Reversible
Latchbolt

Top stainless steel top latch 3⁄4" throw. Bottom bolt 1⁄2" throw.
Length

4'0" (3'2" to 4'0" Doors)3'0" (2'8" to 3'0" Doors)
Minimum Stile Width

1-3/4" minimum when used in pairs
Projections

2-3/4" maximum 2" dogged
Stile Type

Narrow
Strike

3788 top strike is surface applied 2130 bottom strike is mortised into floor.
Usage

Heavy Duty
Vertical Rods

Furnished to length based on 40" horizontal CL to finished floor and a 7'0" door
