Falcon

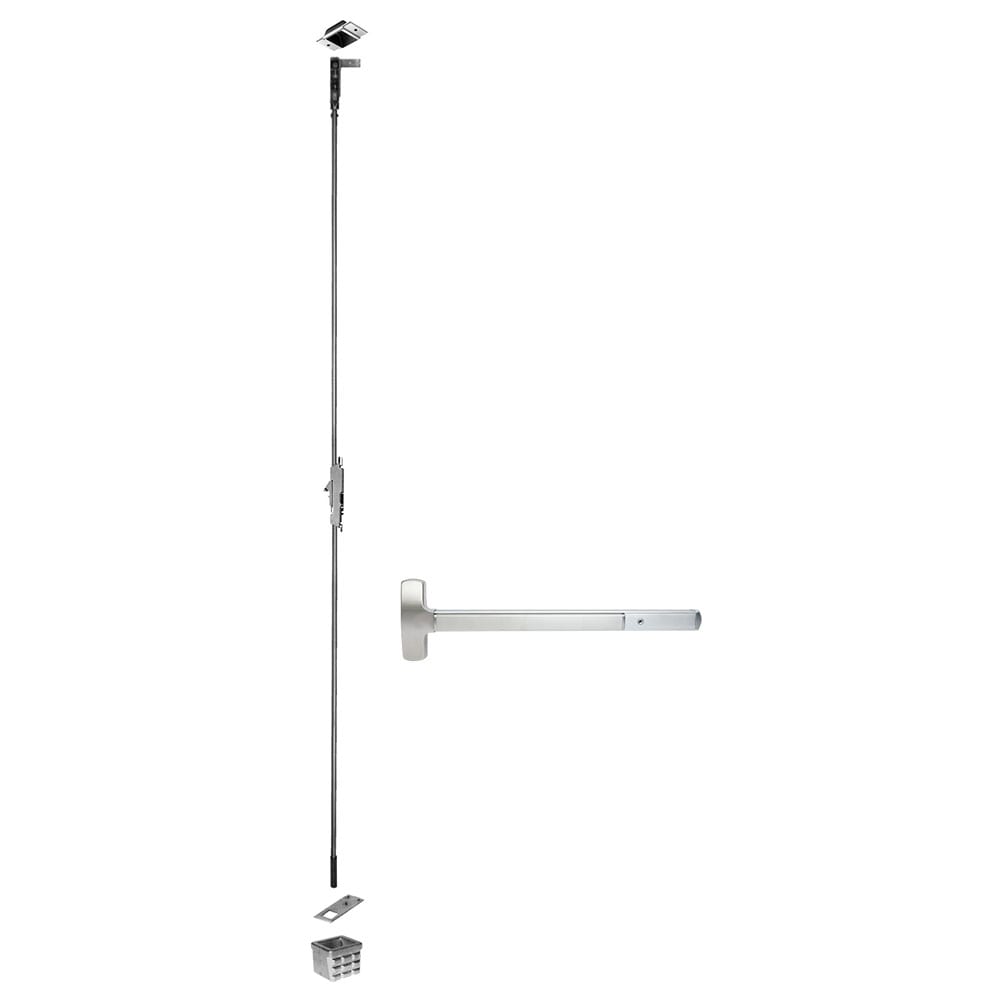

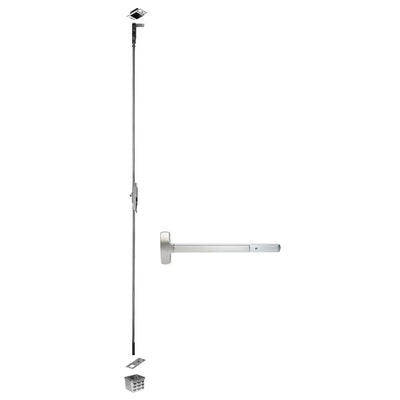

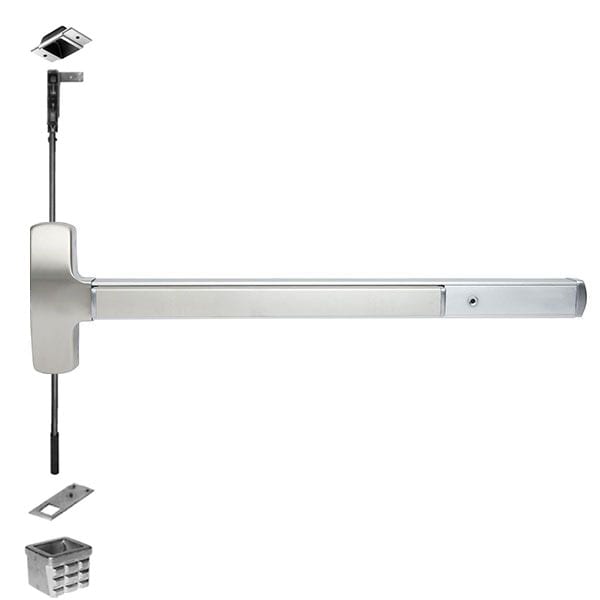

Falcon 25-CWDC-EO/F-25-CWDC-EO Concealed Vertical Rod Panic Bar Exit Device for Wood Door

$1,132.21
This item ships FREE! Usually Ships:  1-2 Business Days
  • Heavy-Duty - Grade-1 ANSI Certified
  • For use with wood doors
  • Streamlined design and clean lines

Available Options:

Clear

Product Overview

Concealed vertical rods add strength to the door, while maintaining an attractive appearance. The Falcon 25-CWDC Series concealed vertical rod device offers great value, clean styling, and the security benefits of two-point latching. Falcon’s patented center slide mechanism allows easy rod adjustment in the field. The Falcon F-25-CWDC Series device lets you combine the safety of a fire-rated device with the clean aesthetics that come with a concealed vertical rod installation. In-field adjustme1nt is simple thanks to our patented center slide mechanism. Two-point latching ensures optimal security at the door.

  • EO = Exit Only, ANSI Function 01 (25 Series Outside Trim Sold Separately)
  • For doors up to 7'0" height
  • US26D Satin Chrome Finish
  • 2-3/4" maximum projection, 2" dogged

ANSI Grade

Certified ANSI A156.3-2001 Grade 1 standards
Brand

Falcon
Buy American Act Compliance

Meets Buy Amercian Act - Made in USA
Device Type

Concealed Rod Device
Dogging Feature

Hex key dogging standard on non-fired-rated devices
Door Applications

1-3/4" Thick Wood Doors
Finish

Satin Chrome
Finishes

US26D (626) Satin Chrome
Fire-Rated

Non-Fire-Rated (w/ Dogging Feature)Fire-Rated (No Dogging)
Fire Rating

20-Minute 8’ X 9’ - 6090-Minute 8’ X 8’ - Consult wood door manufacturers for current UL listings
Handing

Completely Reversible
Latchbolt

Top Stainless Steel 3/4" throw. Bottom Bolt 1/2" Throw
Length

4'0" (3'4" to 4'0" Doors)3'0" (2'8" to 3'0" Doors)
Minimum Stile Width

6-1/2"
Projections

2-3/4" maximum 2" dogged
Stile Type

Wide (Standard)
Strikes

4188 mortised top 2130 bottom standard
Usage

Heavy Duty
Vertical Rods

Rods Accommodate Doors up to 7'0" - Cut to Specification in Field (top extension rod available)
