Falcon F-25-V-EO-LBR Fire-Rated Surface Vertical Rod Exit Device (Less Bottom Rod)

$1,067.62
This item ships FREE! Usually Ships:  1-2 Business Days
  • Heavy Duty, ANSI Grade-1 Certified - Made in USA
  • 3' x 7' LBR (less bottom rod) Device w/ auxiliary fire bolt
  • Order 2 devices for 1 pair of doors

Available Options:

Clear

Product Overview

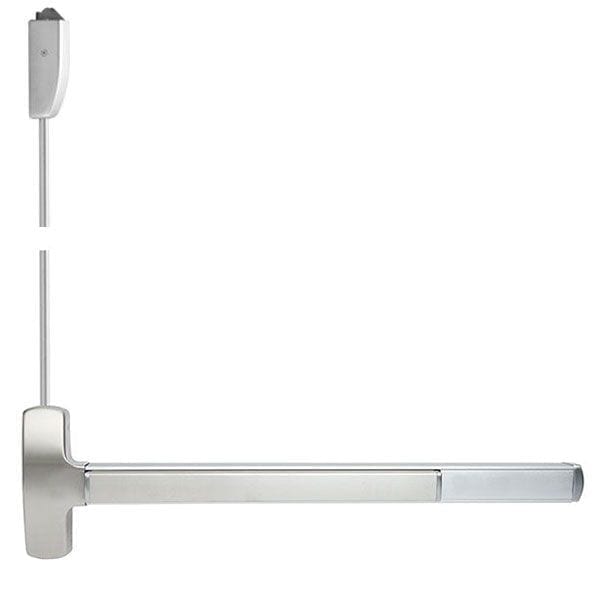

Falcon F-25-V-EO-LBR Surface Vertical Rod Exit Device, UL Listed, Fire-Rated, Less Bottom Rod

High-traffic applications demand the added strength and protection that comes with a vertical rod device. The Falcon 25-V Series delivers with a surface-applied design that includes standard top latch and deadlocking. The sleek touch bar design ensures an attractive installation. Offices, banks, assisted living facilities, retail stores, and other commercial buildings have constant traffic, so door hardware must be able to take continual use and abuse.

No exposed screws or rivets on the back of the device for a streamlined design and clean lines - when installed on full glass doors.

  • Standard Size: 3' x 7' (extension rod for 8' doors available in Exit Device Parts and Accessories)
  • Top Rod Accommodates Doors up to 7’0″ – Cut to Specification in Field

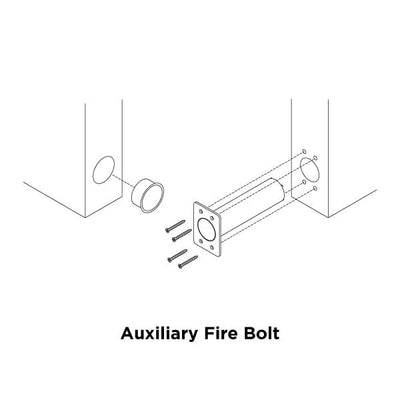

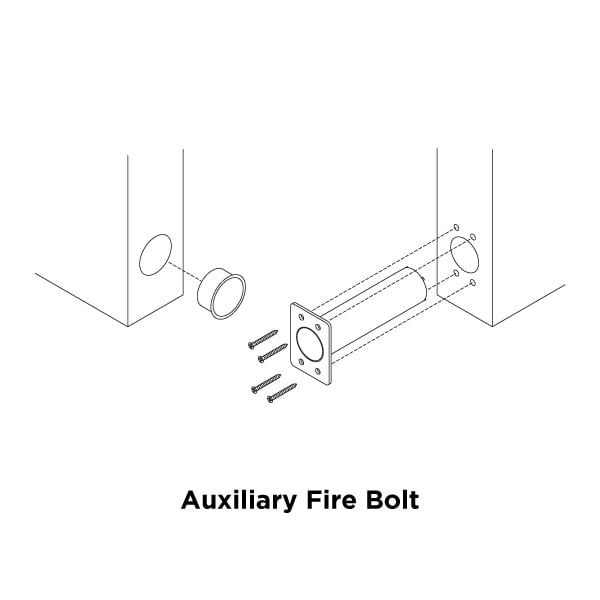

  • Includes Auxiliary Fire Bolt
  • Deadlocking Top Latch Standard
  • All mounting screws are concealed, sheet metal screws and machine screws standard
  • 2-3/4" maximum projection, 2" dogged
  • EO = Exit Only, ANSI Function 01 (25 Series Outside Trim Sold Separately)

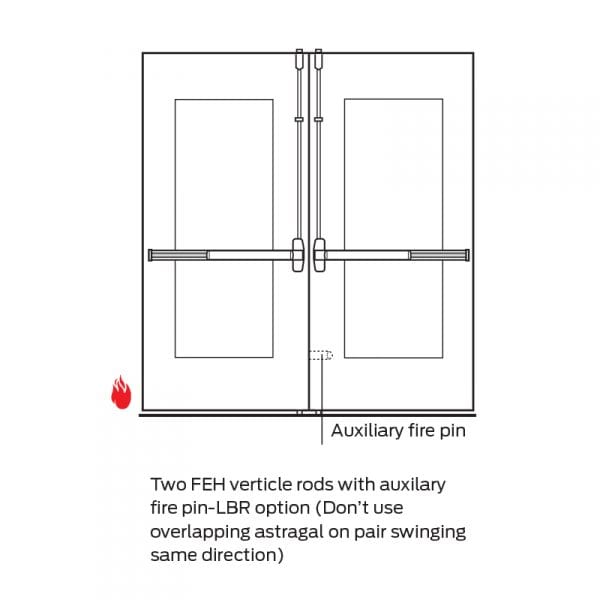

LBR (Less Bottom Rod) devices use a spring-loaded auxiliary latch bolt installed in the lower door edge. When exposed to heat the auxiliary latch bolt releases, keeping the doors in alignment and closed during a fire. UL listed 3 hours on hollow metal doors double egress, 90-minute swinging same direction, and 20-minute wood doors (consult wood door manufacturer). Fits door stiles as narrow as 3-1/2.

2 LBR devices must be ordered for pairs of doors. Single devices must be used in conjunction with an approved automatic or constant latching flush bolt.

ANSI Grade

Certified ANSI A156.3-2001 Grade 1 standards
Brand

Falcon
Buy American Act Compliance

Meets Buy Amercian Act - Made in USA
Device Type

LBR (Less Bottom Rod) Surface Rod Device
Dogging Feature

None
Door Applications

1-3/4″ Thick Metal or Wood Doors
Finish

Satin ChromeStainless Steel
Finishes

US32D (630) Satin Stainless SteelUS26D (626) Satin Chrome
Fire Rating

“A” Label (3 Hr) - 8' x 8'; 90 min. same egress - 8' x 8'
Hand

Both (LHR + RHR) Two Total DevicesRHR (Right Hand Reverse)LHR (Left Hand Reverse)
Handing

Handed (LHR - Left Hand Reverse or RHR - Right Hand Reverse)
Latchbolt

Top Stainless Steel 3/4" throw
Minimum Stile Width

3-1/2"
Projections

2-3/4" maximum 2" dogged
Stile Type

Wide (Standard)
Strike

3788 Top Strike is Surface Applied
Usage

Heavy Duty
