Hager

Hager 3220 Thumbturn x Blank Plate Deadbolt

$41.75
Usually Ships:  3-5 Business Days
  • BHMA Certified ANSI A156.36, Grade 2
  • Inside Turn x Blank Plate Outside
  • ANSI Function E21112

Available Options:

Clear

Product Overview

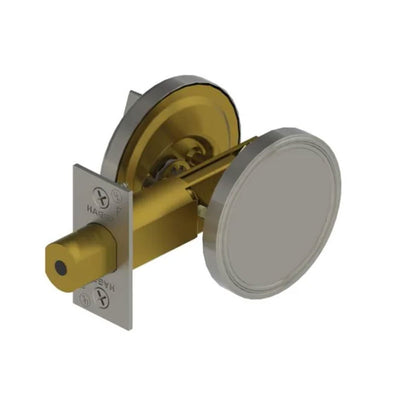

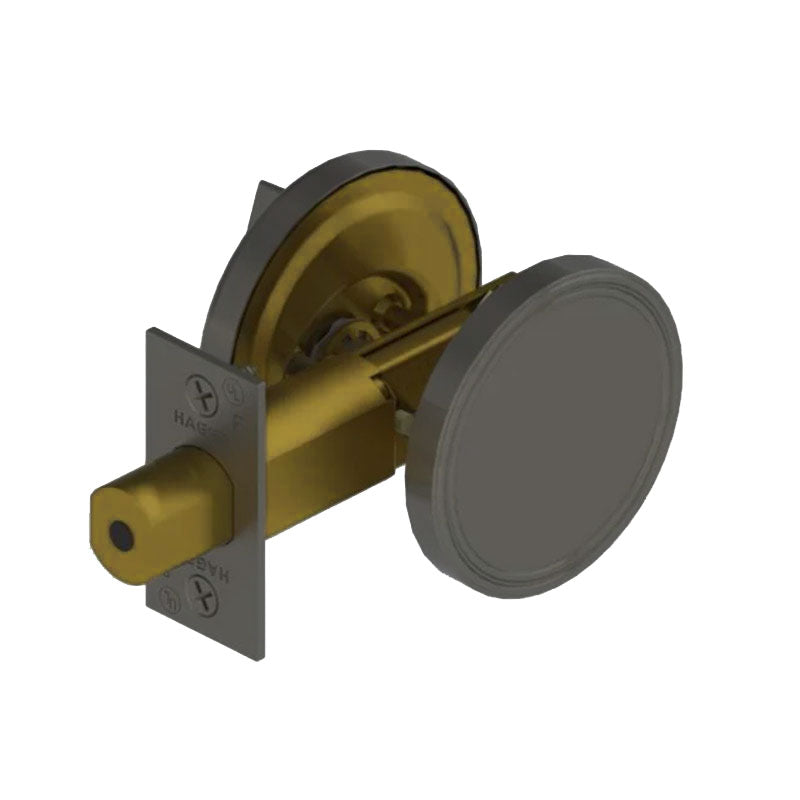

Hager 3220 Thumbturn Only w/ Blank Plate Deadbolt


Hager 3200 Series Grade 2 deadlock provides a perfect combination of value and performance and is the ideal choice of lock for typical commercial applications. The 3200 Series is an economical alternative to Grade 1 when Grade 1 is not required. It is a perfect complement to the 3500 or 2500 Series for extra protection against break-in and is backed by a lifetime warranty.
Thumbturn w/ Blank Plate (no cylinder) - ANSI Function E21112: Deadbolt thrown or retracted by thumbturn only. Outside blank plate. Bolt automatically deadlocks when fully thrown.
Brand

Hager
Finishes

US10B (613) Oil Rubbed Bronze, US26D (626) Satin Chrome, US32D (630) Satin Stainless Steel
Deadbolt Type

Turn Inside x Blank Plate
Usage

Medium Duty
ANSI/BHMA Standard

BHMA Certified ANSI A156.5 Grade 2
Bolt

1" throw bolt, 1-1/8" x 2-1/4" square corner face plate
Backset

2-3/8" to 2-3/4" Adjustable
Strike

1-1/8” x 2-3/4“ square corner
Fire Rating

UL/cUL Listed for all functions up to 3 hours for "A" label single doors
ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code
Door Thickness

1-3/8" to 1-3/4"
Warranty

Limited Lifetime Warranty
