Hager 2510 WTN Passage Lever Set

$57.56

Usually Ships: 1-2 Business Days

Available Options:

Finish

Quantity:

Added to Cart

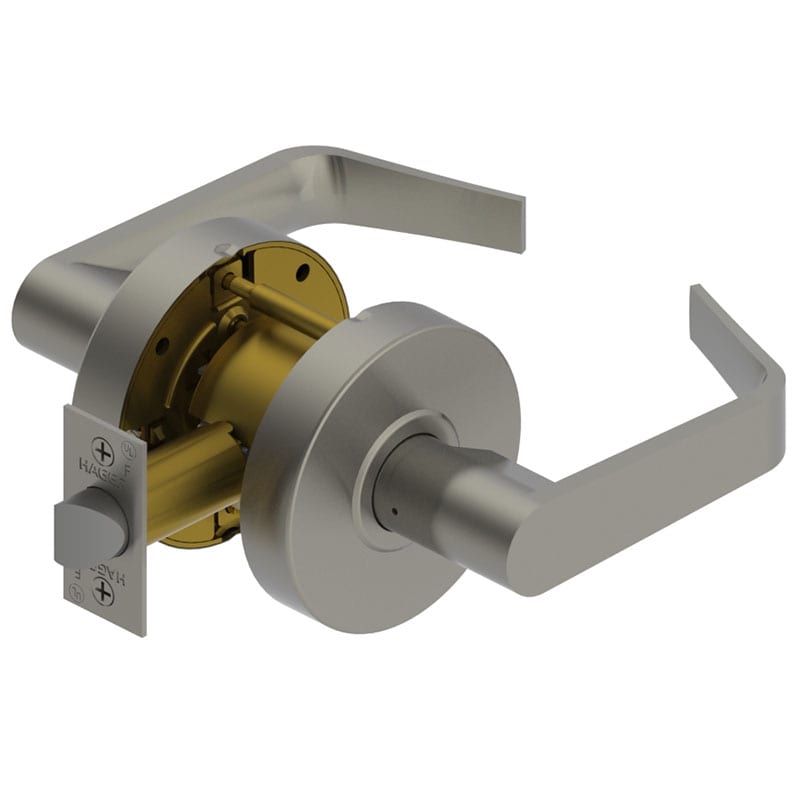

Hager 2510 Passage Lever, WTH Withnell Lever Design

Hager 2500 Series Grade 2 lock is a perfect combination of value and performance and is the ideal choice of lock for typical commercial applications.

Hager 2510 Passage Function (ANSI F75) - Latchbolt operated by lever from either side at all times.

WTN - Withnell lever design
Standard door prep - 2-1/8" diameter (cross bore), latch hole - 1" diameter (edge bore)
No exposed mounting screws

codes

ANSI Grade	Meets BHMA ANSI A156.2 Series 4000 Grade 2
Backset	2-3/4"
Brand	Hager
Door Thickness	1-3/8" to 1-3/4"
Finish	BlackSatin ChromeDark Bronze
Finishes	US26D (626) Satin ChromeBLK - Matte BlackUS10B (613) Oil Rubbed Bronze
Fire Rating	UL/cUL listed up to 3 Hours
Handing	Non-Handed
Latch	1/2" throw - 1-1/8" x 2-1/4" face

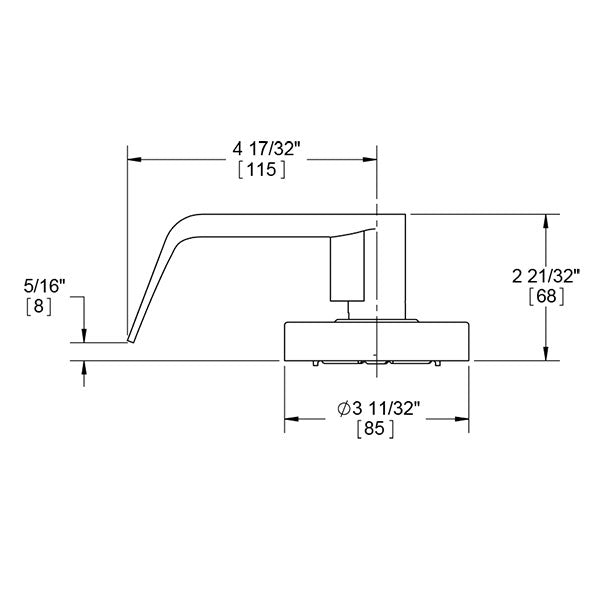

Lever Design	WTN (Withnell)
Lock Function	Passage
Strike	4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Usage	Medium Duty
Warranty	5 Year
