Hager 2553 WTN Entry Lever Lock

$62.45

Usually Ships: 1-2 Business Days

Meets BHMA/ANSI A156.2 Grade 2 standards
ANSI function: F109 - entry
ADA compliant, 3-hour fire-rated

Available Options:

Clear

Finish

Quantity:

Added to Cart

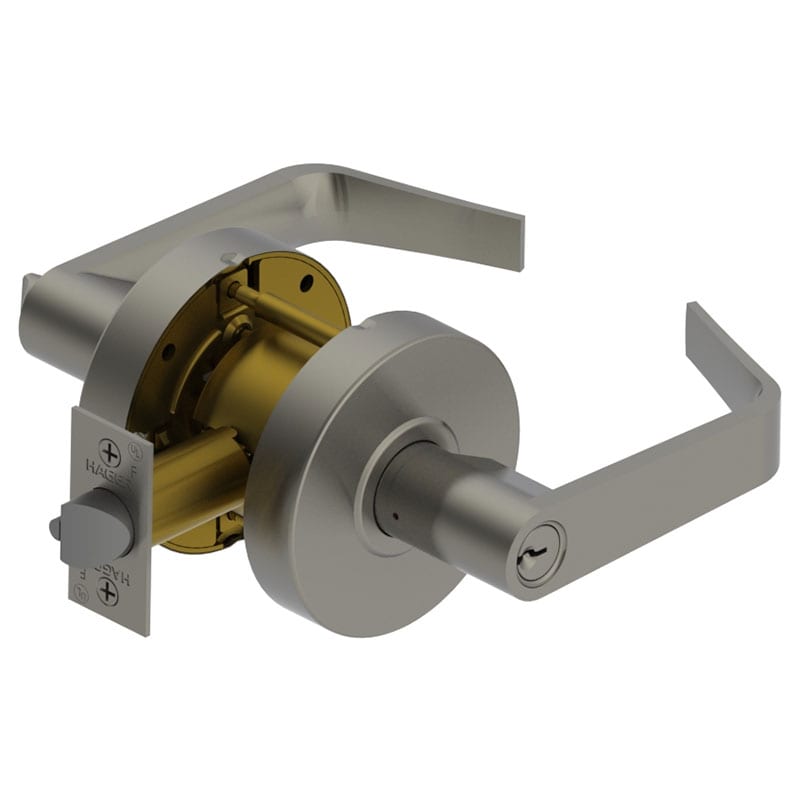

Hager 2553 Entry Lever Lock, WTH Withnell Lever Design

Hager 2500 Series Grade 2 lock is a perfect combination of value and performance and is the ideal choice of lock for typical commercial applications.

Hager 2553 Entry Function (ANSI F109) - Deadlocking latchbolt by lever either side, except when turn button inside locks outside lever. Pushing turn button in locks outside lever, requiring use of key outside to unlock. Turning inside lever unlocks outside lever. Pushing in and turning button locks outside lever, requiring key at all times. Turning inside lever does not unlock outside lever until button is manually turned to unlocked position. Inside lever always free.

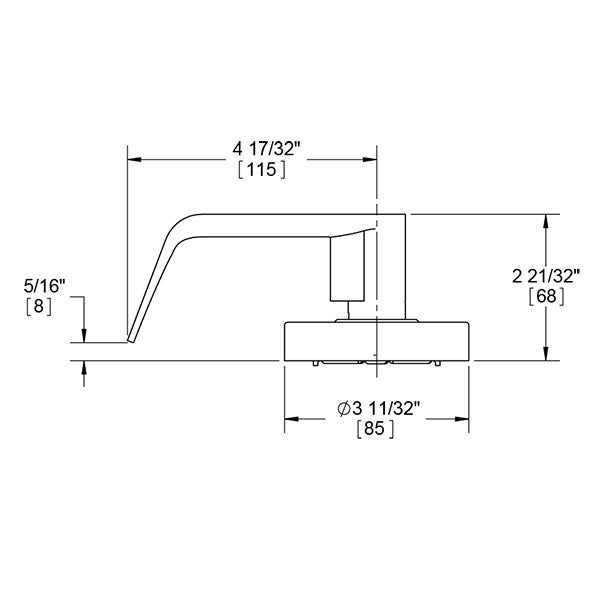

WTN - Withnell lever design
Standard door prep - 2-1/8" diameter (cross bore), latch hole - 1" diameter (edge bore)
No exposed mounting screws

codes

ANSI Grade	Meets BHMA ANSI A156.2 Series 4000 Grade 2
Backset	2-3/4"
Brand	Hager
Cylinder Format	Conventional
Cylinder & Keys	6-pin conventional keyed different with 2 keys
Door Thickness	1-3/8" to 1-3/4"
Finish	Dark BronzeBlackSatin Chrome
Finishes	BLK - Matte BlackUS10B (613) Oil Rubbed BronzeUS26D (626) Satin Chrome
Fire Rating	UL/cUL listed up to 3 Hours
Handing	Non-Handed
Keyway	Schlage C Keyway
Latch	1/2” throw deadlocking - 1-1/8" x 2-1/4" face
Lever Design	WTN (Withnell)
Lock Function	Entry (Entrance)
Strike	4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Usage	Medium Duty
Warranty	5 Year
