Hager 2580 WTN Storeroom Lever Lock

$65.58

Usually Ships: 1-2 Business Days

Meets BHMA/ANSI A156.2 Grade 2 standards
ANSI function: F86 – storeroom
ADA compliant, 3-hour fire-rated

Available Options:

Clear

Finish

Quantity:

Added to Cart

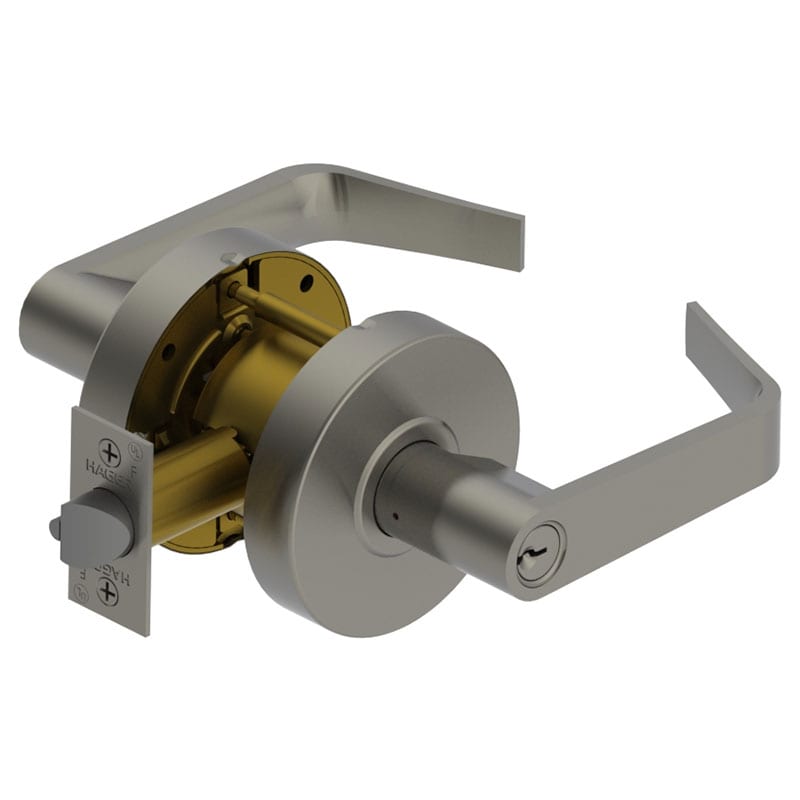

Hager 2580 Storeroom Lever Lock, WTH Withnell Lever Design

Hager 2500 Series Grade 2 lock is a perfect combination of value and performance and is the ideal choice of lock for typical commercial applications.

Hager 2580 Storeroom Function (ANSI F86) - Deadlocking latchbolt operated by key in outside lever, or by operating inside lever. Outside lever is always locked. Inside lever is always unlocked.

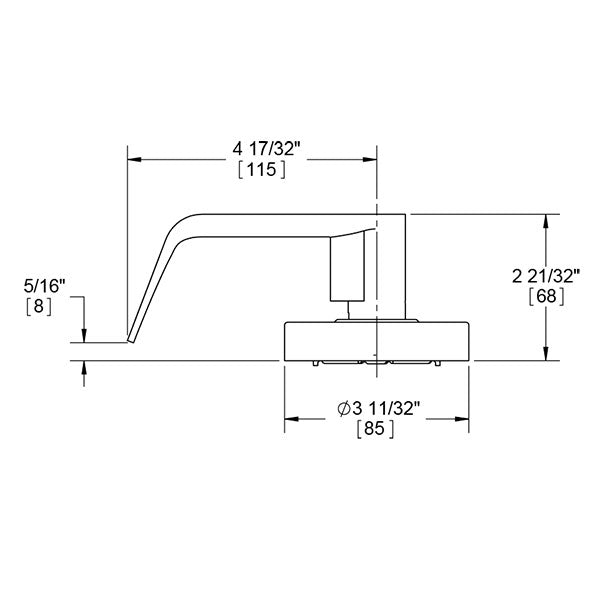

WTN - Withnell lever design
Standard door prep - 2-1/8" diameter (cross bore), latch hole - 1" diameter (edge bore)
No exposed mounting screws

codes

ANSI Grade	Meets BHMA ANSI A156.2 Series 4000 Grade 2
Backset	2-3/4"
Brand	Hager
Cylinder Format	Conventional
Cylinder & Keys	6-pin conventional keyed different with 2 keys
Door Thickness	1-3/8" to 1-3/4"
Finish	Dark BronzeBlackSatin Chrome
Finishes	BLK - Matte BlackUS10B (613) Oil Rubbed BronzeUS26D (626) Satin Chrome
Fire Rating	UL/cUL listed up to 3 Hours
Handing	Non-Handed
Keyway	Schlage C Keyway
Latch	1/2” throw deadlocking - 1-1/8" x 2-1/4" face
Lever Design	WTN (Withnell)
Lock Function	Storeroom
Strike	4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Usage	Medium Duty
Warranty	5 Year
