Falcon

Falcon W101S D (DANE) Passage Lever

$65.73
Usually Ships:  1-2 Business Days
  • ANSI/BHMA A156.2, Grade 2 certified
  • Both levers always unlocked, keyless
  • ADA compliant, 3-hour fire-rated

Available Options:

Clear

Product Overview

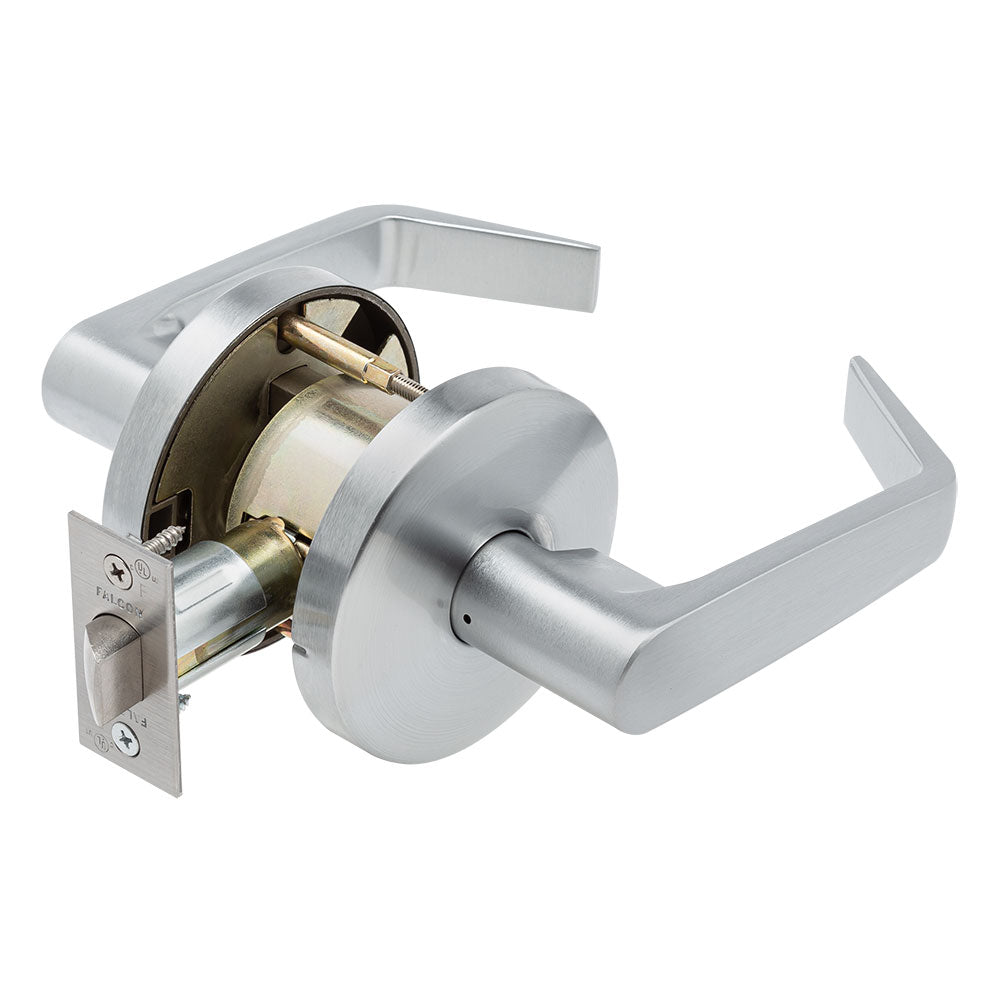

Falcon W101S Grade 2 Passage Cylindrical Lock, Non-Keyed, Dane Lever, Standard Rose

When an affordable passage lever set is needed for low to medium traffic doorways in office, government, retail, industrial or multi-family applications, the W101 fits perfectly. The Falcon W Series offers a quality product at a value price, and is backed by one of the best names in the business - Allegion.

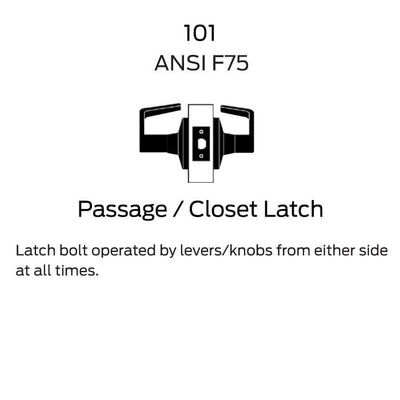

ANSI Function F75 - Keyless - Latch bolt by levers at all times.

  • Non-handed for easy field assembly
  • Heavy-duty springs for better lever return and to prevent sagging
  • Manufactured to Allegion’s industry-leading quality standards

codes

ANSI/BHMA Standard

Tested and certified under ANSI/BHMA A156.2 Grade 2
Backset

2-3/4"
Brand

Falcon
Door Thickness

1-3/8" to 1-3/4"
Finish

BlackDark BronzeAged BronzeBright ChromeBright BrassSatin NickelSatin BrassSatin Chrome
Finishes

619 Satin Nickel613 Oil Rubbed Bronze605 Bright Brass643e Aged Bronze622 Matte Black626 Satin Chrome625 Bright Chrome606 Satin Brass
Fire Rating

UL/cUL listed up to 3 Hours - UL symbol on the latch front
Handing

Non-Handed
Latch

1/2" throw - 1-1/8" x 2-1/4" face
Lever Design

D (Dane)
Lock Function

Passage
Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Usage

Medium Duty
Warranty

10 Year Limited
