McKinney

McKinney 8007 Double Acting Gravity Pivot Hinge

$145.35
Usually Ships:  3-5 Business Days
  • Recommended for use on double-acting saloon doors
  • Mounted to top and bottom of each door
  • Provides frictionless, long-lasting service

Available Options:

Clear

Product Overview

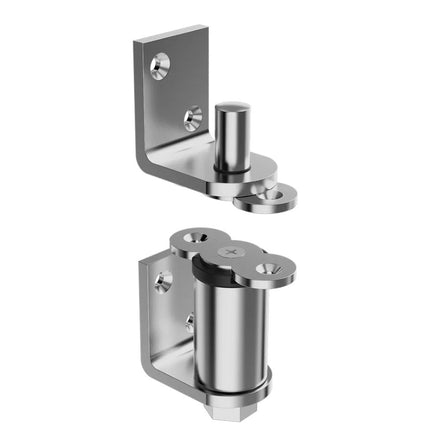

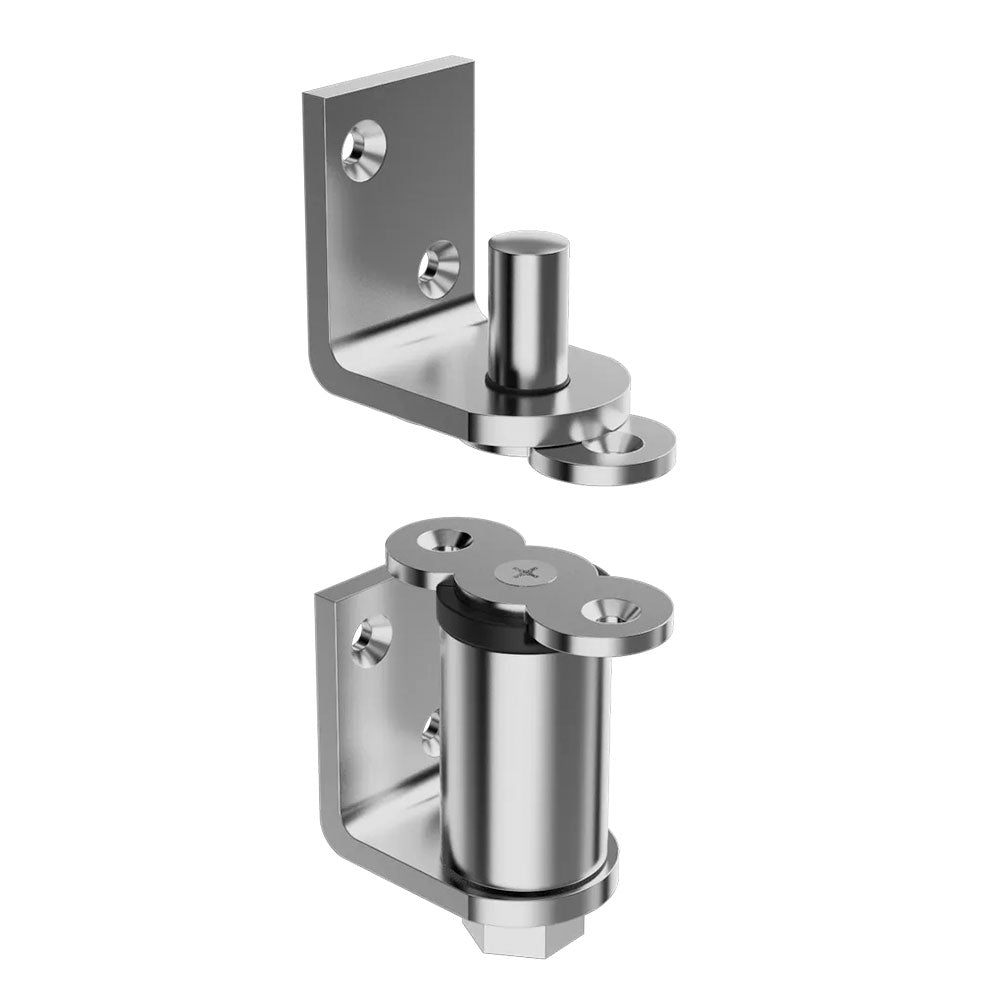

McKinney 8007 Double Acting Gravity Pivot Hinge


The 8007 (no hold open) and H8007 (90° hold open in either direction) double-acting gravity pivot hinges provide frictionless, long-lasting service when used on double-acting wood saloon doors.
Features
  • Recommended for use on double-acting saloon doors
  • Mounted to top and bottom of each door
  • Features a unique ball bearing pivot riding on a hardened steel cam providing frictionless long lasting service
  • 90° hold open feature in either direction (H8007)
  • Attachments are surface-applied to the jamb

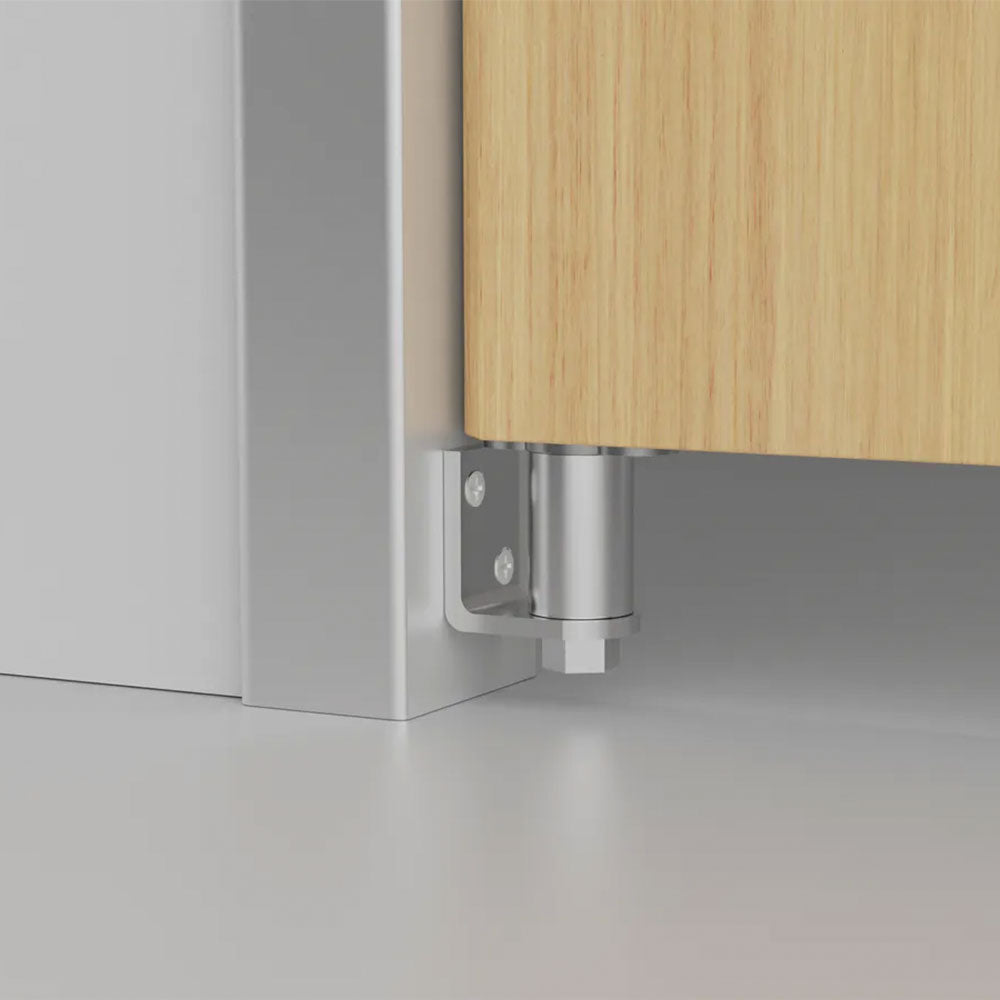

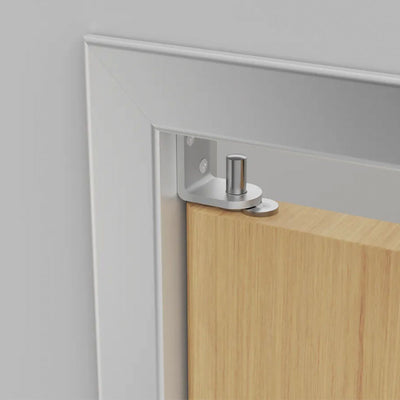

  • Top socket and box may be surface applied or mortised into the top of the door
  • Non-handed
  • Door weight closes the door – no spring
Benefits
  • Provides frictionless, long-lasting service
  • Double acting
  • Easy to install
  • Hold-open feature that keeps door at a 90-degree angle
  • Ideal for heavy-duty applications and high-traffic areas
  • Constructed from heavy-duty commercial grade steel
  • US26D finish only
Specifications
  • Minimum Door Thickness: 7/8"
  • Maximum Door Thickness: 1-5/8"
  • Maximum Door Weight: 50lbs.
  • Maximum Door Width: 30"
