NGP (National Guard)

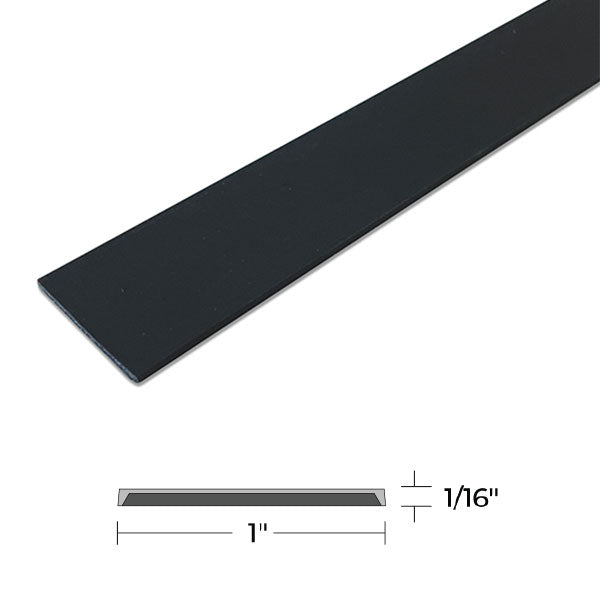

NGP (National Guard) 9200 Self-Adhesive Intumescent Gap Solution for Excessive Fire Door and Frame Clearances, 20 Minute Rated

$171.49
Usually Ships:  5-10 Business Days

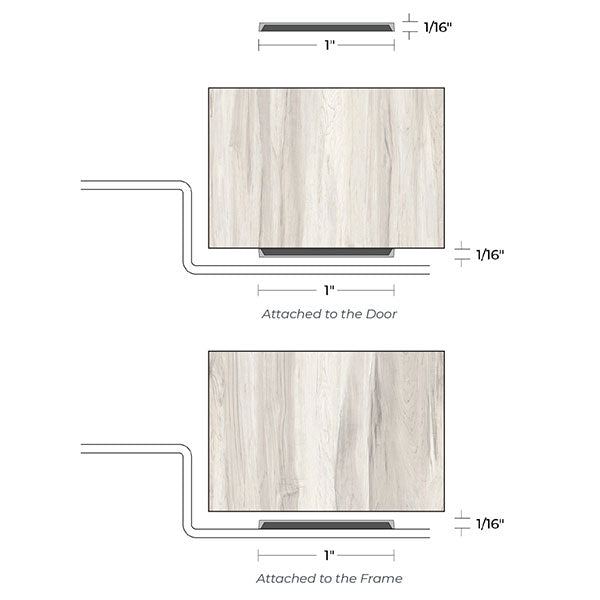

  • Applied to the door frame (head and/or jambs)
  • UL Certified for gaps measuring over 1/8", and up to 3/8"
  • Helps bring fire doors back into compliance

Available Options:

Clear

Product Overview

NGP 9200 Gap Solution for Excessive Fire Door and Frame Clearances - 20 minute

  • UL Certified Miscellaneous Fire Door Accessory for Excessive Door and Frame Clearances, Measuring up to 5/16"
  • 20-Minute Rated UL10B and UL10C Wood or Hollow Metal Fire Doors
  • An NGP Strike Shim 9275 or 9225 is also Re­quired for Proper Latchbolt Engagement
  • NGP Intumescent Materials are Formulated to Expand at 275ºF up to 20 Times Their Original Thickness; Completely Sealing the Gap Around and Between Doors During a Fire
  • Modified Acrylic Pressure-Sensitive Adhesive Protected by Release Liner
  • Provides High Initial Adhesion and Long-Term Holding Power for Permanent Mounting in Exteri­or or Interior Locations
  • Resistant to Aging, Weathering, UV Radiation, Water, Detergent, Alcohol and the Influence of Chemicals
  • End Use Temperature Range of Adhesive, Long-Term Exposure -30°F up to 250°F
  • Shelf Life of Adhesive Prior to Installation is One Year When Stored at 75°F and 50% Relative Humidity or Less
POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal and Wood fire doors rated up to 20 minute with excessive door and frame clearances, measuring up to 5/16
CERTIFIED by UL to ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal and Wood fire doors rated up to 20 minute with excessive door and frame clearances, measuring up to 5/16
made-in-usa

Brand

NGP (National Guard)
Finish

Charcoal, Gray
Size

108", 36", 48", 84", 96"
Fire Rating

CERTIFIED by UL to ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal and Wood fire doors rated up to 20 minutes
