NGP (National Guard)

NGP (National Guard) L-FRA100-RD Round Vision Lite Frame for 3/16″, 1/4″ or 5/16″ Glass, 1-3/4″ Thick Door

$289.28
Usually Ships:  10-20 Business Days
  • 18-Gauge Steel Circular Frame
  • For 3/16″, 1/4″ or 5/16″ Thick Glass (Not Included)
  • For 1-3/4″ Thick Steel or Wood Doors

Available Options:

Clear

Product Overview

NGP L-FRA100-RD Round Lite Kit Frame for 1-3/4″ Thick Doors

Designed for use with 1-3/4" thick doors.

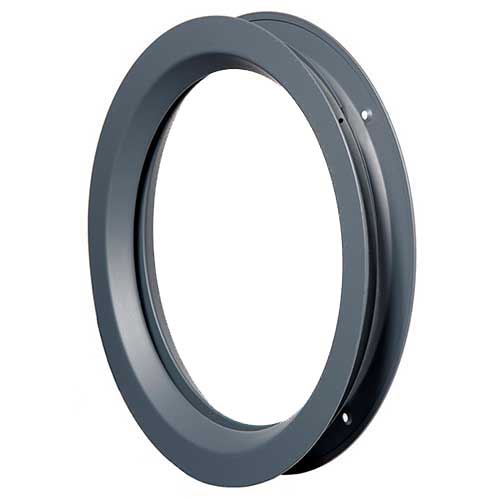

  • Circular vision lite frame (no glass included)
  • Glass / Glazing Tape Not Included

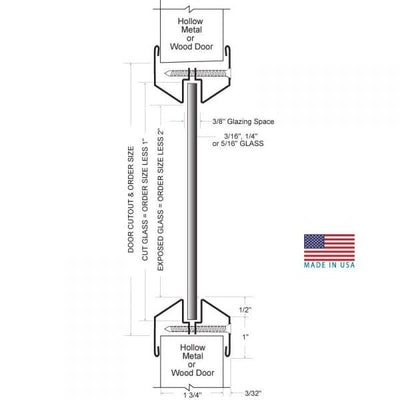

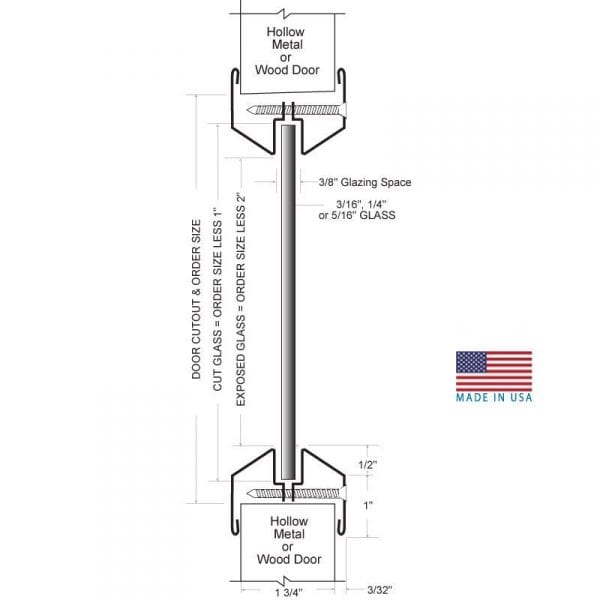

  • Order size equal to cutout size  (12", 18" or 24" Diameter)
  • Glass size is 1" under cutout size, Visible glass is 2" under
  • Countersunk Mounting Screw-Holes

Brand

NGP (National Guard)
Door Thickness

1-3/4"
Finish

WhiteGray PrimedBlackDark Bronze
Finishes

DKB - Dark BronzeMBL - Matte BlackW - WhiteGPZ - Gray Primer
Fire Rating

UL Certified – Up to 3 Hours in Metal Doors and 90 Minutes in Wood Doors
Frame Construction

18 Gauge Cold Rolled Steel
Frame Fasteners

#8 x 1-3/4" Phillips head SMS
Glass Thickness

3/16" 1/4" or 5/16"
Order Size

24" Round18" Round12" Round
