PDQ GT199A Electrified Storeroom Lever Lock

$463.68
This item ships FREE! Usually Ships:  2-3 Business Days
  • Heavy-Duty, ANSI/BHMA A156.2 Grade 1 certified
  • Field-changeable from FAIL Secure to FAIL SAFE mode
  • Accepts both AC and DC input voltage

Available Options:

Clear

Product Overview

PDQ GT199A Lever Lockset, Electrified Storeroom, Heavy-Duty, Grade-1, 2-3/4" Backset, ASA Strike, Schlage C Keyway


Cycle tested to over 3 times the BHMA standards, the GT Series is built to withstand the toughest of applications. The 41-degree lever rotation provides reduced torque, lengthening the lifespan of the lock significantly. This proves PDQ’s GT Series to be a great solution for your high-traffic areas.
Key outside retracts latchbolt. Latchbolt operated by lever from inside. Auxiliary latch deadlocks latchbolt. Fail safe–latchbolt operated by lever from outside unless electrically locked. Fail secure–latchbolt operated by lever from outside when electrically unlocked. Accepts 12VDC@.6A, 12VAC@.6A, 24VDC@.3A and 24VAC@.3A. Furnished with 6” wire leads.
Motor drive factory tested to over1.4 million cycles (1.4 times the ANSI/BHMA grade 1 std)
  • Heavy duty diecast chassis with machined billet steel spindle
  • 13-Gauge steel anti-rotation plate installed on secure side

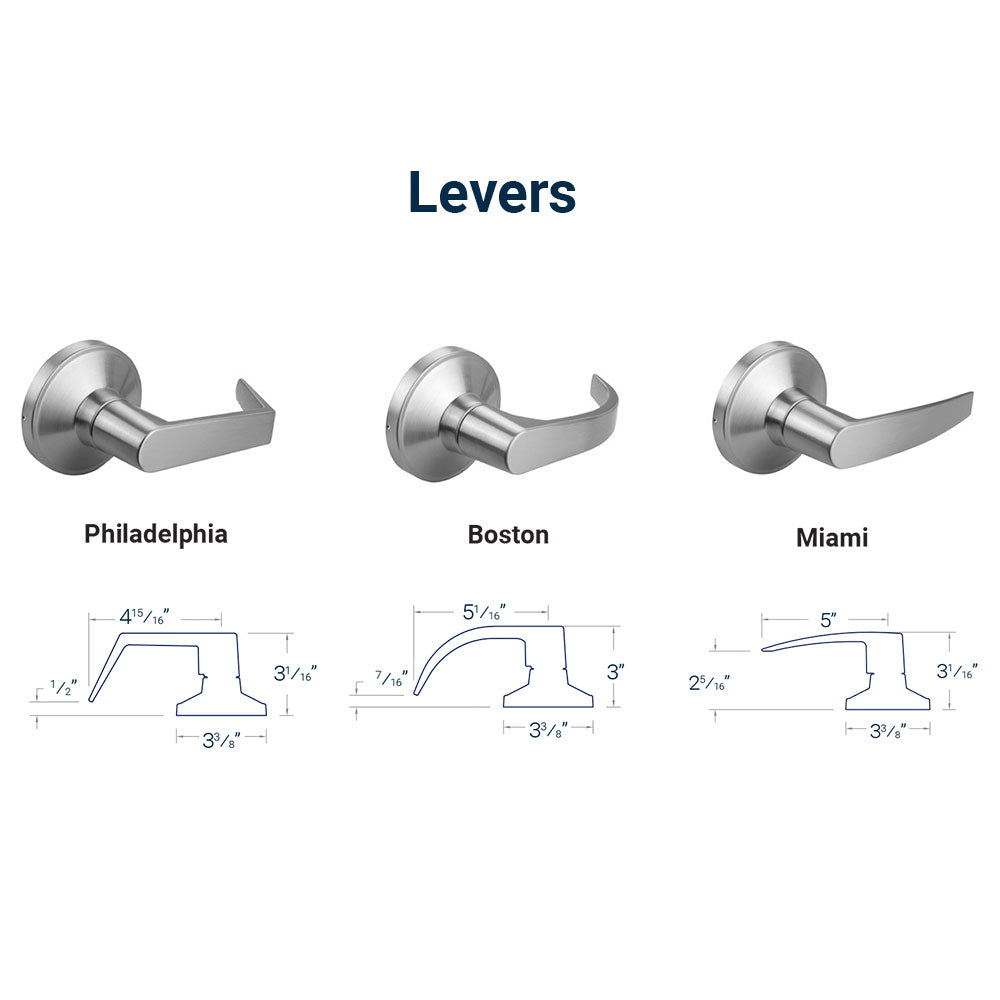

  • *Choose from three lever styles: Philadelphia (PHL), Boston (BSN), or Miami (MIA)
  • UL/CUL 10C listed 3-hour fire door, for single doors up to 4’ x 8’
  • Certified to ANSI/BHMA A156.2 Grade 1 standards
  • Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings

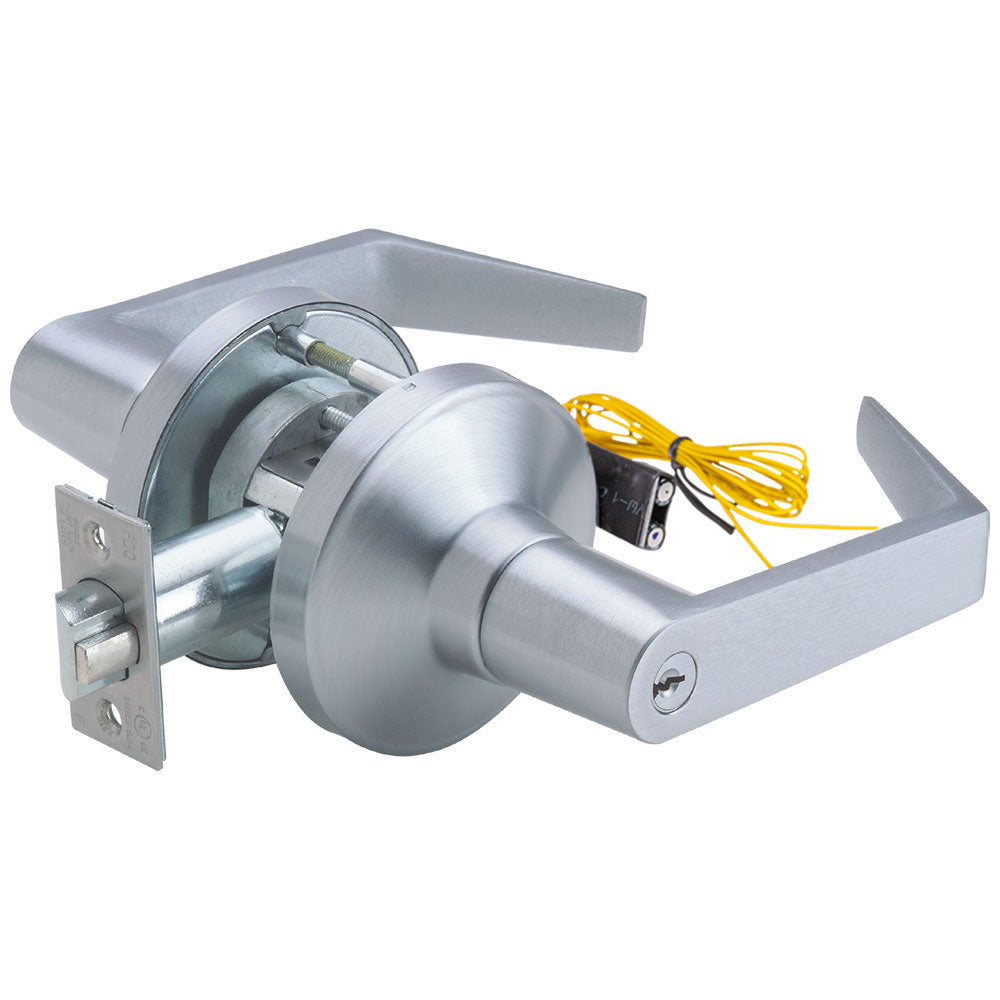

* PHL (Philadelphia) Lever Design Shown
Electrical Specifications
Input voltage: 12-24VDC or 12-24VAC.
• Max In-rush current: 1.0A.
• Standby current:
– 12VAC: 12mA.
– 24VAC: 10mA.
– 12VDC: 3mA.
– 24VDC: 5mA.
Note: Operating voltage at ± 10% of rated voltage.
Typical Applications
  • Computer Rooms
  • High Security Areas
  • Pharmacies
  • Stairwell Towers
  • Tenant Spaces
