Schlage ND80PDEU RHO (Rhodes) Storeroom Lever Lock with Cylinder Electrically Unlocked (Fail Secure)

$670.52
This item ships FREE! Usually Ships:  1-2 Business Days
  • Heavy-Duty, ANSI/BHMA Certified Grade 1
  • Outside always locked, entry by key or electric current only
  • 12-24V DC, fail secure (power fail locks outside lever)

Available Options:

Clear

Product Overview

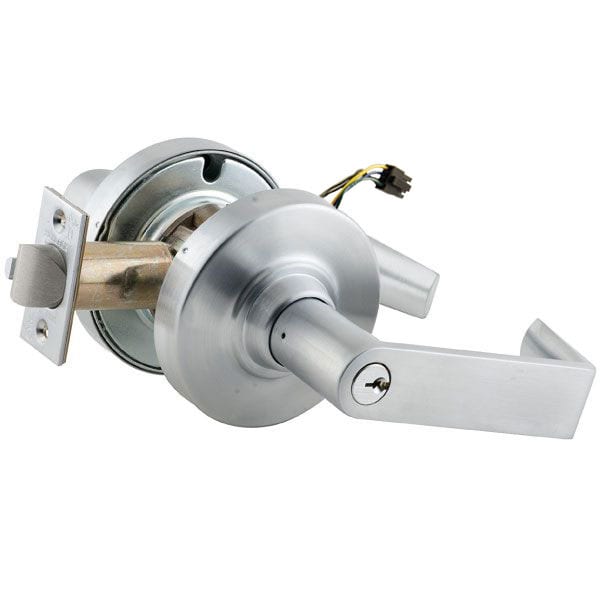

Schlage ND80PDEU RHO Grade-1 Cylindrical Lever Lock, Storeroom Function, Cylinder Electrically Unlocked (Fail Secure), Rhodes Lever

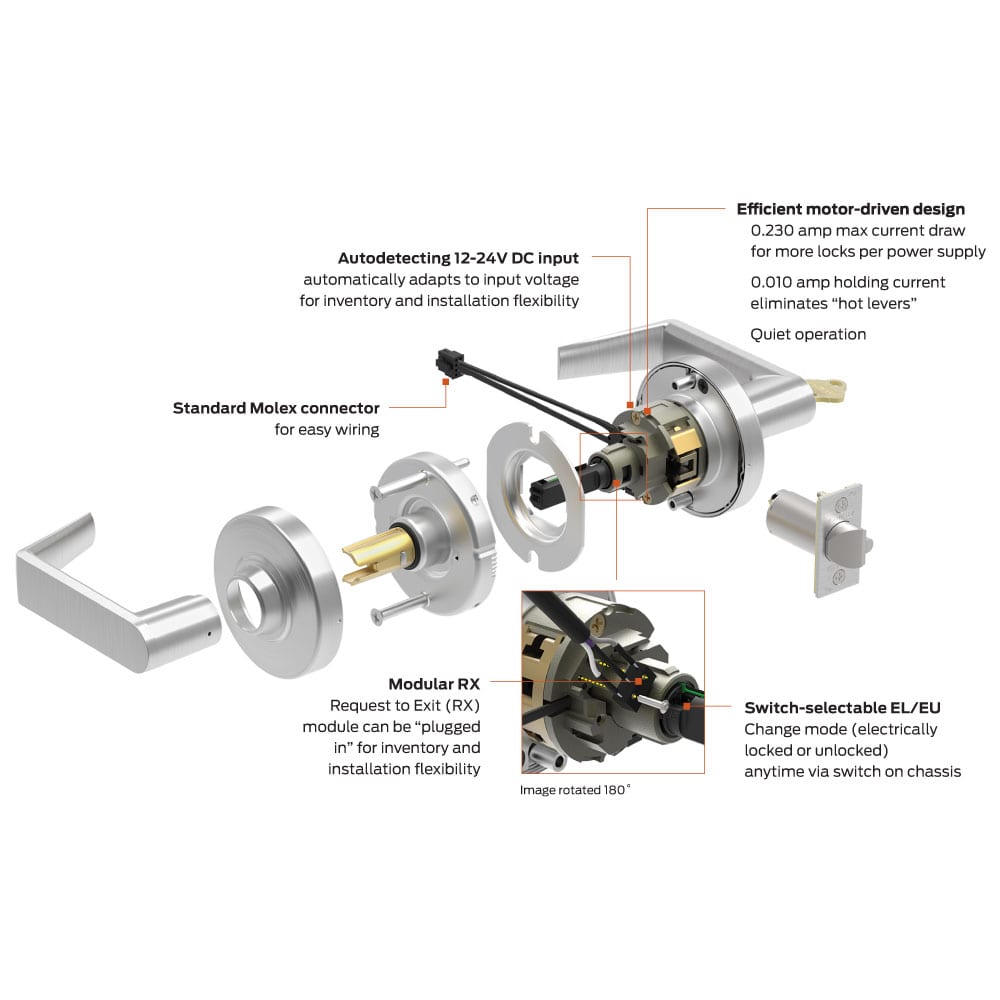

The Schlage electrified ND Grade 1 Cylindrical lock offers offer superior energy efficiency and flexibility in wired electrified applications. The Schlage electrified ND Grade 1 Cylindrical lock has been completely redesigned to offer superior energy efficiency and flexibility in wired electrified applications. Wired electrified locks compliment the mechanical offering and are typically incorporated into a wired access control system or used independently with a remote access switch (e.g. switch behind a receptionist desk).

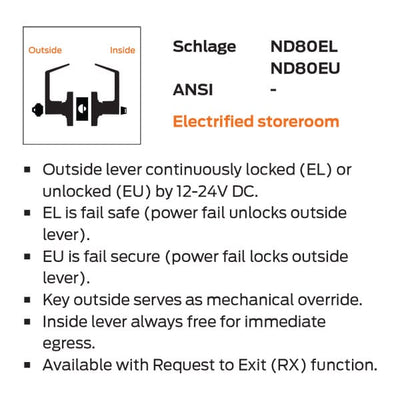

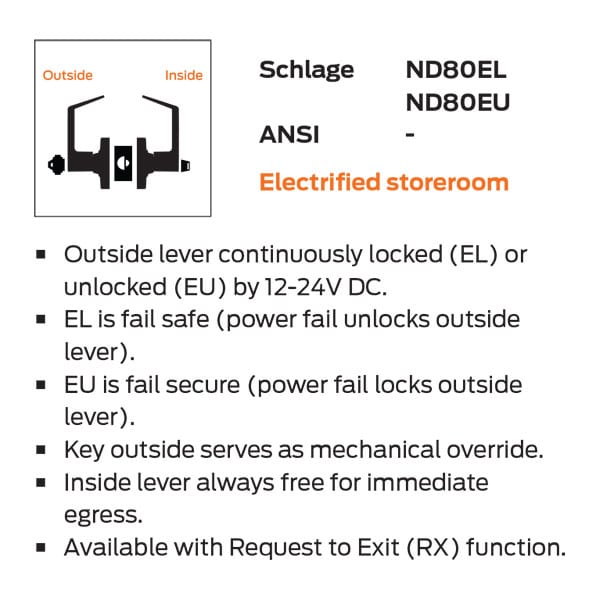

ND80PDEU: Electrically unlocking/ fail secure - Outside lever continuously locked until unlocked by key or electric current. Fail secure (power fail locks outsidelever). Auxiliary latch deadlocks latchbolt when door is closed. Inside lever always free for immediate exit.

  • Exceeds ANSI A156.2 Series 4000 Grade 1 requirements
  • UL listed for 3-hour fire door
  • Universal Input Voltage - autodetects 12 through 24V DC for installation flexibility
  • Electrical requirements: 24V AC, .35 amps or 24V DC, .15 amps
  • Operating Temperature: Maximum +151 1/2F, Minimum -31 1/2F

The electrified ND is ideally used in:

  • High traffic areas, where line power ensures continuous operation
  • New construction, where electrified door prep, hinges, and wiring can easily be incorporated into the building

ANSI/BHMA Standard

Meets and Exceeds ANSI/BHMA A156.2 Series 4000 Grade 1
Backset

2-3/4"
Brand

Schlage
Cylinder Format

Conventional
Cylinder & Keys

6-pin conventional keyed different with 2 keys
Door Thickness

1-3/4"
Finish

BlackDark BronzeBright ChromeBright BrassSatin BronzeSatin BrassSatin ChromeSatin Nickel
Finishes

625 Bright Chrome622 Matte Black626 Satin Chrome619 Satin Nickel613 Oil Rubbed Bronze606 Satin Brass612 Satin Bronze605 Bright Brass
Fire Rating

UL/cUL listed up to 3 Hours (A Label) - UL symbol on the latch front
Handing

Non-Handed
Keyway

Schlage S123 KeywaySchlage C Keyway
Latch

1/2” throw deadlocking - 1-1/8" x 2-1/4" face

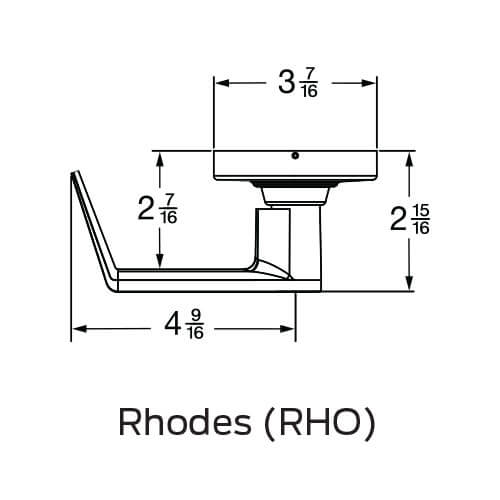

Lever Design

RHO (Rhodes)
Lock Function

Electrified Storeroom
Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Usage

Heavy Duty
