Schlage

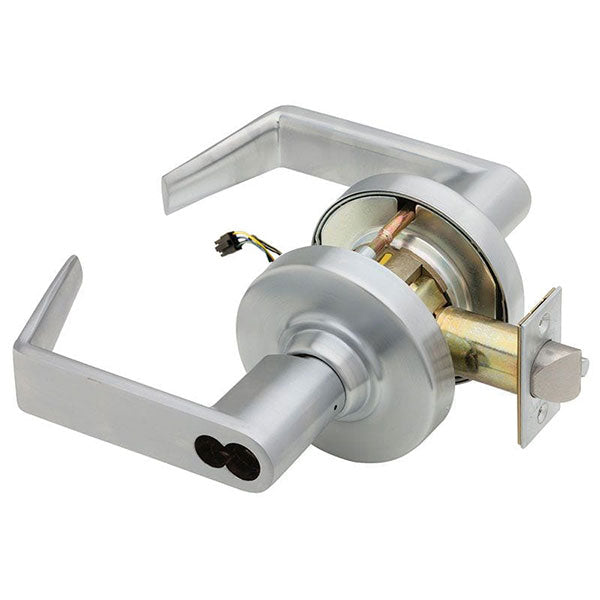

Schlage ND80JDEU RHO (Rhodes) Storeroom Lever Lock, FSIC Prep, Electrically Unlocked (Fail Secure)

$637.92
This item ships FREE! Usually Ships:  1-2 Business Days
  • Heavy-Duty, ANSI/BHMA Certified Grade 1
  • Outside always locked - Entry by key or electric current only
  • Prepped for Interchangeable Core (FSIC Core Sold Separately)

Available Options:

Clear

Product Overview

Schlage ND80JDEU RHO Grade 1 Electrified Cylindrical Lock, Storeroom Function, 12-24V DC, Fail Secure, 2-3/4" Backset, Rhodes Lever, LFIC Prep

The Schlage electrified ND Grade 1 Cylindrical lock offers offer superior energy efficiency and flexibility in wired electrified applications. The Schlage electrified ND Grade 1 Cylindrical lock has been completely redesigned to offer superior energy efficiency and flexibility in wired electrified applications. Wired electrified locks compliment the mechanical offering and are typically incorporated into a wired access control system or used independently with a remote access switch (e.g. switch behind a receptionist desk).

Interchangeable core users can enjoy the convenience of fast rekeying without having to disassemble the lock. This feature is very useful in applications where a high frequency of core changes are needed.

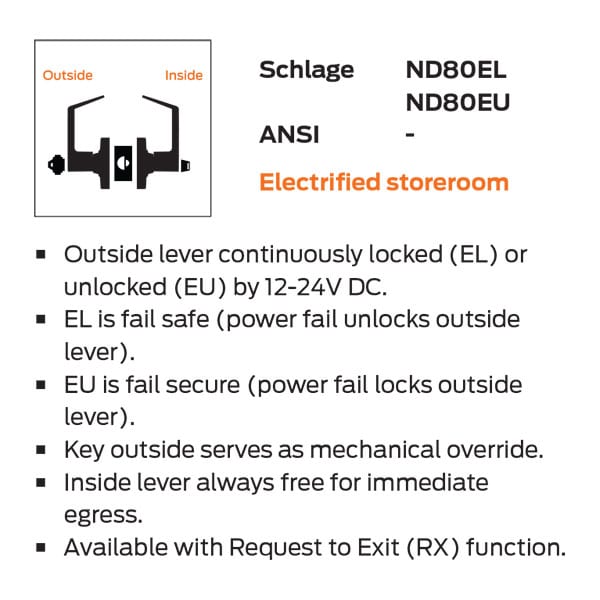

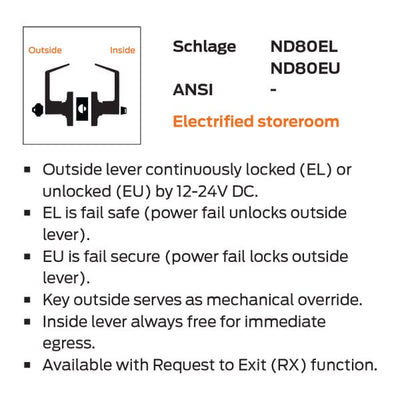

ND80JDEU: Electrically unlocking/ fail secure - Outside lever continuously locked until unlocked by key or electric current • Auxiliary latch deadlocks latchbolt when door is closed • Inside lever always free for immediate exit.

23-030 Full Size Interchangeable Core Sold Separately

  • Exceeds ANSI A156.2 Series 4000 Grade 1 requirements
  • UL listed for 3-hour fire door
  • Universal Input Voltage - autodetects 12 through 24V DC for installation flexibility
  • Electrical requirements: 24V AC, .35 amps or 24V DC, .15 amps
  • Operating Temperature: Maximum +151 1/2F, Minimum -31 1/2F

The electrified ND is ideally used in:

  • High traffic areas, where line power ensures continuous operation
  • New construction, where electrified door prep, hinges, and wiring can easily be incorporated into the building

ANSI/BHMA Standard

Meets and Exceeds ANSI/BHMA A156.2 Series 4000 Grade 1
Backset

2-3/4"
Brand

Schlage
Cylinder Format

Full Size Interchangeable Core (FSIC)
Door Thickness

1-3/4"
Finish

Satin Chrome
Finishes

626 Satin Chrome
Fire Rating

UL/cUL listed up to 3 Hours (A Label) - UL symbol on the latch front
Handing

Non-Handed
Latch

1/2” throw deadlocking - 1-1/8" x 2-1/4" face

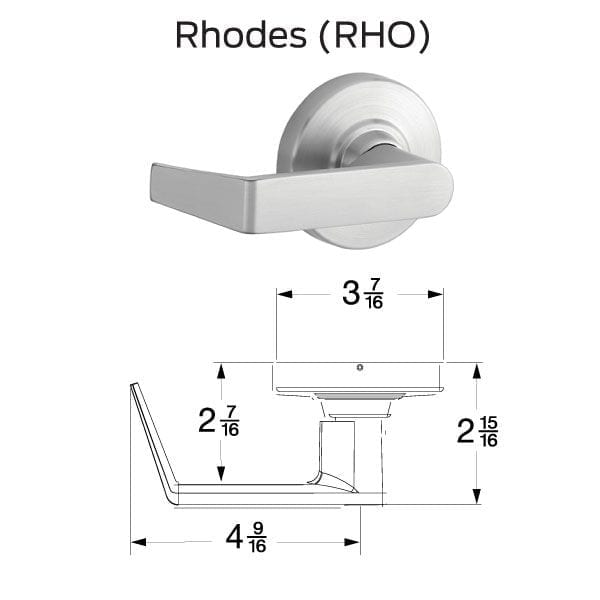

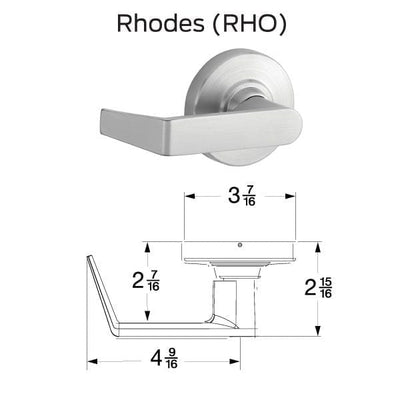

Lever Design

RHO (Rhodes)
Lock Function

Electrified Storeroom
Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Usage

Heavy Duty
Schlage_ND_Series_Standard_Installation_Instructions_111531_manf_after_1-31-2017 Schlage_ND_Series_Electrified_Functions_Install_Instructions How to Install Von Duprin 98/99 Rim Exit Device
