Pemko

Pemko PemkoMatic PSLIDE Low Energy Automatic Sliding Door Operator

$2,476.99
This item ships FREE! Usually Ships:  5-10 Business Days
  • For use with barn doors and pocket doors
  • Designed for smooth and silent door movement
  • Ideal for new installations as well as retrofitting

Available Options:

Clear

Product Overview

Pemko PemkoMatic PSLIDE Low Energy Automatic Sliding Door Operator


Effortless Access with Sliding Door Automation

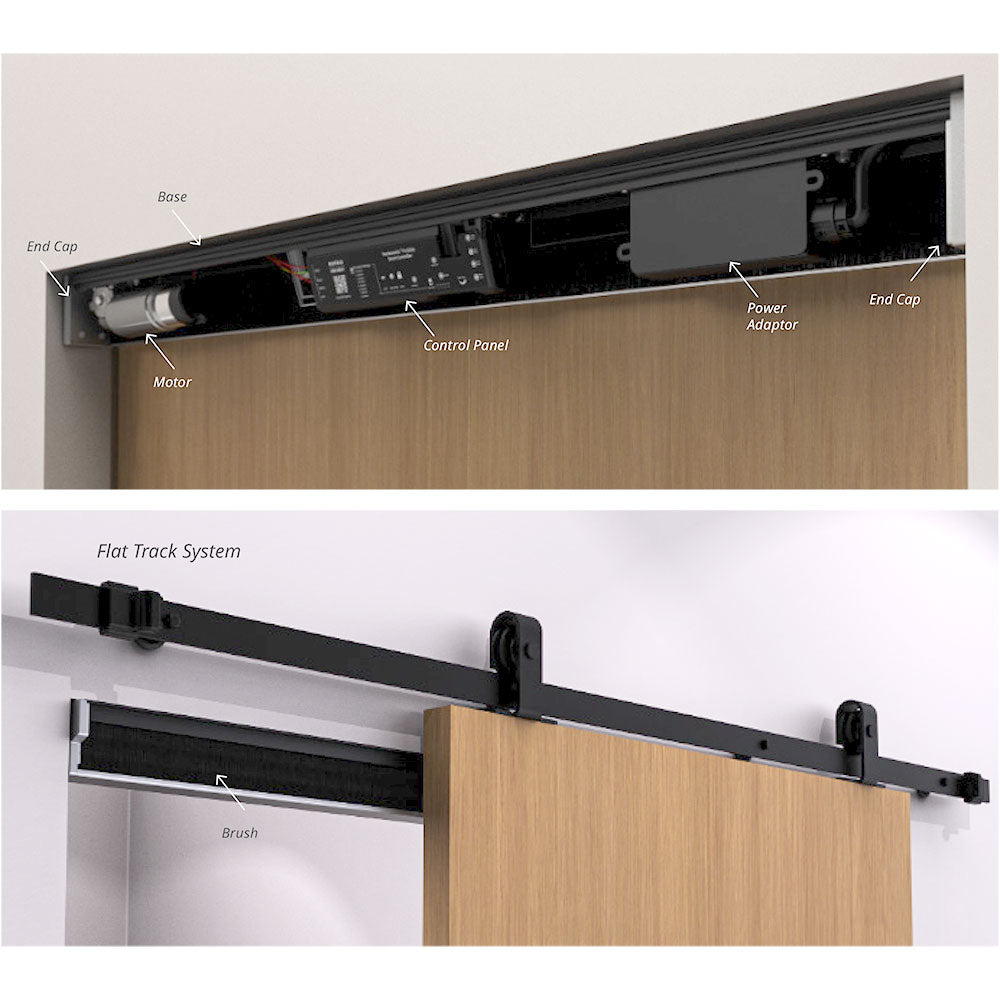

The PemkoMatic™ PSLIDE low energy automatic door operating system offers versatile electromechanical solutions for manual sliding doors, featuring convenient multi-access options including a wave-to-open sensor, push button, or keypad. Designed to fit seamlessly with both pocket and sliding doors, it is ideal for new installations as well as retrofitting existing openings. The system features a sleek cover, combining functionality with a clean, aesthetically pleasing design.
Features
  • Can be trimmed to fit doors smaller than 36" wide for precise customization
  • Supports door widths up to the maximum door weight capacity
  • Two 20" tracks; additional tracks are needed for doors wider than 40"
  • Optional adapter bracket available for non-header installations
  • Recess into the wall for full-opening width access
  • Field reversible (left-hand supplied)
  • Has been tested to industry standards for cycle testing: Tested over 1 million cycles (in AU) - Tested over 100,000 cycles (typical certification)
  • Sliding door types: barn door and pocket doors
  • Fasteners, allen key, and small screwdriver included
Benefits
  • Customizable Settings: Users can adjust the system according to their specific security and accessibility needs
  • Quiet Operation: Designed for smooth and silent door movement, ideal for residential and commercial settings
  • Durable Construction: Built to withstand regular use while maintaining functionality and security
  • User-Friendly Interface: Easy-to-use controls for operation and management of door modes
  • Multiple Access Options: Access the door using a wave sensor, a numeric keypad, or a push button
  • Open Time Adjustability: Can be adjusted, 0-24 seconds, via dial under the control panel
  • Customizable DIP Switches: Power level for lightweight or heavy doors, slam-shut functionality, beeper alerts
Specifications
  • ADA Compliant: Yes
  • Door Type: Barn Door, Pocket Door
  • EPD: No
  • Hold Open Time: 0-24 seconds
  • HPD: No
  • Maximum Door Weight: 330lbs.
  • Mounting Location: Face/Soffit Mount, Under Header
  • Overall Height: 3"
  • Overall Length: 36"
  • Overall Width: 2 1/2"
  • Track Length: 20"
  • Track Material: Plastic
  • Traffic Rating: Moderate to High Traffic
  • Voltage Input: 120v AC
Certifications
  • FCC Part 15 Compliant
  • Americans with Disabilities Act (ADA) Compliant
  • UL 325 Listed
  • Tested to ANSI A156.38, Low Energy Power Operated Sliding and Folding Doors

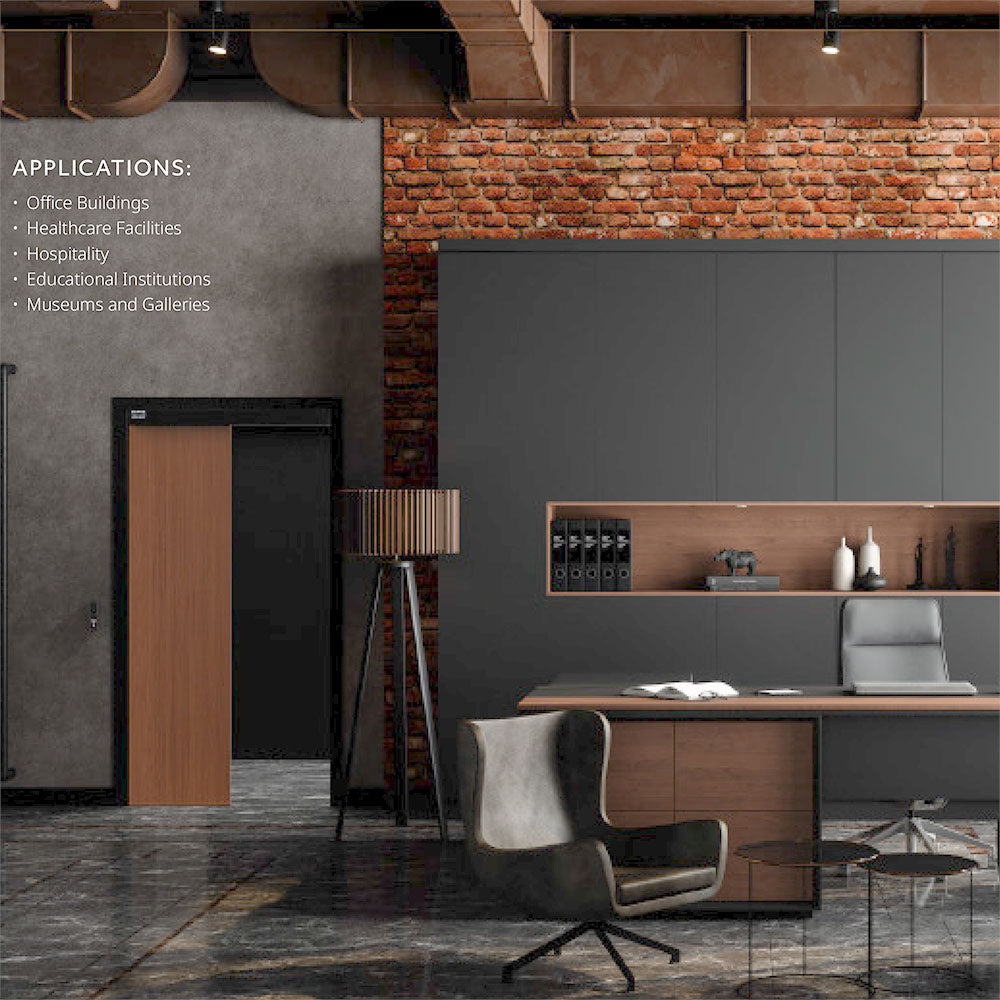

Applications
  • Office Buildings
  • Healthcare Facilities
  • Hospitality
  • Educational Institutions
  • Museums and Galleries
