Rockwood

Rockwood LT-B1 Galvannealed Vision Lite Frame for 1/4" Glass, 1-3/4" Thick Door

$77.22
Usually Ships:  1-2 Business Days
  • 20 gauge galvannealed steel frame
  • For 1/4″ thick glass (sold separately)
  • For use with 1-3/4″ thick steel or wood doors

Available Options:

Clear

Product Overview

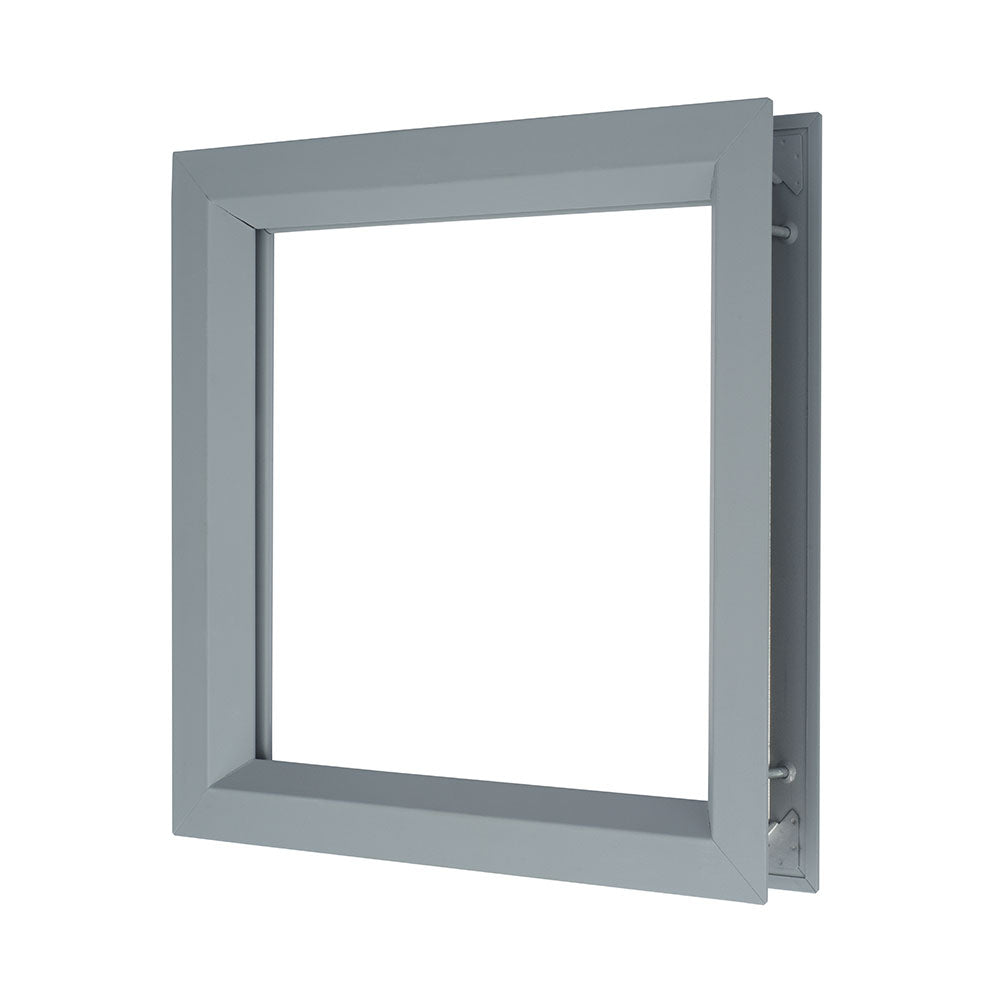

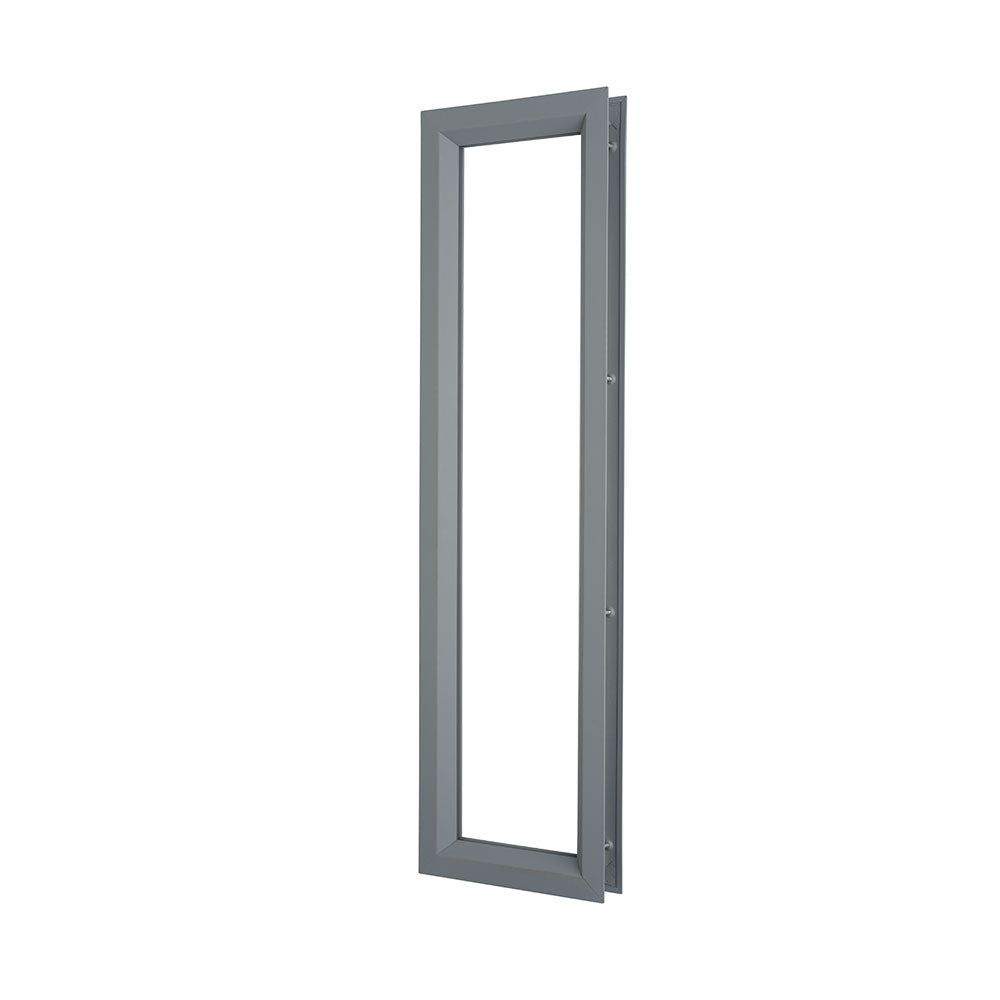

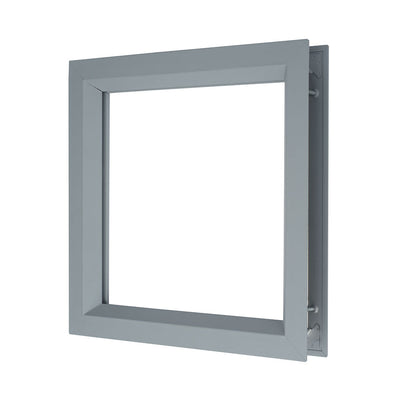

Rockwood LT-B1 Beveled lite kit with 3/8" glazing pocket for 1/4" glass - for 1-3/4" thick doors, galvannealed steel

For use with glazing material with wood or metal doors. The lite kits install without drilling holes through the door for quick installation. The hemmed design is a flush-mounted assembly and is ideal for clean environments.

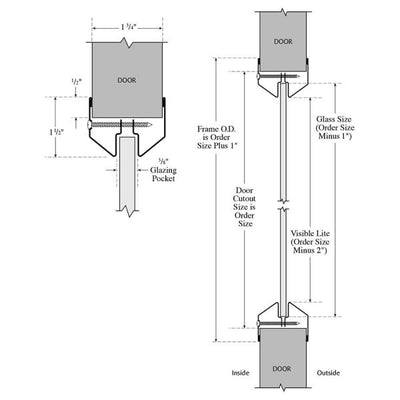

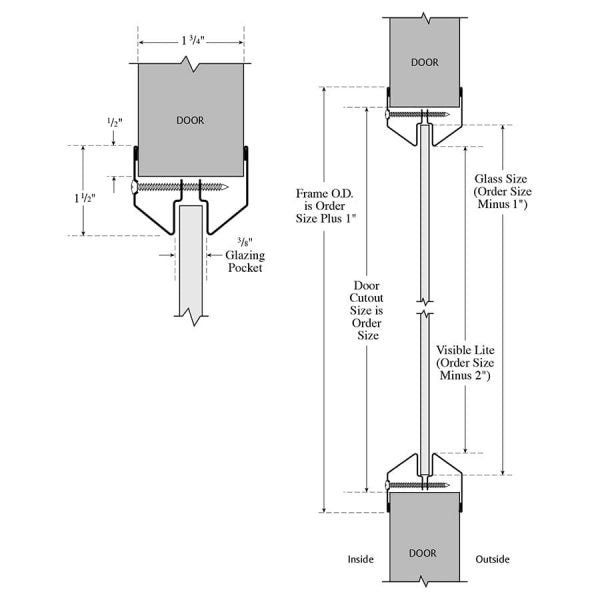

  • Order size equal to cutout size – Glass size is 1″ under, Visible glass is 2″ under
  • Glass / Glazing Tape Not Included - glazing to be ordered separately from our glazing section. Use fire rated glazing with Warnock Hersey (WHI) or UL classification markings for fire-rated applications.
  • Classified in accordance with UBC code standard 7-2 for positive pressure

made-in-usa

Brand

Rockwood
Door Thickness

1-3/4"
Finish

GrayWhiteBlackDark BronzeBeige
Finishes

Gray Primer Powder CoatBeige Powder CoatWSP White Suede Powder CoatDark Bronze Duranodic Powder CoatBSP Black Suede Powder Coat
Fire Rating

Classified in accordance with UBC code standard 7-2 for positive pressure 90 Minute Fire Rating
Frame Construction

20 Gauge Galvannealed Steel
Frame Fasteners

#8 x 1-3/4" Phillips head SMS
Frame Profile

Low
Glass Thickness

1/4"
Order Size

8" x 32"5" x 35"12" x 12"24" x 34"10" x 10"24" x 60"24" x 30"7" x 22"24" x 36"24" x 24"6" x 27"24" x 32"
