Product Overview

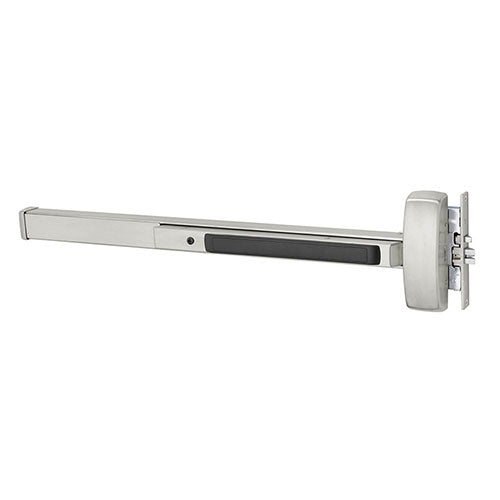

Sargent 8900 Series (8915/12-8915) Grade 1 Mortise Lock Exit Bar, Wide Stile Pushpad, Passage Function, Less Trim
Designed for standard width applications on wood and metal doors, the 8900 Series features a single-point guarded latch within the mortise pocket of the door for additional security. Equally suited for single door and double door applications with a vertical rod device.
- For use with Passage Lever Trim (Sargent outside trim sold separately)
- Includes mortise lock body and C908 ANSI curved lip strike
- Sargent Function: 15
- ANSI Function: 14 (passage only, no cylinder)
- Architectural finish with black Lexan touchpad
- Designed for standard width stile applications on wood and metal doors
- ANSI/BHMA A156.3 – Grade 1
- UL305 (Panic) Listed
- 12- Option UL10C (Fire) Listed
Use door width to determine size needed
- F Rail for 33″ to 36″ door widths, No cutting required for 36″ door
- J Rail for 37" to 42" door widths, No cutting required for 42″ door
- G Rail for 43″ to 48″ door widths, No cutting required for 48″ door
| ANSI/BHMA Standard |
ANSI/BHMA A156.3 – Grade 1 |
|---|---|
| Brand |
Sargent |
| Buy American Act Compliance |
Meets Buy Amercian Act - Made in USA |
| Center Case |
8-3/8" x 2-5/8" |
| Dogging Feature |
Hex key dogging standard on non-fired-rated devices |
| Door Applications |
1-3/4" Metal and Wood Doors |
| Fasteners |
Supplied standard with wood and machine screws |
| Finish |
Stainless Steel |
| Finishes |
630 Satin Stainless Steel |
| Fire-Rated |
12- Fire-Rated (No Dogging)Non-Fire-Rated (w/ Dogging Feature) |
| Fire Rating |
3-Hour Fire-Listed |
| Hand |
RHR (Right Hand Reverse)LHR (Left Hand Reverse) |
| Handing |
Handed (LHR - Left Hand Reverse or RHR - Right Hand Reverse) |
| Latchbolt |
Brass Nickel Plated 3/4" (19mm) throw anti-friction |
| Length |
F - 36" (for 33" to 36" Doors)G - 48" (for 43" to 48" Doors)J – 42" (for 37" to 42" Doors) |
| Minimum Stile Width |
4-1/2" |
| Projections |
3" active 2-1/8" depressed |
| Stile Type |
Wide (Standard) |
| Strike |
C908 Standard Black Nylon Coated – ANSI Prep A115.1 Optional Strikes – 815 Open Back Strike or 908 Flat Lipped Strike with Black Nylon |
| Usage |
Heavy Duty |
