Schlage B250P6 Single Cylinder Deadlatch

$242.37
Usually Ships:  1-2 Business Days
  • Ideal for pool, apartment, and condominium gates
  • Single cylinder x inside thumbturn
  • Holdback feature standard

Available Options:

Clear

Product Overview

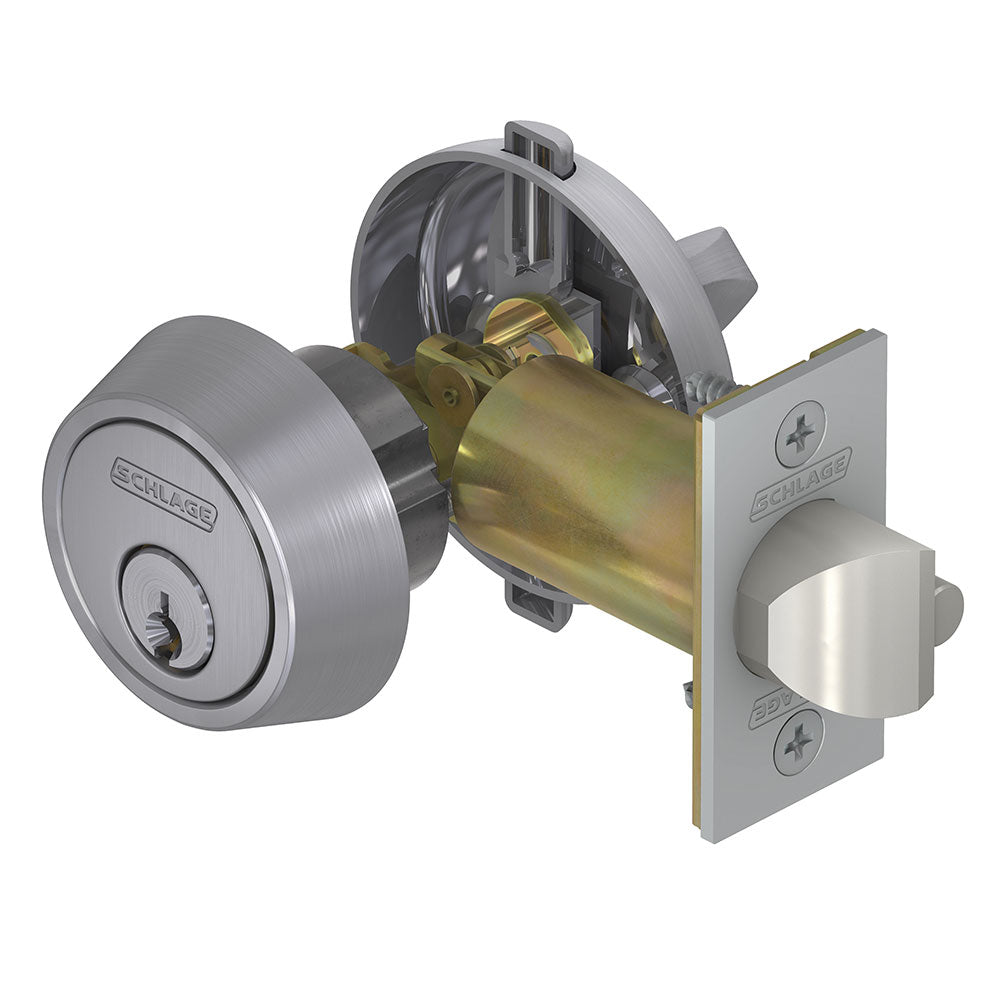

Schlage B250P6 Grade 2 Single Cylinder Deadlatch (Night Latch), Conventional Cylinder, Schlage C Keyway


Ideally suited for pool, apartment and condominium gates, utility panels, and pipe chases, the Schlage B250 Series is tough, reliable and has a proven design that has been the industry standard for decades.
The B250 operates as a deadlatch for situations where the non-handled function of a deadbolt is desired but in a self-locking form. When used on solid doors as a single cylinder with thumbturn, the holdback function allows the latch to remain retracted so the lock can be used as a nightlatch.

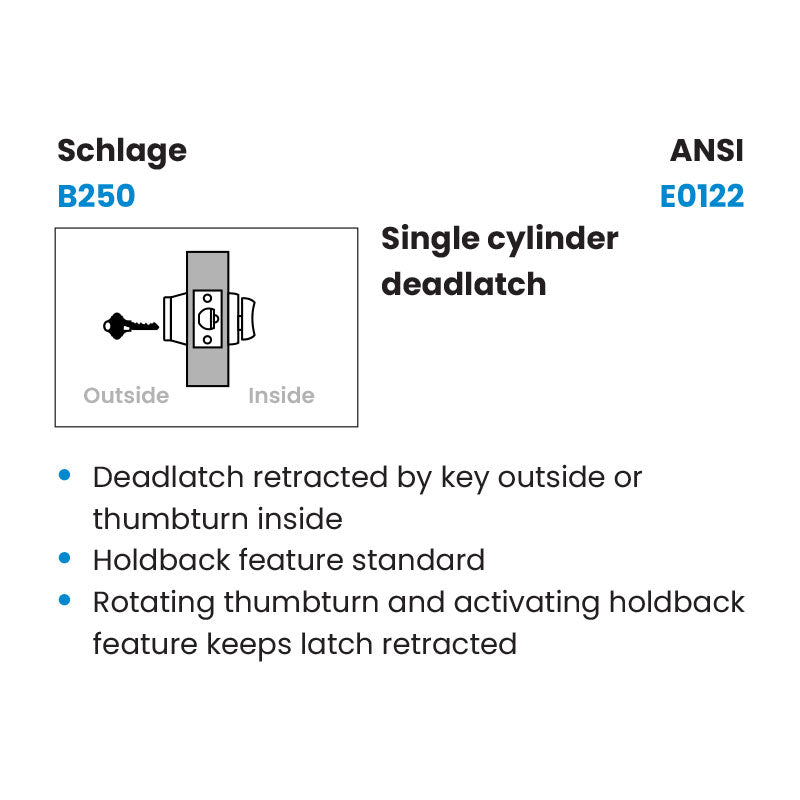

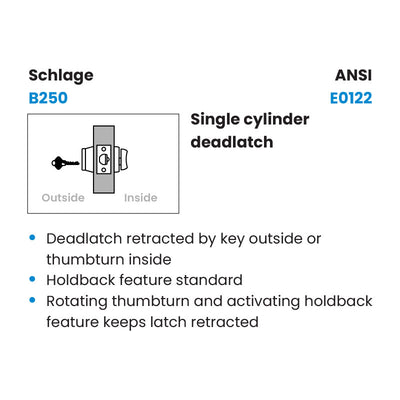

ANSI Function E0122: Deadlatch retracted by key outside or thumbturn inside. Holdback feature standard. Rotating thumbturn and activating holdback feature keeps latch retracted
  • Exceeds ANSI/BHMA Grade 2 operational and security standards
  • 9/16" throw deadlatch resists prying attacks and "shimming" of the latch
  • Metal wood frame reinforcer uses 3" screws to anchor deep into wood door frame to protect against kick-in attacks
  • Free spinning, tapered cylinder collar with security insert resists wrenching and prying
  • UL 437 listed option resists drilling and physical attack on the cylinder
  • 1" housing diameter; 9/16" throw
  • Backset: 2-3/8" (60 mm) fixed backset standard; 2-3/4" backset optional
  • Faceplate: square corner 1-1⁄8" x 2-1/4" (29 mm x 57 mm) standard
  • Strike: 1-1/8" x 2-3/4" T-strike with square corners and box standard
  • Strike lip length: 1-1⁄8" (29 mm) standard
Brand

Schlage
Finishes

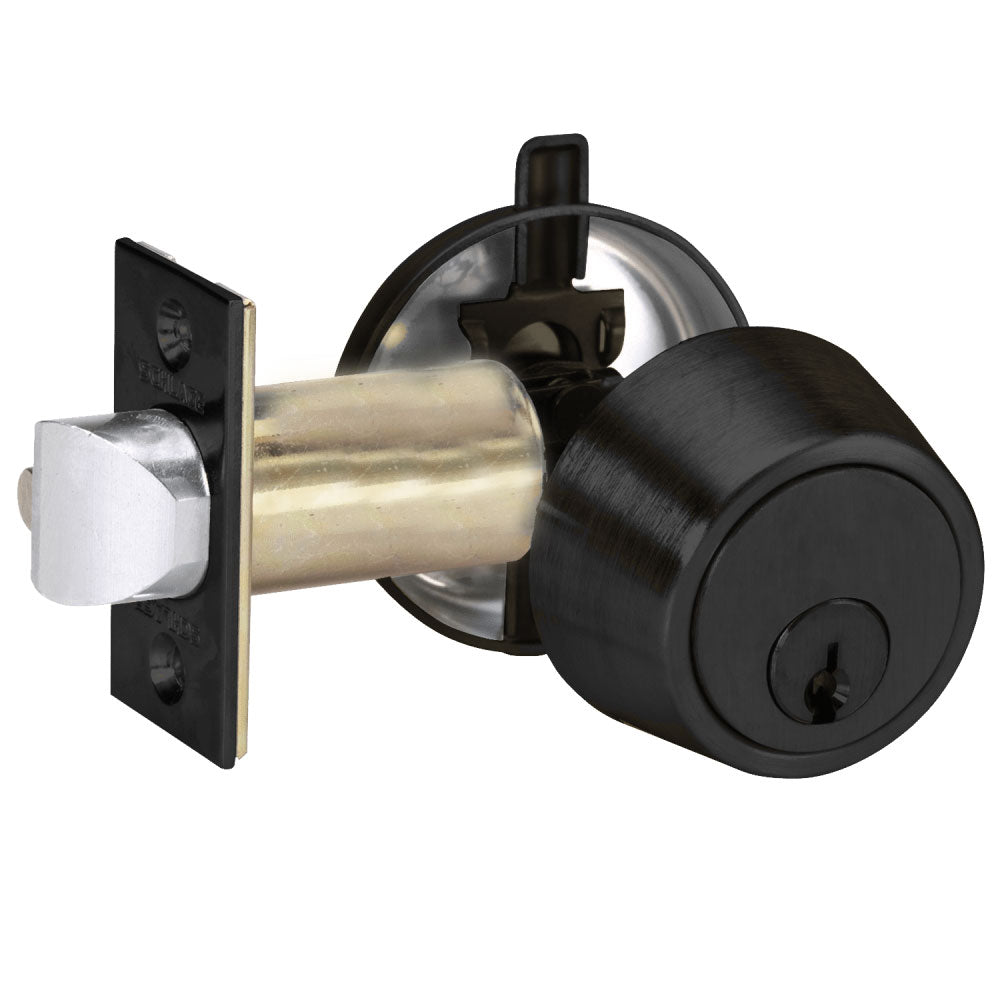

605 Bright Brass, 606 Satin Brass, 613 Oil Rubbed Bronze, 622 Matte Black, 625 Bright Chrome, 626 Satin Chrome
Latch

Brass, 9/16" (14 mm) throw, deadlocking
Faceplate

1-1/8" x 2-1/4" (29 mm x 57 mm) square corner, beveled. Brass, bronze or stainless steel
Strike

1-1⁄8" x 2-3⁄4" (32 mm x 70 mm) with steel reinforcer and two 3" screws standard
Cylinder & Keys

6-pin conventional, keyed different, with 2 keys
Keyway

Schlage C Keyway
ANSI Function

E0122
ANSI/BHMA Standard

ANSI/BHMA A156.36-2020, Grade 2 auxiliary lock
Usage

Medium Duty
Fire Rating

None
ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code
Door Thickness

1-1/2" to 1-3/4"
Warranty

3-year limited mechanical warranty
Buy American Act Compliance

Meets BAA - Buy American Act
