TownSteel TDC-85 Door Closer

$101.71
Usually Ships:  1-2 Business Days
  • Grade 1 Certified, ANSI/BHMA A156.4
  • Fully Adjustable (Sizes 1-6)
  • Regular, Top Jamb or Parallel Arm Mount

Available Options:

Clear

Product Overview

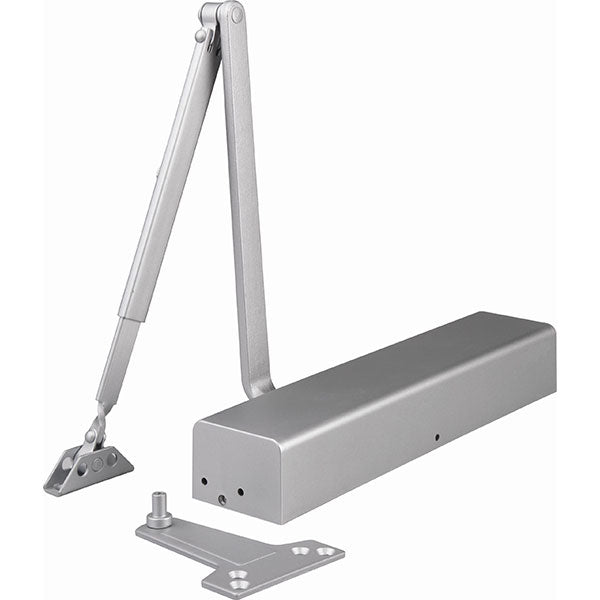

Townsteel TDC-85 Grade-1 Door Closer, Size 1-6 Adjustable, Cast Aluminum Body, Regular Arm with PA Bracket, Full Cover,

TownSteel TDC 85 Series closers are designed for medium-duty applications, well suited for hospitals, storefronts, business offices, and cafes that require both appearance and reliability on closers. The TDC 85 Series closers with slimline design bring ANSI grade 1 superior performance and ensure flexible installation and ADA compliance.

  • Fast and easy installation
  • For heavy traffic areas, exterior or interior
  • All weather fluid, heavy duty cast aluminum alloy body and forged steel arm
  • Non-handed for left or right swinging doors
  • Fully adjustable size 1-6
  • 1 ¼ ” diameter piston
  • Separate and adjustable latch, sweep, and backcheck valves standard
  • Adjustable backcheck and staked valves standard
  • Delayed action available
  • Tri-Style installation: includes hardware and brackets to allow for regular, top jam, and parallel arm installation
  • Screw pack for metal and wood doors installation, includes sleeve nuts and bolts, self- drilling screws, wood and machine screws

Code Compliance

  • Grade 1 Certified, ANSI/BHMA A156.4
  • Americans with Disabilities Act Compliant
  • UL 10C Compliant

codes

ANSI Grade

Meets ANSI A156.4 – Grade 1 Standards
Body Construction

Cast Aluminum Body
Brand

TownSteel
Cover

Full Cover
Door Applications

Hollow Metal Wood or Aluminum
Finish

AluminumDark BronzeBlack
Finishes

622 Matte Black695 Dark Bronze689 Aluminum
Fire Rating

UL10C and UBC 7.2 for positive pressure
Handing

Non-Handed
Mounting Options

Parallel Arm (Push Side)Top Jamb (Push Side)Regular (Pull Side)
Spring Size

Adjustable Spring Size 1-6
Templating (Hole Pattern)

3/4" x 12"
Usage

Medium Duty
