Trudoor

Trudoor TDE-2000V-DT Surface Vertical Rod Exit Device with Heavy-Duty Dummy Pull

$339.35
This item ships FREE! Usually Ships:  Same Day
  • Meets ANSI/BHMA A156.3 Grade 1 standards
  • Includes TDE-DT dummy pull trim
  • ANSI Function 02, acts as a pull when device is dogged

Available Options:

Clear

Product Overview

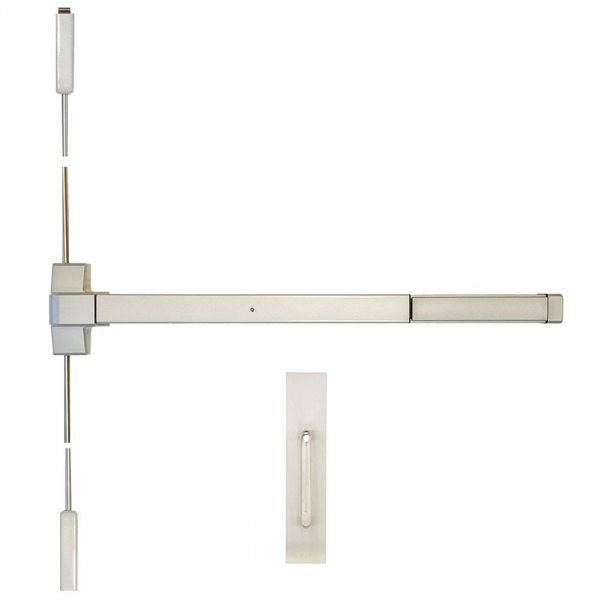

Trudoor TDE-2000V-DT Grade-1 Surface Vertical Rod Exit Device with Heavy-Duty Dummy Pull


TDE-2000V Series surface vertical rod exit devices are an ideal choice for a wide variety of standard to medium-duty commercial and industrial door applications where durability, reliability, and code compliance are required at an economical price. Trudoor products meet or exceed industry standards and can be substituted for any other specified brand.
  • ANSI Function 02 (Dummy) – acts as a pull when the device is dogged
  • UL Listed for Panic Exit Hardware
  • Designed for medium to heavy use
  • Top latch: U shaped top latch for secure engagement with strike (not electric strike compatible)
  • Bottom latch: Drop bolt style bottom latch secures into flat strike & hole in the floor
  • Hex key dogging standard on panic exit device

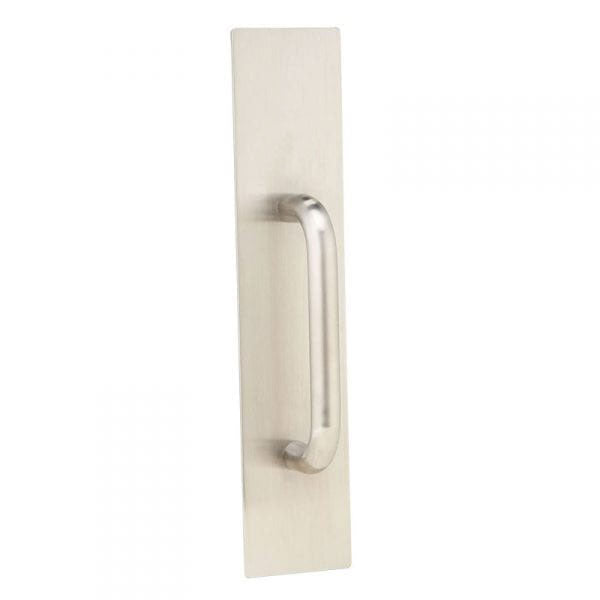

TDE-DT Dummy Pull Trim
  • ANSI Function: 02 (Pull when dogged)
  • An ideal choice for high-use doors that will be dogged down for push/pull applications
  • 3/4″ diameter x 6-1/4″ CTC x 2-7/16″ projection
  • 3″ wide x 13-7/8″ height x 1/16″ thick escutcheon plate size
  • US32D/630 Stainless Steel Finish
  • Thru bolts to head of exit device
  • Stainless steel construction
Sizes
  • 3’0″ x 7’0″ (for 2’4″ to 3’0″ wide door, 7’0″ height)
  • 3’0″ x 8’0″ (for 2’4″ to 3’0″ wide door, 8’0″ height)
  • 4’0″ x 7’0″ (for 3’4″ to 4’0″ wide door, 7’0″ height)
  • 4’0″ x 8’0″ (for 3’4″ to 4’0″ wide door, 8’0″ height)
ul-listed
