Trudoor TDE-2000V-L-DT Surface Vertical Rod Exit Device with Heavy-Duty Blank Escutcheon Dummy Lever

$412.10
This item ships FREE! Usually Ships:  Same Day
  • Meets ANSI/BHMA A156.3 Grade 1 standards
  • Includes TDE-02 blank escutcheon dummy lever trim
  • ANSI Function 02, lever acts as pull when device is dogged

Available Options:

Clear

Product Overview

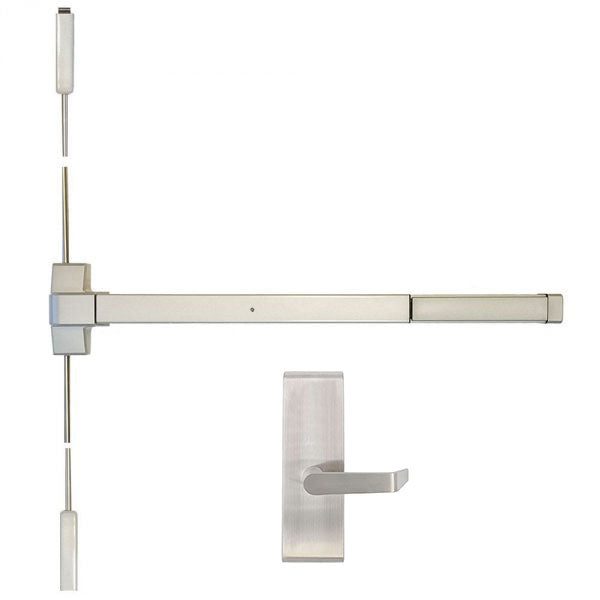

Trudoor TDE-2000V-L-DT Grade-1 Surface Vertical Rod Exit Device with Heavy-Duty Blank Escutcheon Dummy Lever

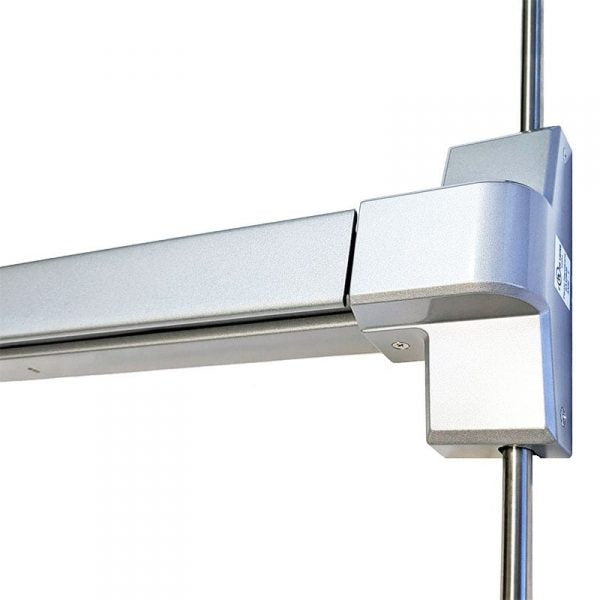

TDE-2000V Series surface vertical rod exit devices are an ideal choice for a wide variety of standard to medium-duty commercial and industrial door applications where durability, reliability, and code compliance are required at an economical price. Trudoor products meet or exceed industry standards and can be substituted for any other specified brand.
  • ANSI Function 02 (Dummy) – lever acts as a pull when the device is dogged
  • UL Listed for Panic Exit Hardware
  • Designed for medium to heavy use
  • Top latch: U shaped top latch for secure engagement with strike (not electric strike compatible)
  • Bottom latch: Drop bolt style bottom latch secures into flat strike & hole in the floor
  • Hex key dogging standard on panic exit device

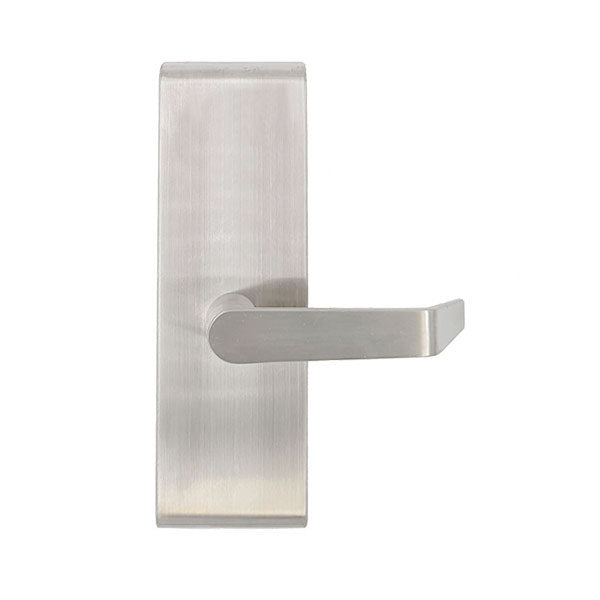

TDE-02 Blank Escutcheon Dummy Lever Trim, Keyless
  • Pull when dogged
  • Blank escutcheon, no cylinder hole
  • Steel, zinc dichromated chassis, stainless steel exterior housing
  • Thru-bolts to exit device for added strength
  • 5″ solid stainless steel lever, 2-7/8″ total projection
  • Escutcheon: 3″ wide x 9″ height x 3/4″ projection, covers 161 door prep
  • 1-3/4″ door thickness standard
  • Includes thru bolt posts and 1/4″-20 machine screws for installation
  • Meets ADA requirements – A117.1 Accessibility code
Sizes
  • 3’0″ x 7’0″ (for 2’4″ to 3’0″ wide door, 7’0″ height)
  • 3’0″ x 8’0″ (for 2’4″ to 3’0″ wide door, 8’0″ height)
  • 4’0″ x 7’0″ (for 3’4″ to 4’0″ wide door, 7’0″ height)
  • 4’0″ x 8’0″ (for 3’4″ to 4’0″ wide door, 8’0″ height)
ul-listed
