Von Duprin

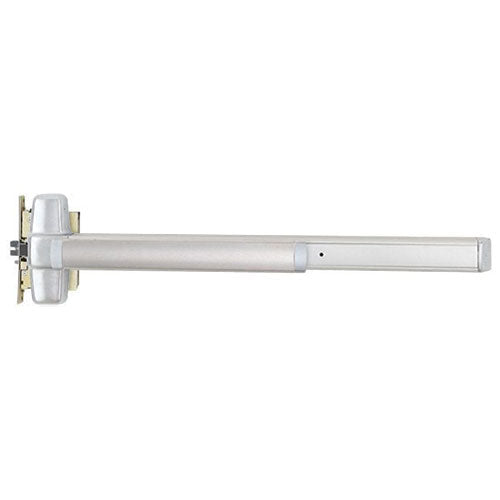

Von Duprin 9875EO Mortise Lock Exit Device, Exit Only

$1,938.42
This item ships FREE! Usually Ships:  1-2 Business Days
  • Heavy Duty, Grade-1 ANSI Certified
  • For use with metal or wood doors
  • Includes mortise body and strike (trim sold separately)

Available Options:

Clear

Product Overview

Von Duprin 9875EO/9875EO-F Mortise Lock Exit Device, Exit Only

9875 Mortise lock device for all types of single or double doors, UL listed for Panic exit hardware. Devices are ANSI A156.3 – 2008 Grade 1. Fits stock hollow metal doors with 86 cutout and door stiles as narrow as 4-3/4".

The 7500 Mortise lock is equipped with a 3/4" anti-friction latch bolt which is field reversible without removing the lock from the door. It has a non-handed auxiliary bolt for deadlocking and a faceplate with an adjustable bevel.

  • Exit Only (trim sold separately)
  • UL listed for panic exit hardware
  • 9875EO-F UL listed for fire exit hardware
  • Fits stock hollow metal doors with 86 edge cutout
  • Includes 7500 lock body and 575 strike
  • Field reversible

ANSI/BHMA Standard

ANSI A156.3 – 2008 Grade 1
Brand

Von Duprin
Buy American Act Compliance

Meets Buy Amercian Act - Made in USA
Dogging Feature

Hex key dogging standard on non-fired-rated devices
Door Applications

Metal or Wood Doors
Finish

Anodized AluminumSatin ChromeStainless Steel
Finishes

US32D (630) Satin Stainless SteelUS26D (626) Satin ChromeUS28 (628) Anodized Aluminum
Fire Rating

3 Hour Fire-Rated
Handing

Non-handed except when -2 (Double Cylinder) or SS (Signal Switch) options are used
Length

3'0" (2'4" to 3'0" Doors)4'0" (3'1" to 4'0" Doors)
Model

9875EO-F - 3 Hour Fire-Rated (No Dogging)9875EO - w/ Dogging Feature
Stile

4-3/4" Mimimum
Strike

575 Strike
Usage

Heavy Duty
