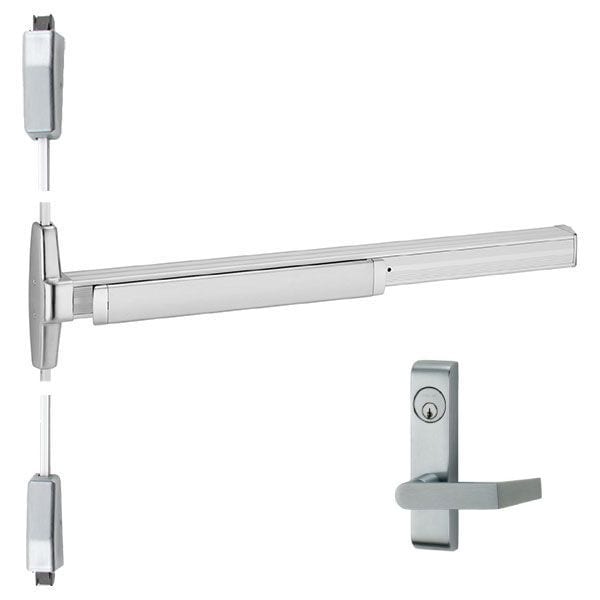

Von Duprin 3327A-L Narrow Stile Surface Vertical Rod Exit Device with Lever

$2,709.30
This item ships FREE! Usually Ships:  2-3 Business Days
  • Heavy Duty, ANSI/BHMA Certified Grade-1
  • Fits Door Stiles as Narrow as 1-3/4"
  • Includes 360L Lever (Key locks/unlocks lever)

Available Options:

Clear

Product Overview

Von Duprin 3327A-L Narrow Stile Surface Vertical Rod Exit Device with Lever

The 33 Series has been certified to the highest industry standards and are used in schools, hospitals and government buildings. The 33 Series is a high-performance heavy-duty push pad exit device. Von Duprin customers are supported by industry-leading expertise. Allegion’s representatives average more than 15 years of experience, so you’re assured to receive knowledgeable advice on fire and life safety codes, installation resources and more.

  • 3'0" Length (for doors 2'4" to 3'0" wide)
  • For doors up to 7'0" height

360L Lever Trim

  • ANSI Function: 08 or 09
  • Base Size: 7-1/2" x 1-11/16" x 7/8"
  • Projection: 3"
  • Cylinder Type: 1-1/4" Mortise Cylinder (Sold Separately)

ANSI Grade

Certified ANSI A156.3-2001 Grade 1 standards
Brand

Von Duprin
Buy American Act Compliance

Meets Buy Amercian Act - Made in USA
Cylinder

1-1/4" Mortise Cylinder (sold separately)
Device Type

Surface Rod Device
Dogging Feature

Half turn hex dogging standard
Door Height

Standard rods accommodate 7'0"
Finish

Dark BronzeAnodized Aluminum
Finishes

313 Duranodic Dark BronzeUS28 (628) Anodized Aluminum
Fire Rating

Non-Fire-Rated
Hand

Device Non-Handed - Lever Ships as RHR (Field Reversible)
Latchbolt

Deadlocking
Length

3'0"
Stile

1-3/4" Minimum
Stile Type

Narrow
Strikes

Device is furnished standard with 266 248L-4 and 304L strikes
Trim

360L Lever
Usage

Heavy Duty
