Best

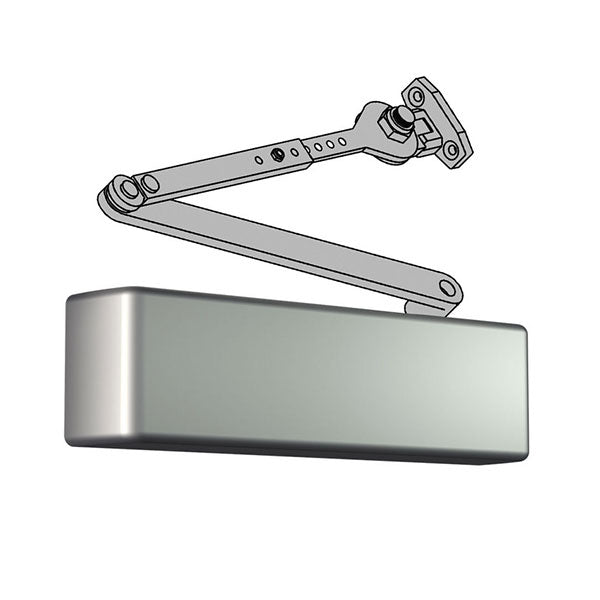

Best EHD9016 FHP90 Door Closer with Friction Hold Open Arm

$407.01
This item ships FREE! Usually Ships:  1-2 Business Days
  • Extra Heavy-Duty, BHMA/ANSI Certified Grade-1
  • Provides a hold open function between approximately 90° and 180°
  • Tri-pack - regular, top jamb, or parallel arm mount

Available Options:

Clear

Product Overview

Best EHD9016 Grade 1 Extra Heavy-Duty Surface Door Closer, Hydraulic, Tri Mount Double Lever Arm with Adjustable Friction Hold Open, Adjustable Backcheck, Plastic Cover, Size 1 to 6, Cast Iron Body

The BEST EHD9000 Extra Heavy-Duty Surface Door Closer was designed to be the most reliable, durable, and rugged door closer in the industry.

Nothing Closes Like the BEST EHD9000

Built to perform in even the highest traffic areas, the EHD9000 addresses issues common in other closers so your building remains safe and doors operate as intended. It’s the last closer you’ll ever need. The EHD9000’s single-piece cast iron design is quality you can feel. Expertly cast in Germany, it’s sturdy with no seams — unlike competitors who use a threaded, two-piece construction with a steel tube — and designed to work from day one to decades down the road.

  • FHP90 = Friction hold open arm complete (Tri-Pack) (0"–4" reveal). PHB included.
  • Provides a hold open function between approximately 90° and 180° of door opening (conditions permitting). Arm is non-handed.
  • Utilizes same hole pattern as LCN 4040XP
  • Rugged reliable single-piece cast iron construction
  • Durable design meant to last and perform consistently over the years

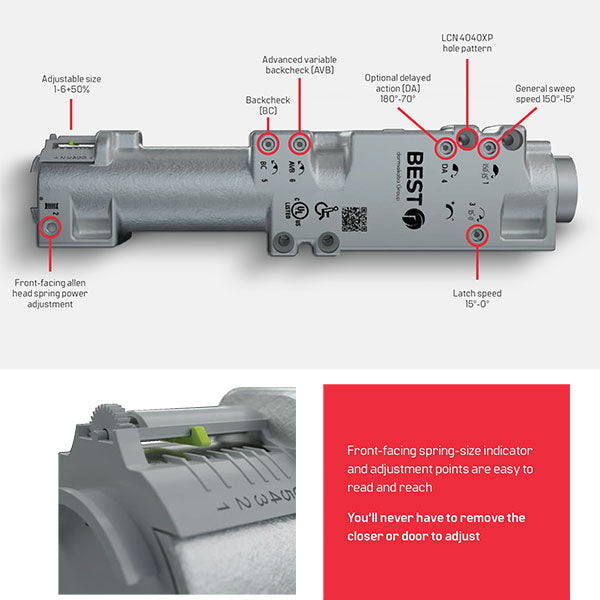

  • Front-facing spring-size indicator and adjustment points, adjustable spring size 1-6
  • May be used on doors up to 48" wide interior (42" wide exterior) and up to 180 lb.
  • SNDTPK90 - Standard fasteners include separate self-drilling and self-tapping and sex nuts for 1-3/4" thick doors and machine screws
  • Single piece cast iron body engineered in Germany
  • ANSI/BHMA A156.4 Grade 1 certified
  • Meets ANSI/BHMA A117.1 and ADA for barrier-free accessibility

Applications

  • Education, K-12 & Universities
  • Healthcare facilities
  • Government offices & facilities
  • Transportation/Airports
  • Other commercial applications
ANSI/BHMA Standard

ANSI/BHMA Grade 1 156.4 standards
Body Construction

Cast Iron Body
Brand

Best
Cover

Full Cover
Fasteners

SNDTPK90 - Standard fasteners include separate self-drilling and self-tapping and sex nuts for 1-3/4" thick doors and machine screws
Finish

BlackBrassAluminumDark BronzeLight Bronze
Finishes

696 Brass689 Aluminum695 Dark Bronze691 Light Bronze693 Black
Fire Rating

Non-Rated with Hold Open Arm
Handing

Non-Handed
Mounting Options

Regular (Pull Side)Top Jamb (Push Side)Parallel Arm (Push Side)
Spring Size

Adjustable Spring Size 1-6

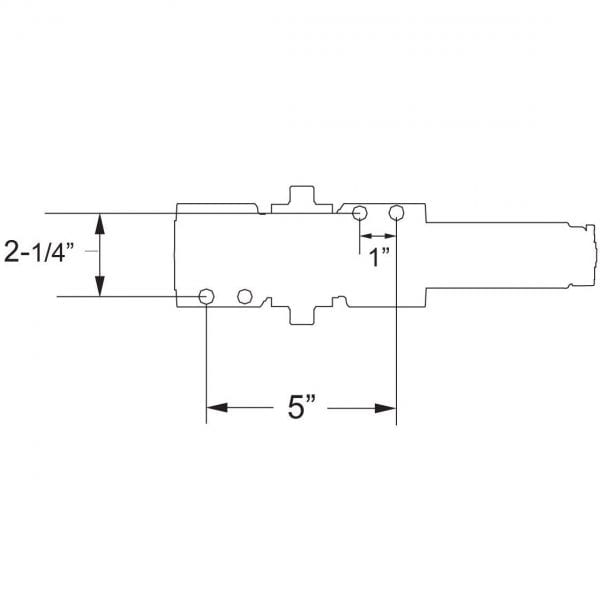

Templating (Hole Pattern)

2-1/4" x 5"
Usage

Heavy Duty
Warranty

35 Years
