Product Overview

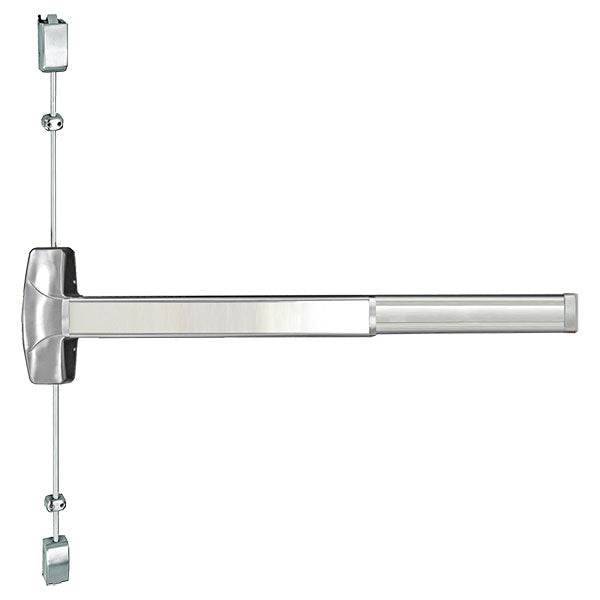

Cal-Royal A7760 & AF7760 Grade-1 SVR Exit Device, Exit Only
For use in institutions, schools, universities, commercial buildings where heavy duty reliable operation is a requirement.
- Exit Only (Outside Trim Sold Separately)
- ANSI A156.3, Grade-1
- BHMA Certified
- UL and ULC Listed - 7760 Series for panic. F7760 Series for fire exit hardware for all types of 8’ x 8’ double doors for up to 3-hour fire labeled installations. Conforms to standards UL10C and UBC 7-2-1997 codes
- NOTE : US32D is US26D with US32D (Stainless Steel) Push Pad
| ANSI Grade |
ANSI Grade 1 |
|---|---|
| Brand |
Cal-Royal |
| Device Type |
Surface Rod Device |
| Dogging Feature |
Hex key dogging standard on non-fired-rated devices |
| Finish |
BlackStainless Steel |
| Finishes |
L1 BlackUS32D (630) Satin Stainless Steel |
| Fire-Rated |
Fire-Rated (No Dogging)Non-Fire-Rated (w/ Dogging Feature) |
| Fire Rating |
7760V Non-rated - F7760V Fire-rated up to 3 Hours |
| Handing |
Completely Reversible |
| Size |
36" x 96"36" x 84"48" x 96" |
| Usage |
Heavy Duty |
