Cal-Royal

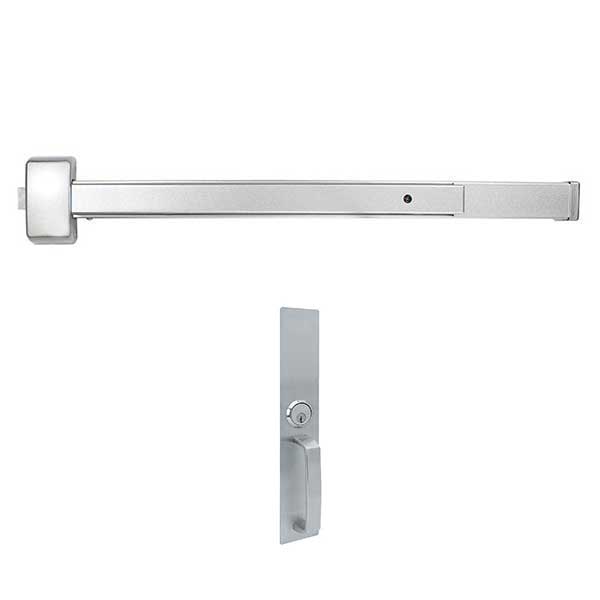

Cal-Royal A2200 x 2200PULNL Panic Rim Exit Device with Night Latch Pull Trim

$219.66
Usually Ships:  3-5 Business Days
  • ANSI/BHMA Grade-1 Certified
  • Includes 2200PULNL pull trim (cylinder included)
  • ANSI Function 03 - key retracts latchbolt

Available Options:

Clear

Product Overview

Cal-Royal A2200 & AF2200 ADA Series Grade-1 Rim Exit Device with 2200PULNL Night Latch Pull Trim

Uncompromising security and safety in single and double exit doors

  • ANSI Function 03 – Outside by pull and key. Key retracts latch bolt.
  • ANSI A156.3, Grade-1 exit device
  • Retrofits Sargent 2828 and 2838 Series
  • UL Listed for Panic and UL10C, UBC 7-2-1997 codes
  • Conforms & Meets ADA Regulations.
  • Americans with Disability Act (ADA) Compliant, 5 lbs. opening force
  • Chassis mounted unit construction
  • Non-handed for easy installation

2200PULNL Pull Trim

  • Aluminum painted finish
  • Includes rim cylinder (Schlage C keyway)
  • Hardened steel heavy-duty tailpiece
ANSI/BHMA Standard

Certified ANSI/BHMA A156.3 Grade 1
Brand

Cal-Royal
Cylinder

Standard 6-pin rim cylinder included
Dogging Feature

Half turn hex dogging standard
Door Thickness

1-3/4"
Finish

Aluminum
Finishes

ALUM (Aluminum)
Fire Rating

Non-Fire-Rated
Handing

Non Handed – Completely Reversible
Keyway

Schlage C Keyway
Latchbolt

Stainless steel 3/4” throw
Length

4'0" (3'1" to 4'0" Doors)2'0" (2'0" Door)3'0" (2'6" to 3'0" Doors)
Projections

2-1/2" active 1-3/4" dogged
Stile Type

Wide (Standard)
Strike

239 packed standard
Trim

2200PULNL
Usage

Medium Duty
Warranty

Limited Lifetime Warranty
