Product Overview

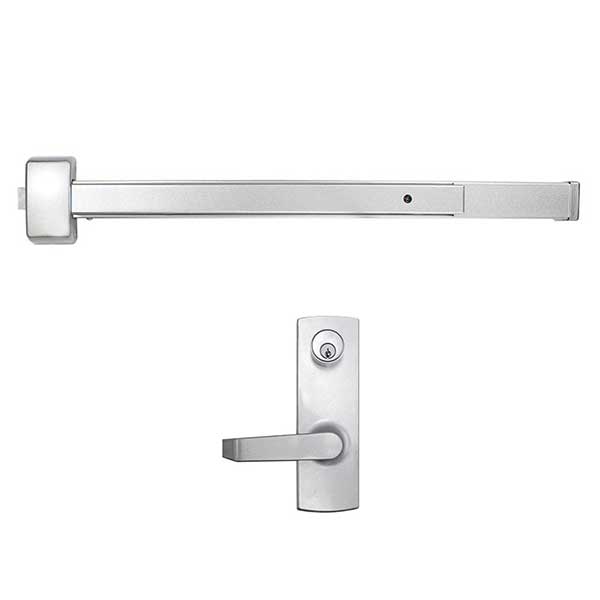

Cal-Royal A2200 & AF2200 ADA Series Grade-1 Rim Exit Device with NESC2200 Escutcheon Entry Lever Trim
Uncompromising security and safety in single and double fire exit doors
- ANSI Function 63 – Rigid Entrance, key locks or unlocks escutcheon trim – Operates as classroom function
- ANSI A156.3, Grade-1 exit device
- Retrofits Sargent 2828 and 2838 Series
- UL Listed for Panic and UL10C, UBC 7-2-1997 codes
- Conforms & Meets ADA Regulations.
- Americans with Disability Act (ADA) Compliant, 5 lbs. opening force
- F2200 UL Listed for Fire Exit Hardware (3 hours)
- Chassis mounted unit construction
- Non-handed for easy installation
NESC2200 Lever Trim
- Grade 1, thrubolted design, rigid non-clutch lever
- Non handed design
- Hardened steel heavy duty tailpiece
- For fire and non-fire rated rim and vertical rod exit devices
- Standard 6-Pin Schlage “C” Mortise Cylinder included
| ANSI/BHMA Standard |
Certified ANSI/BHMA A156.3 Grade 1 |
|---|---|
| Brand |
Cal-Royal |
| Cylinder |
Standard 6-pin mortise cylinder included |
| Dogging Feature |
Hex key dogging standard on non-fired-rated devices |
| Door Thickness |
1-3/4" |
| Finish |
Aluminum |
| Finishes |
ALUM (Aluminum) |
| Fire-Rated |
Fire-Rated (No Dogging)Non-Fire-Rated (w/ Dogging Feature) |
| Fire Rating |
UL Listed 3 Hour Rated |
| Handing |
Non Handed – Completely Reversible |
| Keyway |
Schlage C Keyway |
| Latchbolt |
Stainless steel 3/4” throw |
| Length |
2'0" (2'0" Door)4'0" (3'1" to 4'0" Doors)3'0" (2'6" to 3'0" Doors) |
| Projections |
2-1/2" active 1-3/4" dogged |
| Stile Type |
Wide (Standard) |
| Strike |
239 packed standard |
| Trim |
NESC2200 |
| Usage |
Medium Duty |
| Warranty |
Limited Lifetime Warranty |
