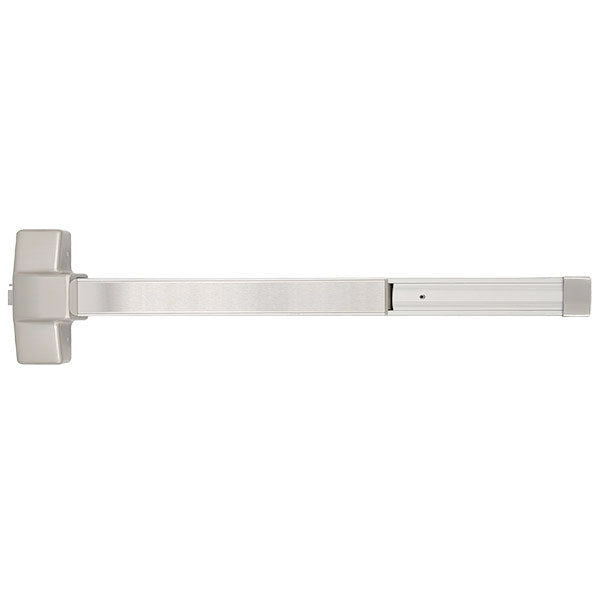

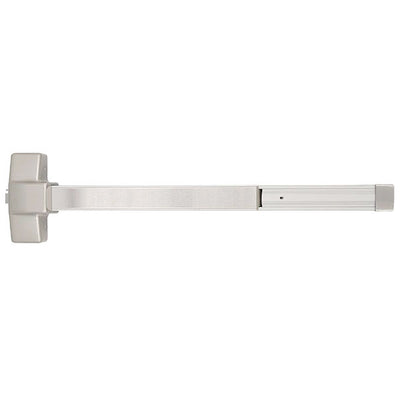

Trudoor TDE-1000R-L Rim Exit Device with Escutcheon Lever

$442.17
This item ships FREE! Usually Ships:  Same Day
  • Heavy Duty, ANSI/BHMA A156.3 Grade 1 standards
  • Includes TDE-08 escutcheon lever trim (cylinder included)
  • ANSI Function 08 (classroom) or 09 (night latch)

Available Options:

Clear

Product Overview

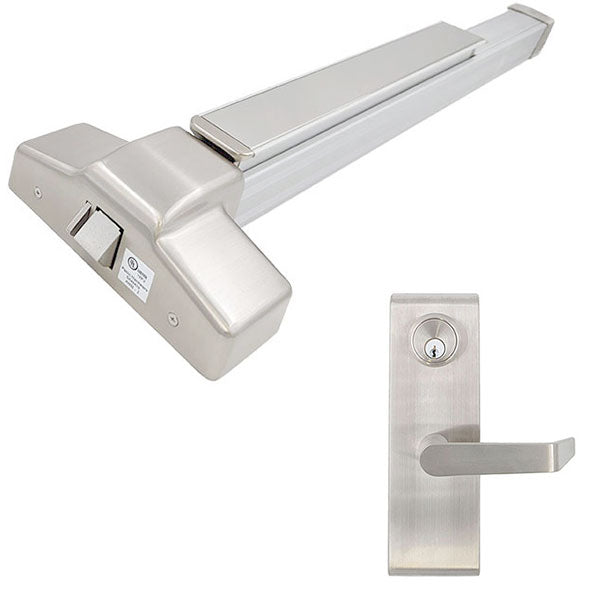

Trudoor TDE-1000R-L Heavy-Duty Grade-1 Rim Exit Device with Escutcheon Lever Trim, Satin Stainless Steel

TDE-1000 Series rim exit devices are an ideal choice for a wide variety of heavy-duty commercial, institutional, and industrial door applications where durability, reliability, and code compliance are required at an economical price.  Trudoor products meet or exceed industry standards and can be substituted for any other specified brand.

  • ANSI Function 08 (Classroom) or 09 (Night Latch / Storeroom): Ships as 08 Classroom – 09 function achieved with single trim modification at installation
  • UL Listing: UL Listed for panic exit hardware
  • (Optional) Fire-rating: UL Listed for “A” Label 3 hour fire doors (no dogging on fire-rated devices)
  • Designed for medium to heavy use
  • Heavy-duty extruded anodized aluminum mechanism case and cover plate

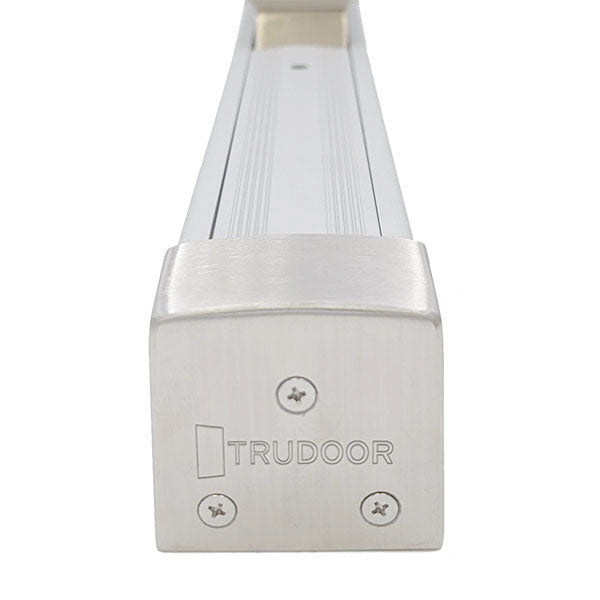

  • Steel chassis, center case cover, push pad, and end cap
  • Hex key dogging standard on panic exit device
  • Deadlocking latchbolt with 5/8” projection
  • Non-handed for easy installation
  • Includes ASA strike (frame) filler plate and 161 door edge filler plate

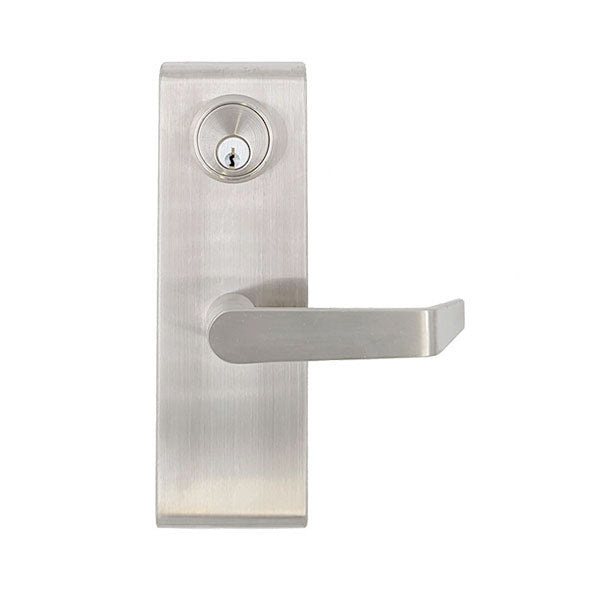

TDE-08 Escutcheon Lever Trim

  • Entry/classroom function - convertible to night latch
  • Steel, zinc dichromated chassis, stainless steel exterior housing
  • Thru-bolts to exit device for added strength
  • 5″ solid stainless steel lever, 2-7/8″ total projection
  • Escutcheon: 3″ wide x 9″ height x 3/4″ projection, covers 161 door prep
  • 1-3/4″ door thickness standard
  • Includes thru bolt posts and 1/4″-20 machine screws for installation
  • Includes 1-1/8″ mortise cylinder with a straight cam, 6-pin, Schlage C keyway, with 2 keys
  • Meets ADA requirements – A117.1 Accessibility code

codes

ANSI/BHMA Standard

Meets ANSI/BHMA A156.3 Grade 1 Standards
Brand

Trudoor
Center Case

8” Height x 2-7/8” Wide x 2-13/16” Thick
Cylinder

1-1/8" mortise cylinder with straight cam (included)
Dogging Feature

Hex key dogging standard on non-fired-rated devices
Fasteners

Wood Machine & Self Tapping Machine Screws
Finish

Stainless Steel
Finishes

US32D (630) Satin Stainless Steel
Fire-Rated

Fire-RatedNon-Fire-Rated (w/ Dogging Feature)
Fire Rating

3 Hour Fire-Rated
Handing

Non-Handed Field selected at the time of installation
Keyway

Schlage C Keyway
Latchbolt

Deadlocking latchbolt with 5/8″ projection
Length

4ft (for doors 3'4" to 4'0")3ft (for doors 2'4" to 3'0")
Projections

3-3/8″ Undogged – 2-13/16″ Dogged (Depressed)
Stile Type

Wide (Standard)
Strike

Roller Strike with 5/8″ projection & 1/8″ shim
Trim

TDE-08 Escutcheon Lever
Usage

Heavy Duty
Warranty

Limited Lifetime Warranty
