Trudoor TDE-2000R-L Rim Exit Device with Heavy-Duty Escutcheon Lever

$262.58

Usually Ships: Same Day

Meets ANSI/BHMA A156.3 Grade 1 standards
Includes TDE-08 escutcheon lever trim (cylinder included)
ANSI Function 08 (classroom) or 09 (night latch)

Available Options:

Clear

Finish
Model
Length

Quantity:

Added to Cart

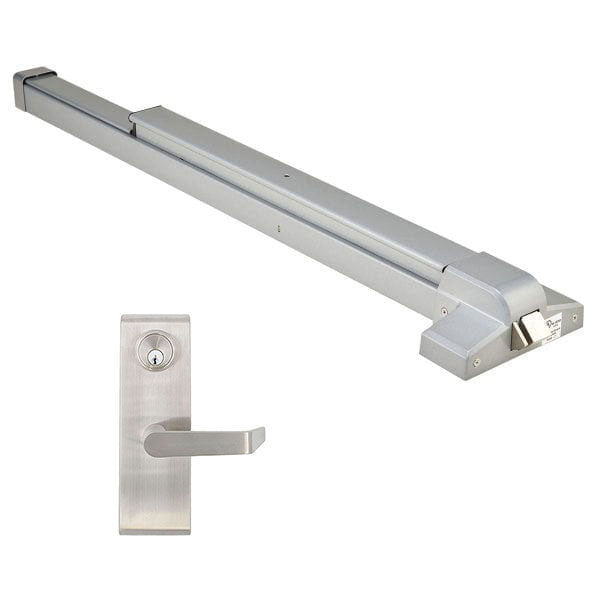

Trudoor TDE-2000R-L Grade-1 Rim Exit Device with TDE-08 Escutcheon Lever Trim

TDE-2000 Series rim exit devices are an ideal choice for a wide variety of standard to medium-duty commercial door applications where durability, reliability, and code compliance are required at an economical price. Trudoor products meet or exceed industry standards and can be substituted for any other specified brand.

ANSI Function 08 (Classroom) or 09 (Night Latch / Storeroom): Ships as 08 Classroom – 09 function achieved with single trim modification at installation
TDE-2000R: UL Listed for Panic Exit Hardware
TDE-F2000R: UL Listed for “A” Label 3-Hour Fire Doors (no dogging on fire-rated devices)
Includes ASA strike (frame) filler plate and 161 door edge filler plate
ADA compliant lever trim and meets California code for 1/2" lever return to door face

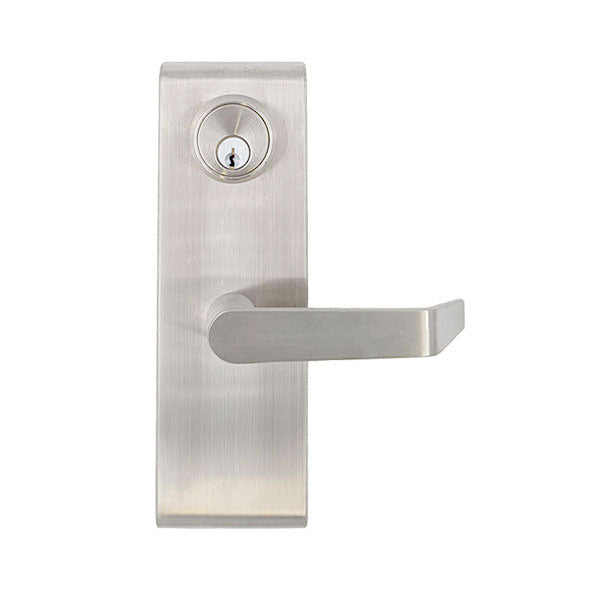

TDE-08 Escutcheon Lever Trim

Entry/classroom function – convertible to night latch
Steel, zinc dichromated chassis, stainless steel exterior housing
Thru-bolts to exit device for added strength
5″ solid stainless steel lever, 2-7/8″ total projection
Escutcheon: 3″ wide x 9″ height x 3/4″ projection, covers 161 door prep
1-3/4″ door thickness standard
Includes thru bolt posts and 1/4″-20 machine screws for installation
Includes 1-1/8″ mortise cylinder with a straight cam, 6-pin, Schlage C keyway, with 2 keys
Meets ADA requirements – A117.1 Accessibility code

Cross Reference

The TDE-2000R-L can be specified as a substitute for: Cal-Royal 2200 x NESC2000, Design Hardware 2000R x LE-08, Dorma 8300 x 8R08, Falcon 19R-L / 20R x L, Hager 4700 x 47CE, PDQ 4200 x 4-EW-08, Sargent x 3828 x 28C-LL, Von Duprin 22L, Yale 1800 x 426F / 2100 x 626F

ANSI Grade	Meets ANSI A156.3 – Grade 1 Standards
Brand	Trudoor
Center Case	6″ Height x 2-5/16″ Wide x 2-1/2″ Thick
Cylinder	1-1/8" mortise cylinder with straight cam (included)
Dogging Feature	Hex key dogging standard on non-fired-rated devices
Fasteners	Wood Machine & Self Tapping Machine Screws
Finish	Aluminum
Finishes	SP28/AL Aluminum Device - US32D/630 Satin Stainless Steel Lever
Fire Rating	TDE-2000R Non-Rated – TDE-F2000R 3 Hour UL Listed
Handing	Non-Handed Field selected at the time of installation
Keyway	Schlage C Keyway
Latchbolt	Deadlocking latchbolt with 5/8″ projection
Length	4ft (for doors 3'4" to 4'0")3ft (for doors 2'4" to 3'0")
Minimum Stile Width	4" w/ Standard Roller Strike
Model	TDE-2000R Panic Device (w/ Dogging Feature)TDE-F2000R Fire-Rated Device (No Dogging)
Projections	2-1/2″ Undogged – 1-13/16″ Dogged (Bar Depressed)
Stile Type	Wide (Standard)
Strike	Roller Strike with 5/8″ projection & 1/8″ shim
Trim	TDE-08 Escutcheon Lever
Usage	Medium Duty
Warranty	Limited Lifetime Warranty
