Von Duprin

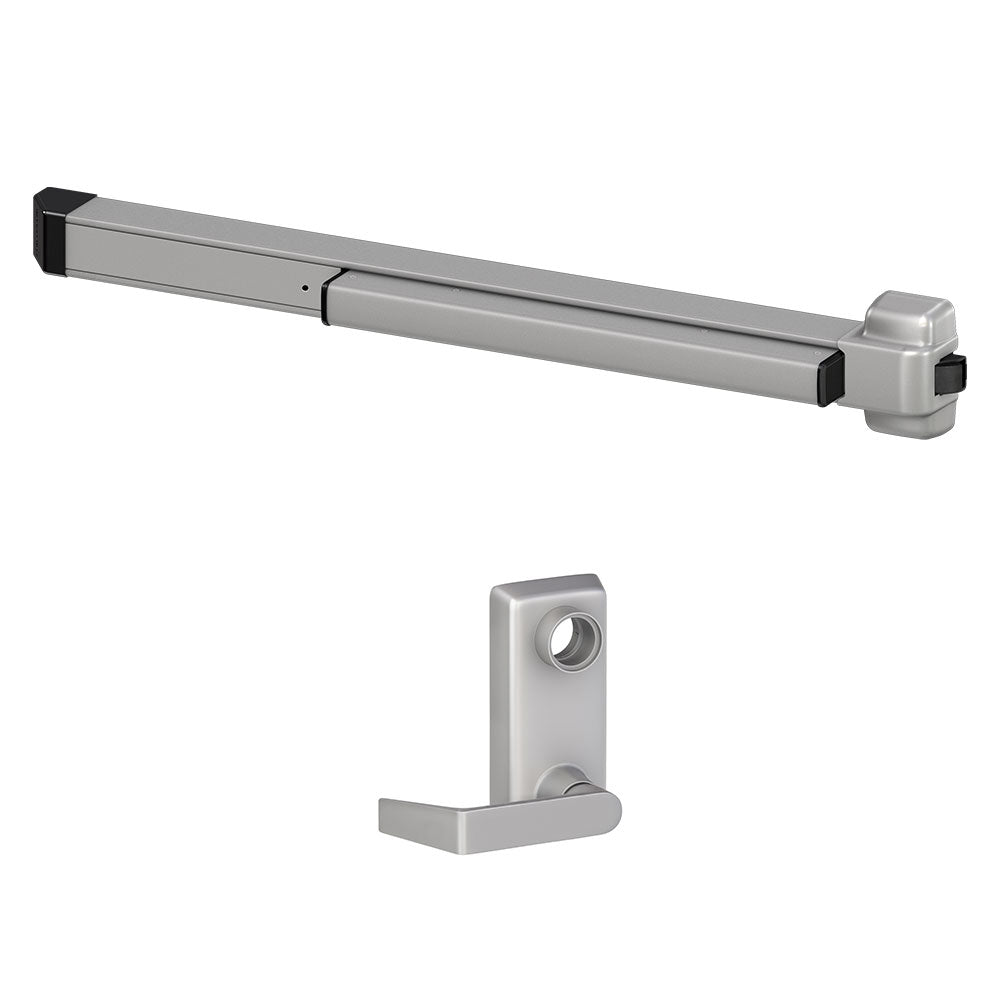

Von Duprin 22L Rim Panic Bar Exit Device with Lever

$533.04
This item ships FREE! Usually Ships:  1-2 Business Days
  • ANSI/BHMA Grade-1 Certified - Made in USA
  • ANSI Function 08 (Key Locks/Unlocks Lever)
  • Includes 230L Lever Trim (cylinder sold separately)

Available Options:

Clear

Product Overview

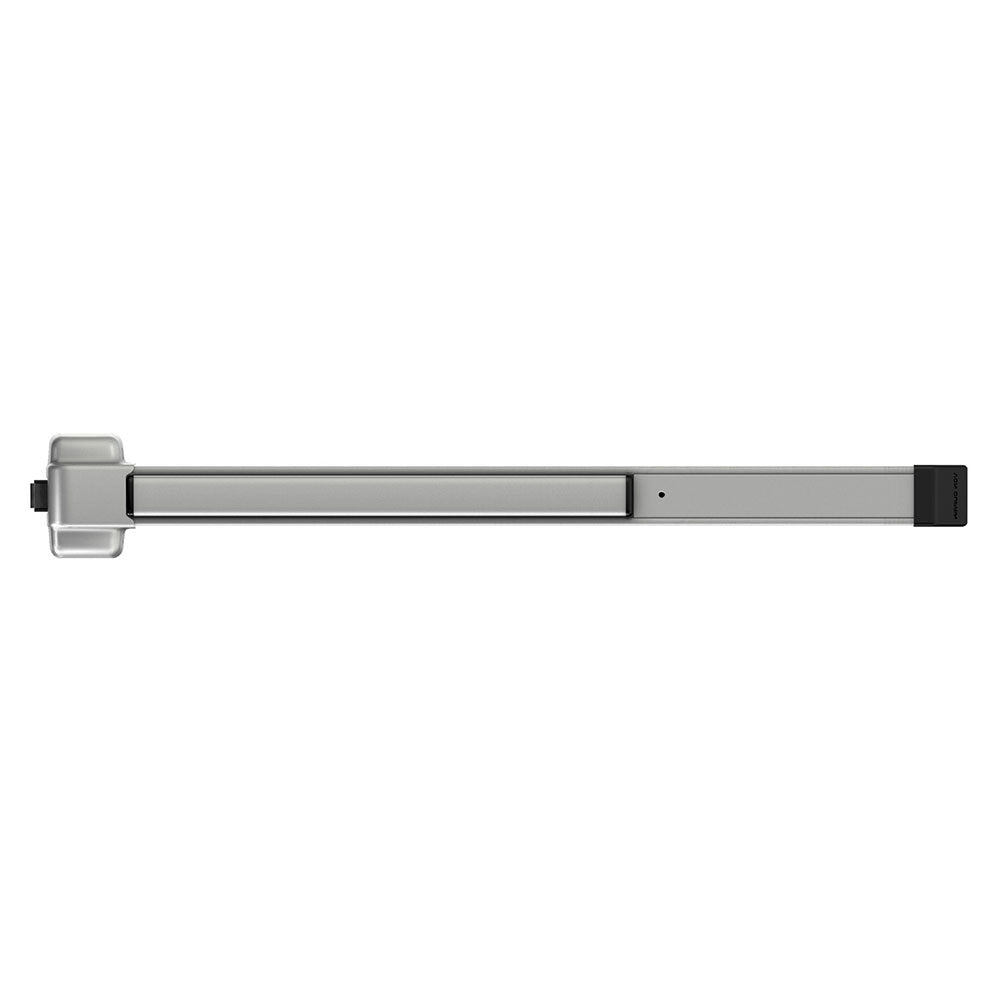

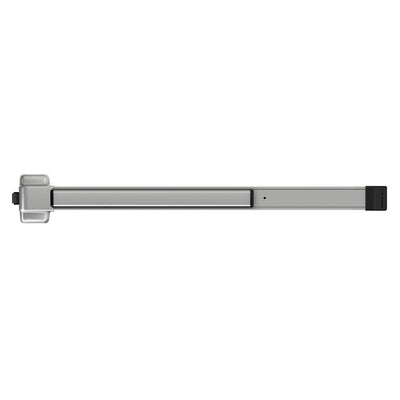

Von Duprin 22L Grade-1 Rim Exit Device with Trim, Lever with Escutcheon, Classroom Function

The 22 Series wide stile device is a cost-effective solution for medium to low traffic areas where proven reliability is needed. The non-handed design of the 22 Series makes it more adaptable in the field. It is ANSI A156.3, Grade-1 certified and has UL fire ratings (22-F). The 22 Series is designed and manufactured in accordance to ISO 9001 Quality Management System. It also is UL listed for Panic Hardware or Fire Hardware.

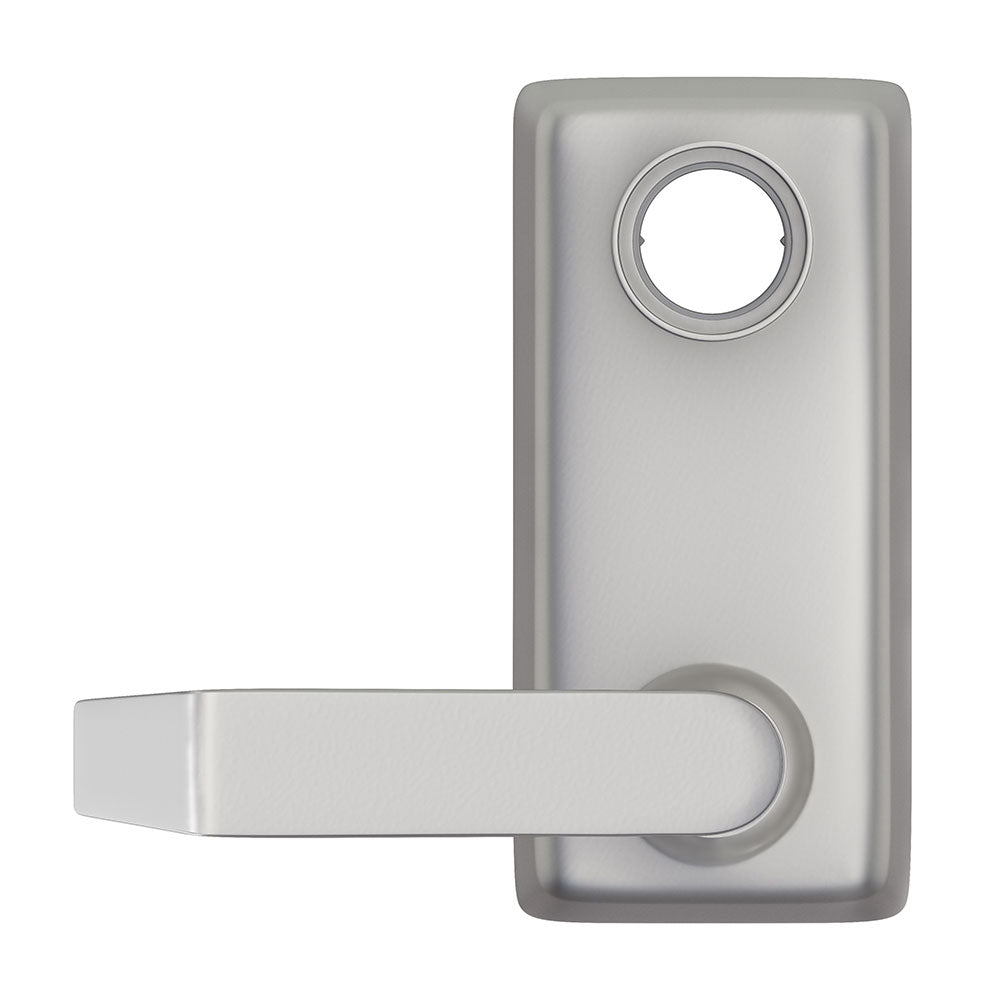

230L Entry Lever Trim

  • ANSI Function: 08
  • Escutcheon plate size: 3" x 6-3/8" x 15/16"
  • Projection: 2-5/8"
  • #06 lever style furnished standard
  • Mortise cylinder must be ordered separately

ANSI/BHMA Standard

ANSI/BHMA A156.3-2008 Grade 1 certified
Brand

Von Duprin
Buy American Act Compliance

Meets Buy Amercian Act - Made in USA
Cylinder

1-1/4" Mortise Cylinder (sold separately)

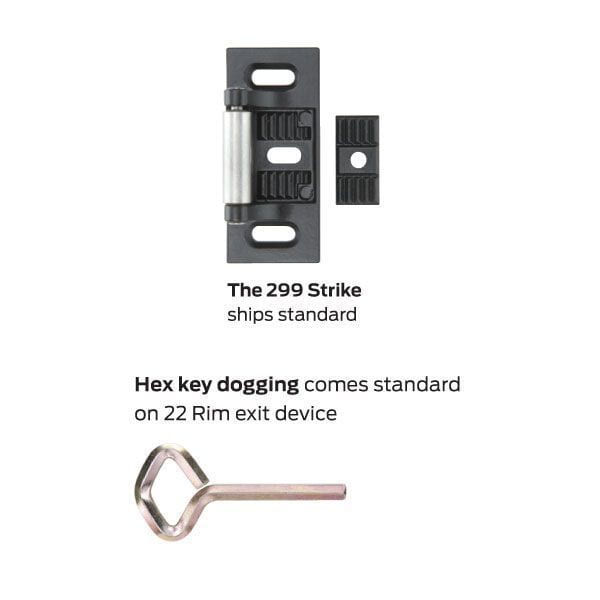

Dogging Feature

Hex key dogging standard on non-fired-rated devices
Finish

BlackAluminumDark Bronze
Finishes

622 Matte Black695 Dark Bronze689 Aluminum
Fire-Rated

Non-Fire-Rated (w/ Dogging Feature)Fire-Rated (No Dogging)
Fire Rating

22-EO Non-Rated – 22-EO-F UL listed A or B label fire rating
Hand

Device Non-Handed - Lever Field Reversible
Latchbolt

Deadlatching 3/4" throw
Length

4'0" (3'4" to 4'0" Doors)3'0" (2'4" to 3'0" Doors)
Stile Type

Wide (Standard)
Trim

230L
Usage

Medium Duty
Von_Duprin_230L_L-BE_Lever_Control_Installation_Instructions How to Install Von Duprin 98/99 Rim Exit Device
