Product Overview

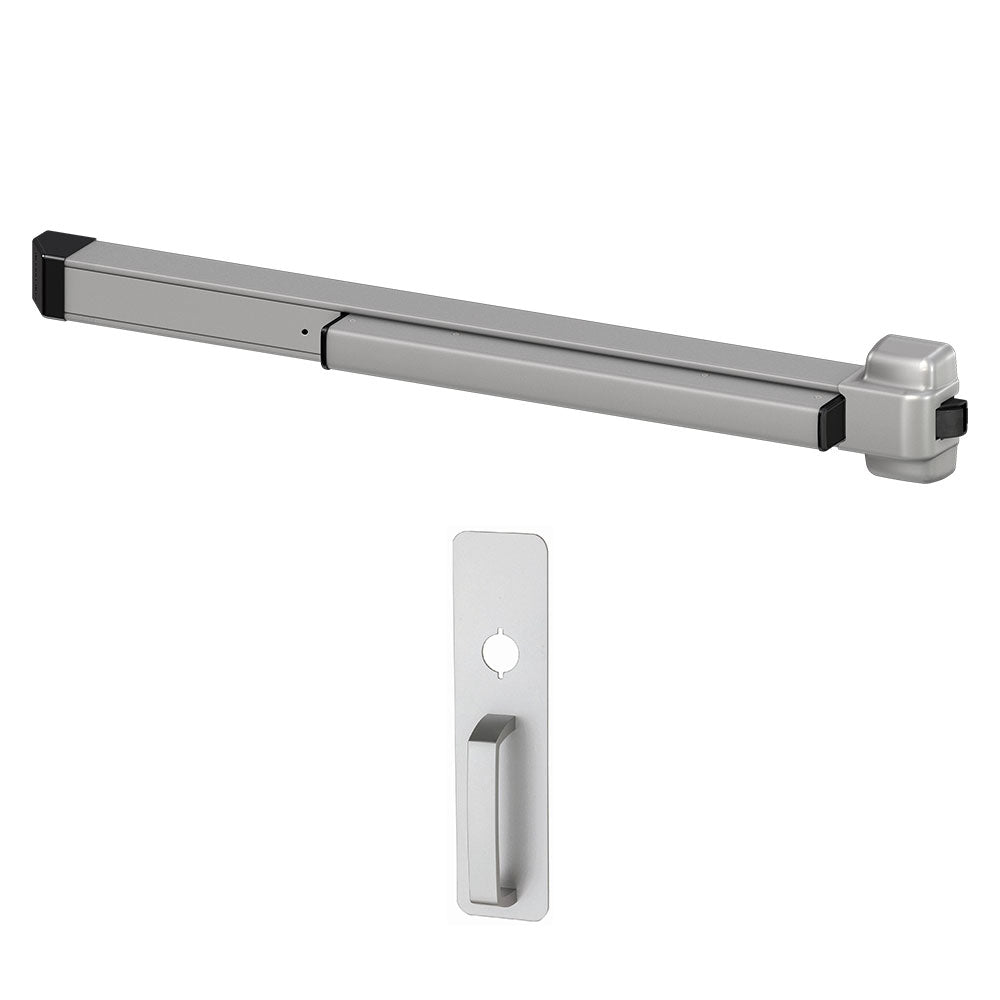

Von Duprin 22NL Grade-1 Rim Exit Device with Trim, Night Latch Pull
The 22 Series wide stile device is a cost-effective solution for medium to low traffic areas where proven reliability is needed. The non-handed design of the 22 Series makes it more adaptable in the field. It is ANSI A156.3, Grade-1 certified and has UL fire ratings (22-F). The 22 Series is designed and manufactured in accordance to ISO 9001 Quality Management System.

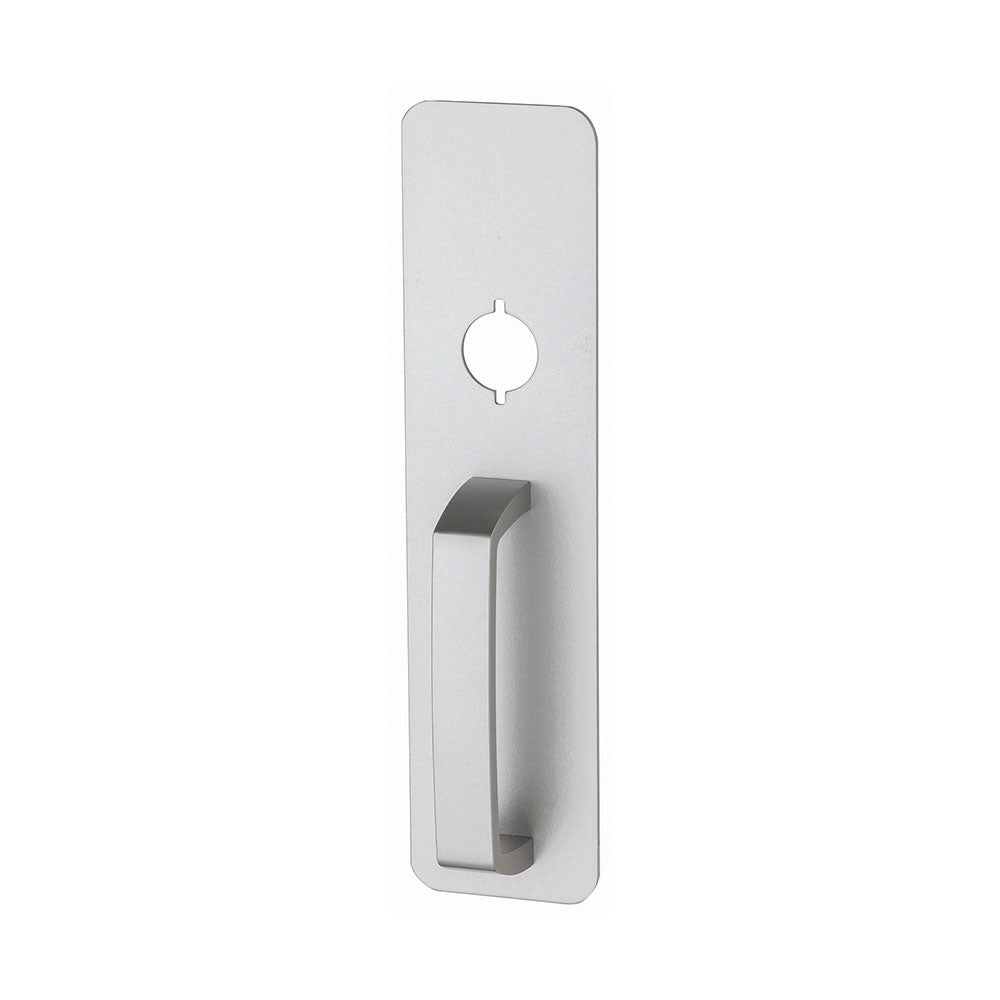

230NL Night Latch Pull Trim
- ANSI Function: 03 (Entrance by lever when latchbolt is retracted by key - Key is removable only when it's locked)
- Escutcheon plate size: 3" x 12-1/16" x 3/32"
- Projection: 2"
- Pull center to center: 5"
- Rim cylinder must be ordered separately
| ANSI/BHMA Standard |
ANSI/BHMA A156.3-2008 Grade 1 certified |
|---|---|
| Brand |
Von Duprin |
| Buy American Act Compliance |
Meets Buy Amercian Act - Made in USA |
| Cylinder |
1-1/8" Rim Cylinder (Sold Separately) |
| Dogging Feature |
Hex key dogging standard on non-fired-rated devices |
| Finish |
AluminumDark Bronze |
| Finishes |
689 Aluminum695 Dark Bronze |
| Fire-Rated |
Non-Fire-Rated (w/ Dogging Feature)Fire-Rated (No Dogging) |
| Fire Rating |
22-EO Non-Rated – 22-EO-F UL listed A or B label fire rating |
| Hand |
Non-handed |
| Latchbolt |
Deadlatching 3/4" throw |
| Length |
4'0" (3'4" to 4'0" Doors)3'0" (2'4" to 3'0" Doors) |
| Stile Type |
Wide (Standard) |
| Strike |
299 roller strike standard 299F strike with fire-rated device |
| Trim |
230NL Night Latch Pull |
| Usage |
Medium Duty |
