Von Duprin

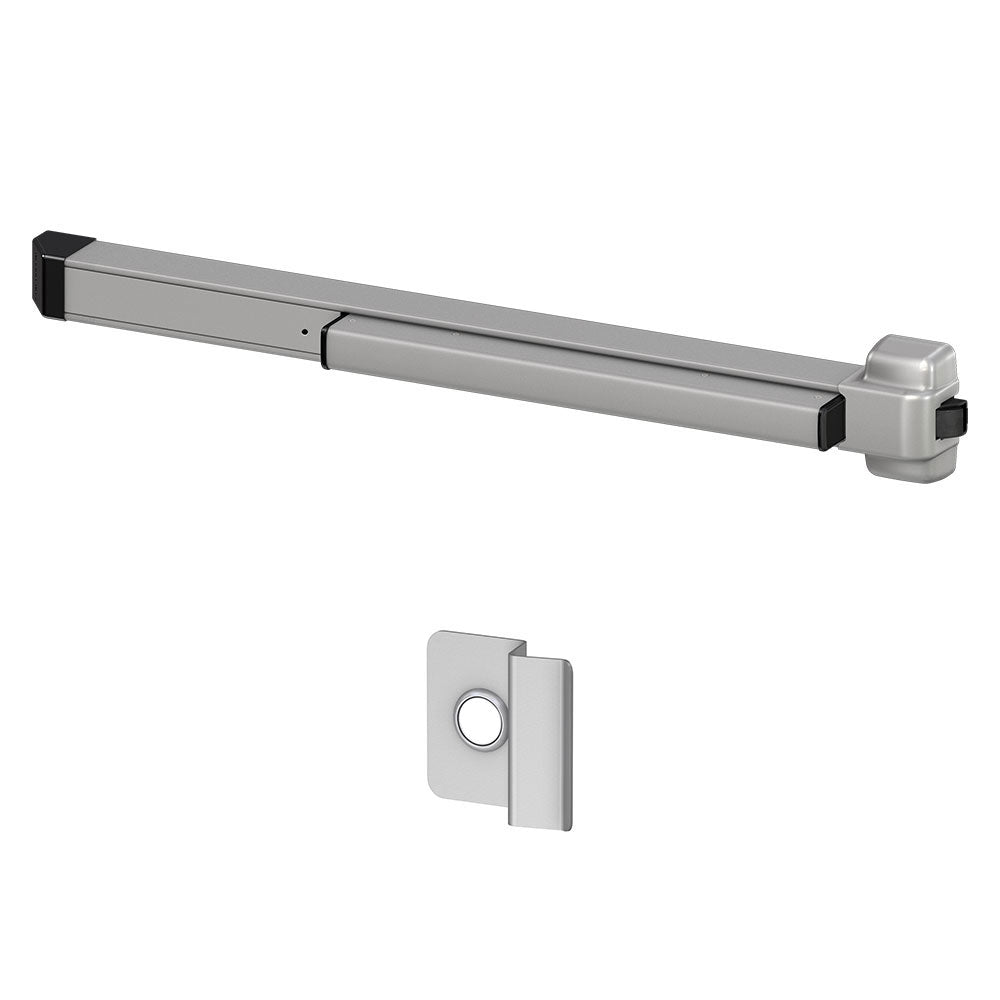

Von Duprin 22NL Rim Panic Bar Exit Device with 210NL Night Latch Pull

$392.37
This item ships FREE! Usually Ships:  1-2 Business Days
  • ANSI/BHMA Grade-1 Certified - Made in USA
  • ANSI Function 03 (Key Retracts Latchbolt)
  • Includes 210NL Night latch Pull (cylinder sold separately)

Available Options:

Clear

Product Overview

The 22 Series wide stile device is a cost-effective solution for medium to low traffic areas where proven reliability is needed. The non-handed design of the 22 Series makes it more adaptable in the field. It is ANSI A156.3, Grade-1 certified and has UL fire ratings (22-F). The 22 Series is designed and manufactured in accordance to ISO 9001 Quality Management System. It also is UL listed for Panic Hardware or Fire Hardware.

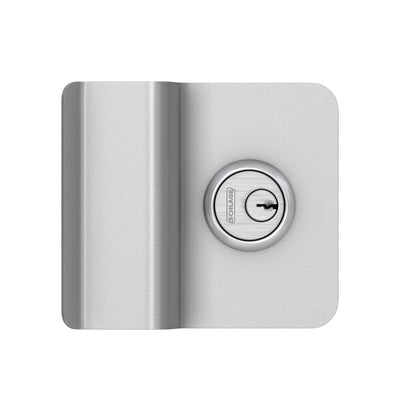

210NL Night Latch Pull Trim

  • ANSI Function: 03 (Entrance by lever when latchbolt is retracted by key - Key is removable only when it's locked)
  • Escutcheon plate size: 5-3/8" x 4-25/32" x 3/32"
  • Projection: 1-31/32"
  • Rim cylinder must be ordered separately

ANSI/BHMA Standard

ANSI/BHMA A156.3-2008 Grade 1 certified
Brand

Von Duprin
Buy American Act Compliance

Meets Buy Amercian Act - Made in USA
Cylinder

1-1/8" Rim Cylinder (Sold Separately)
Dogging Feature

Hex key dogging standard on non-fired-rated devices
Finish

AluminumDark Bronze
Finishes

689 Aluminum695 Dark Bronze
Fire-Rated

Non-Fire-Rated (w/ Dogging Feature)Fire-Rated (No Dogging)
Fire Rating

22-EO Non-Rated – 22-EO-F UL listed A or B label fire rating
Hand

Non-handed
Latchbolt

Deadlatching 3/4" throw
Length

4'0" (3'4" to 4'0" Doors)3'0" (2'4" to 3'0" Doors)
Stile Type

Wide (Standard)
Strike

299 roller strike standard 299F strike with fire-rated device
Trim

210NL Night Latch Pull
Usage

Medium Duty
