Falcon

Falcon 25-R-NL Panic Bar Rim Exit Device with Night Latch Pull

$781.37
This item ships FREE! Usually Ships:  1-2 Business Days
  • Heavy Duty, ANSI/BHMA Grade-1 Certified – Made in USA
  • ANSI Function 03 (key retracts latch bolt)
  • Includes 512NL Night Latch Pull (cylinder sold separately)

Available Options:

Clear

Product Overview

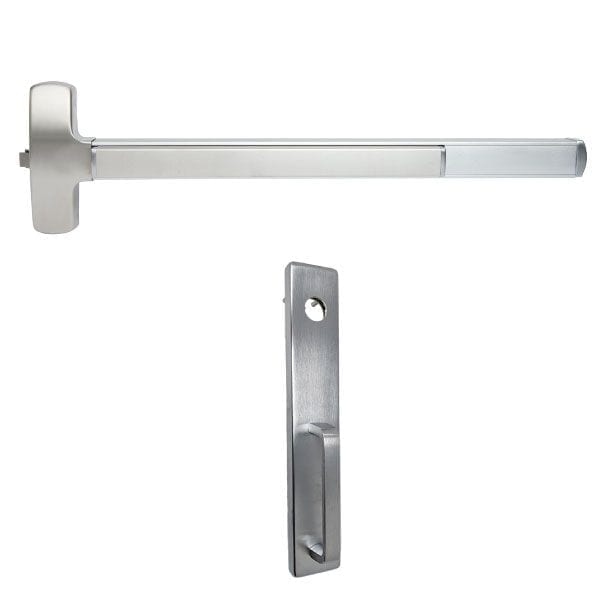

Falcon 25-R-NL 25 Series Exit Device, Rim with Night Latch Trim

The 25-R-NL panic rim exit device with night latch pull trim is for use with single doors and double doors with a mullion.

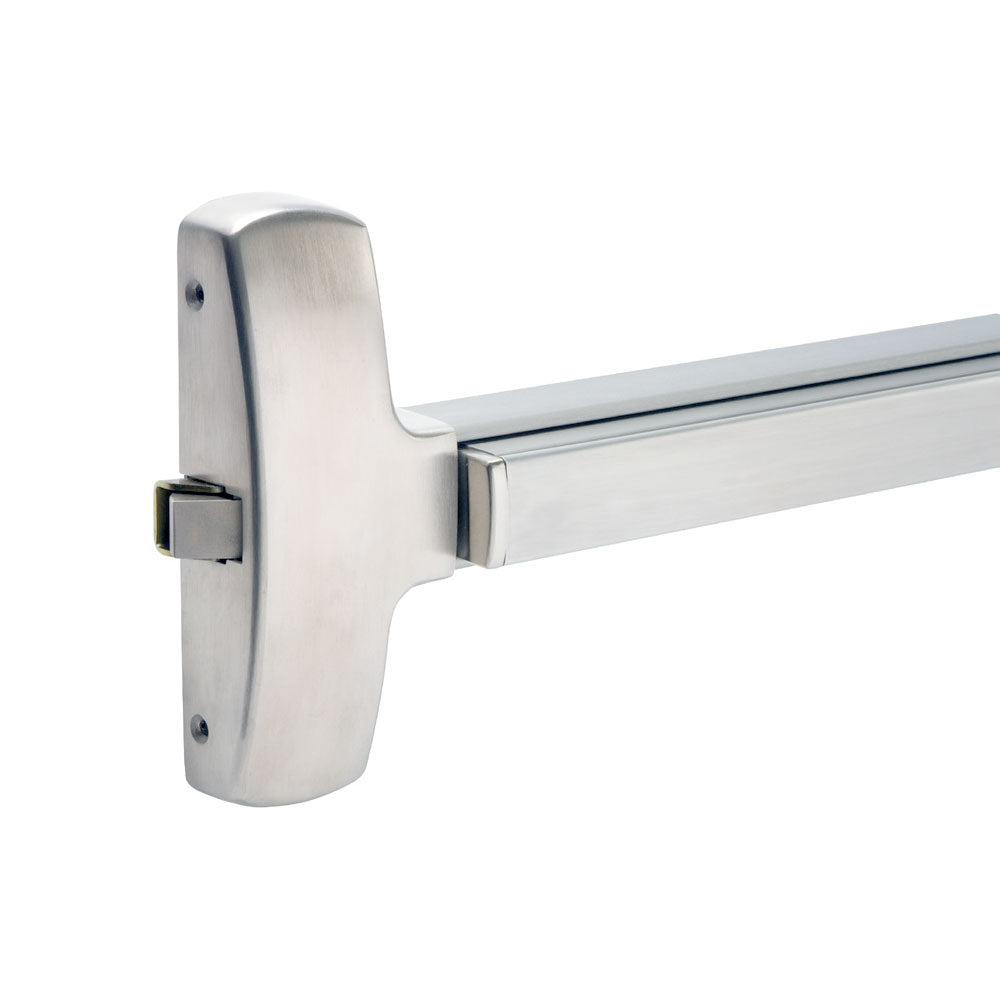

No exposed screws or rivets on the back of the device for a streamlined design and clean lines – when installed on full glass doors. The Falcon 25-R Series rim device meets the demanding requirements of high traffic installations with a single-point, rim type latch, and a streamlined touch bar design.

  • Includes 512NL pull trim
  • Deadlocking latchbolt standard
  • Stock Sizes: 3′ and 4′ – Cut to size in the field

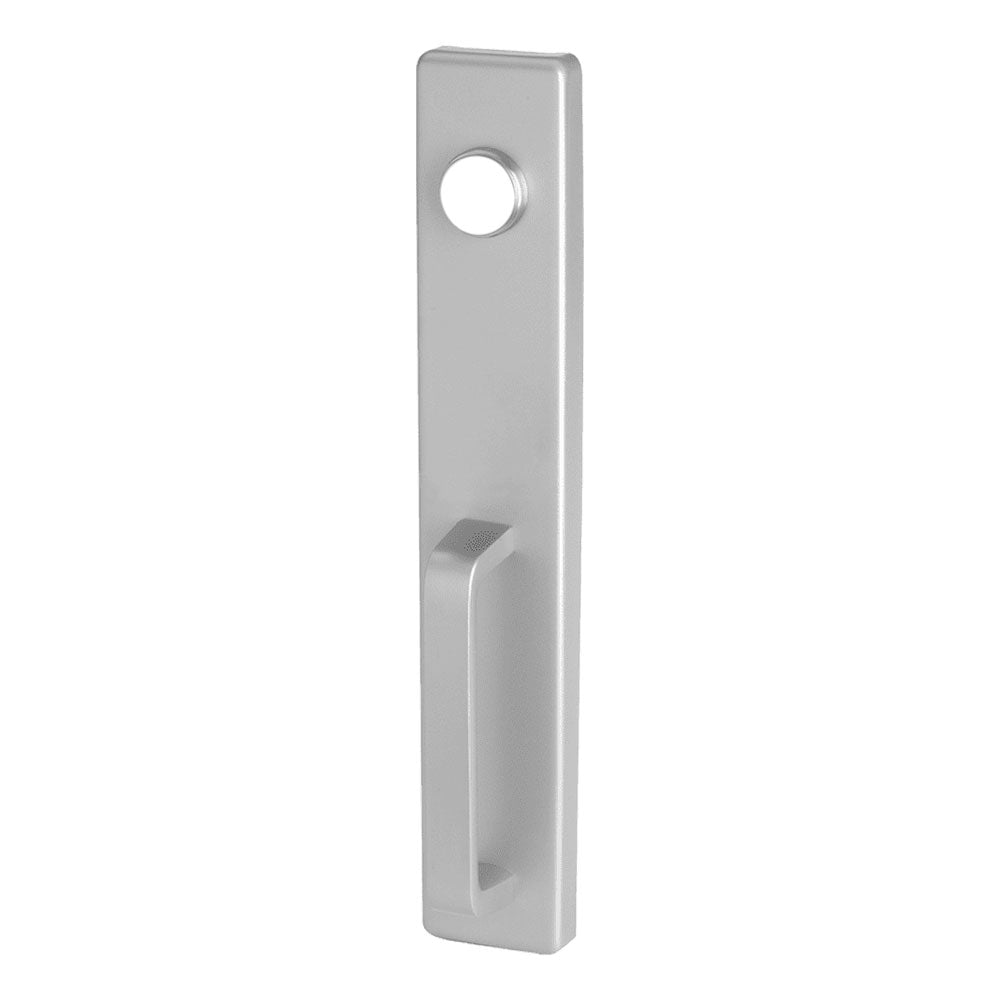

512NL Night Latch Pull Trim

  • ANSI Function: 03 (Entrance by lever when latchbolt is retracted by key - key is removable only when it's locked)
  • Escutcheon plate size: 16" x 2-3/4" x 3/32"
  • Projection: 2-11/16"
  • Pull center to center: 6-1/2"
  • Mortise cylinder must be ordered separately

ANSI Grade

Certified ANSI A156.3-2001 Grade 1 standards
Brand

Falcon
Buy American Act Compliance

Meets Buy Amercian Act - Made in USA
Cylinder

1-1/4" Mortise Cylinder (sold separately)

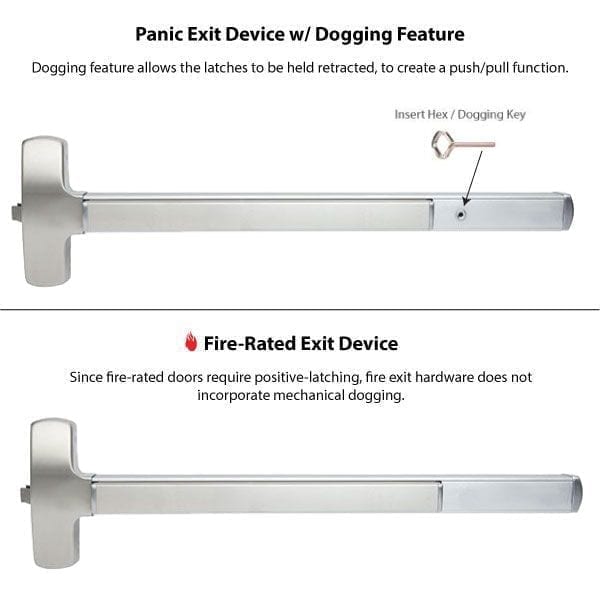

Dogging Feature

Hex key dogging standard on non-fired-rated devices
Door Applications

1-3/4″ Thick Metal or Wood Doors
Fasteners

All mounting screws are concealed sheet metal screws and machine screws standard
Finish

Satin ChromeAnodized AluminumStainless SteelBlackDark Bronze
Finishes

US28 (628) Anodized Aluminum313AN Anodized Dark BronzeUS32D (630) Satin Stainless SteelUS19 Flat BlackUS26D (626) Satin Chrome
Fire-Rated

Non-Fire-Rated (w/ Dogging Feature)Fire-Rated (No Dogging)
Fire Rating

3 Hour Fire-Rated
Hand

Non-handed
Latchbolt

Stainless steel 3/4" throw - Deadlocking
Length

4'0" (3'4" to 4'0" Doors)3'0" (2'8" to 3'0" Doors)
Minimum Stile Width

4" w/ Standard Roller Strike
Projections

2-3/4" maximum 2" dogged
Stile Type

Wide (Standard)
Strike

299 roller strike standard 299F strike with fire-rated device
Trim

512NL
Usage

Heavy Duty
Falcon_25-R_F-25-R_Installation_Instructions Falcon_25-Series_512TP_512TP-BE_512TP-DT_512NL_Installation_Instructions How to Install Von Duprin 98/99 Rim Exit Device

Related Products

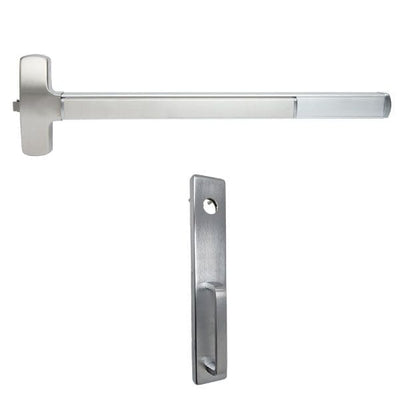

25-R-NL Panic Bar Rim Exit Device with Night Latch Pull
