Product Overview

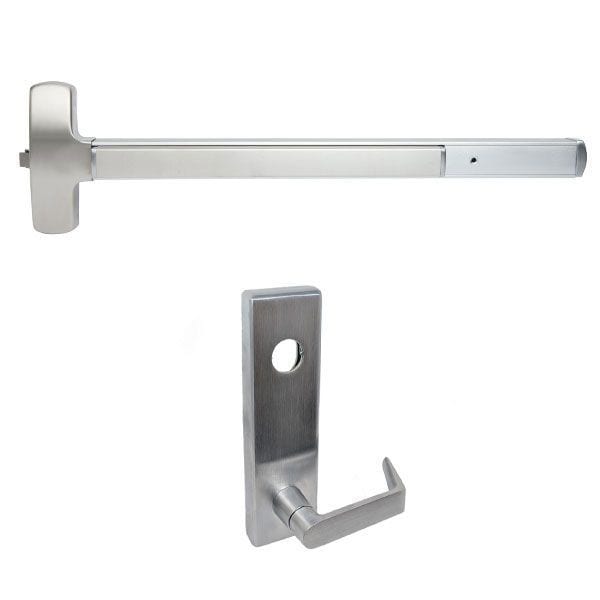

Falcon 25-R-L-NL 25 Series Rim Exit Device with Night Latch Trim, Dane Lever Design
The 25-R-L-NL panic rim exit device with night latch lever trim is for use with single doors and double doors with a mullion.
No exposed screws or rivets on the back of the device for a streamlined design and clean lines – when installed on full glass doors. The Falcon 25-R Series rim device meets the demanding requirements of high traffic installations with a single-point, rim type latch, and a streamlined touch bar design.
- Includes 510L-NL lever trim
- Deadlocking latchbolt standard
- Stock Sizes: 3′ and 4′ – Cut to size in the field
510L-NL Night Latch Lever Trim
- ANSI Function: 09 (key retracts latchbolt, outside lever always locked – similar to storeroom function lock)
- Escutcheon plate size: 2-3/4″ x 9-3/4″ x 7/8″
- DANE lever style furnished standard
- Cylinder must be ordered separately – Requires 1-1/4″ Mortise Device
| ANSI Grade |
Certified ANSI A156.3-2001 Grade 1 standards |
|---|---|
| Brand |
Falcon |
| Buy American Act Compliance |
Meets Buy Amercian Act - Made in USA |
| Cylinder |
1-1/4" Mortise Cylinder (sold separately) |
| Dogging Feature |
Hex key dogging standard on non-fired-rated devices |
| Door Applications |
1-3/4″ Thick Metal or Wood Doors |
| Fasteners |
All mounting screws are concealed sheet metal screws and machine screws standard |
| Finish |
Satin ChromeAnodized AluminumStainless SteelBlackDark Bronze |
| Finishes |
US28 (628) Anodized Aluminum313AN Anodized Dark BronzeUS32D (630) Satin Stainless SteelUS19 Flat BlackUS26D (626) Satin Chrome |
| Fire-Rated |
Non-Fire-Rated (w/ Dogging Feature)Fire-Rated (No Dogging) |
| Fire Rating |
3 Hour Fire-Rated |
| Hand |
Device Non-Handed - Lever Ships as RHR (Field Reversible) |
| Latchbolt |
Stainless steel 3/4" throw - Deadlocking |
| Length |
4'0" (3'4" to 4'0" Doors)3'0" (2'8" to 3'0" Doors) |
| Minimum Stile Width |
4" w/ Standard Roller Strike |
| Projections |
2-3/4" maximum 2" dogged |
| Stile Type |
Wide (Standard) |
| Strike |
299 roller strike standard 299F strike with fire-rated device |
| Trim |
510L-NL |
| Usage |
Heavy Duty |
