Trudoor TDE-2000R-NL Rim Exit Device with Heavy-Duty Night Latch Pull Trim

$204.98
Usually Ships:  Same Day
  • TDE-2000R with Night Latch Pull (cylinder sold separately)
  • Non-handed and reversible for easy installation
  • For use w/ 1-3/4″ thick metal or wood doors

Available Options:

Clear

Product Overview

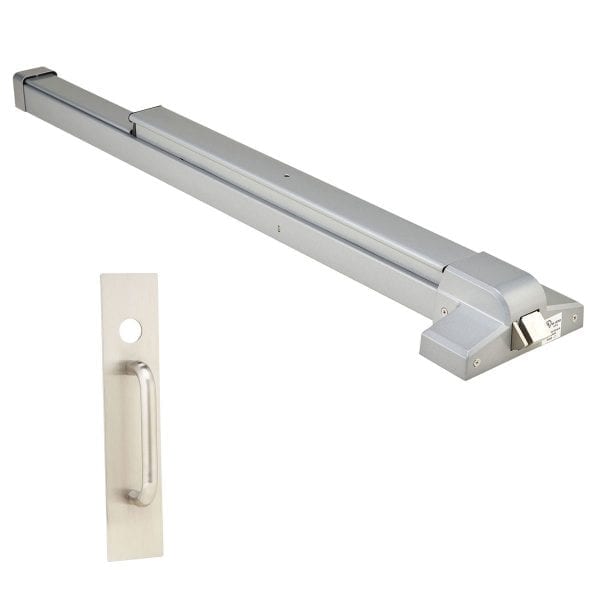

Trudoor TDE-2000R-NL Grade-1 Rim Exit Device with TDE-NL Night Latch Pull Trim

TDE-2000 Series rim exit devices are an ideal choice for a wide variety of standard to medium-duty commercial door applications where durability, reliability, and code compliance are required at an economical price.  Trudoor products meet or exceed industry standards and can be substituted for any other specified brand.

  • ANSI Function: 03 (Entrance by pull when latch bolt is retracted by key – Key is removable only when it’s locked)
  • Rim cylinder must be ordered separately
  • TDE-2000R-NL: UL Listed for Panic Exit Hardware
  • TDE-F2000R-NL: UL Listed for “A” Label 3 Hour Fire Doors (no dogging on fire-rated devices)
  • NL pull is an ideal choice for high use doors that will be dogged down for push/pull applications
  • The Pull thru-bolts to head of exit device
  • Includes ASA strike (frame) filler plate and 161 door edge filler plate

ul-listed







Cross Reference

The TDE-2000R-NL can be specified as a substitute for: Cal-Royal 2200 x 2200PULNL / 5000NL, Design Hardware 2000R x 2P-03NL, Dorma 8300 x PTS03, Falcon 19R-NL / 20R x 218-NL, Hager 4700 x 47PN, PDQ 4200 x 4-GW-03, Von Duprin 22NL, Yale 1800 x 217F / 2100 x 632F

ANSI Grade

Meets ANSI A156.3 – Grade 1 Standards
Brand

Trudoor
Center Case

6″ Height x 2-5/16″ Wide x 2-1/2″ Thick
Cylinder

1-1/8" Rim Cylinder (Sold Separately)
Dogging Feature

Hex key dogging standard on non-fired-rated devices
Fasteners

Wood Machine & Self Tapping Machine Screws
Finish

Aluminum
Finishes

SP28/AL Aluminum Device - US32D (630) Stainless Steel Pull
Fire Rating

TDE-2000R Non-Rated – TDE-F2000R 3 Hour UL Listed
Handing

Non Handed – Completely Reversible
Latchbolt

Deadlocking latchbolt with 5/8″ projection
Length

3ft (for doors 2'4" to 3'0")4ft (for doors 3'4" to 4'0")
Minimum Stile Width

4" w/ Standard Roller Strike
Model

TDE-F2000R Fire-Rated Device (No Dogging)TDE-2000R Panic Device (w/ Dogging Feature)
Projections

2-1/2″ Undogged – 1-13/16″ Dogged (Bar Depressed)
Stile Type

Wide (Standard)
Strike

Roller Strike with 5/8″ projection & 1/8″ shim
Trim

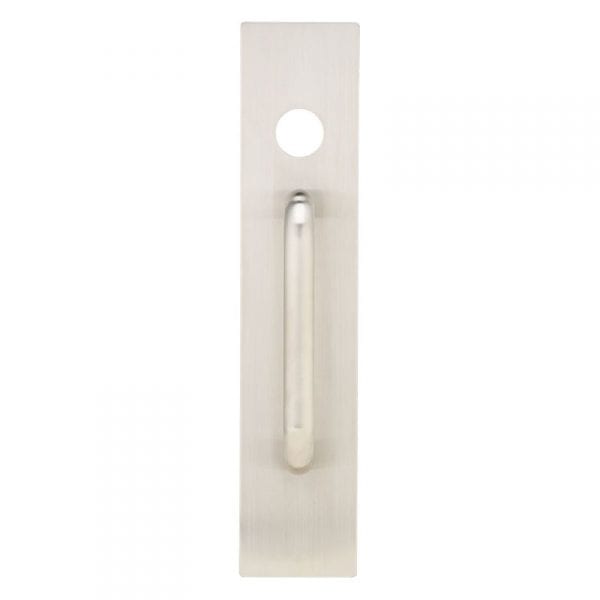

TDE-NL (Night Latch Pull)
Usage

Medium Duty
