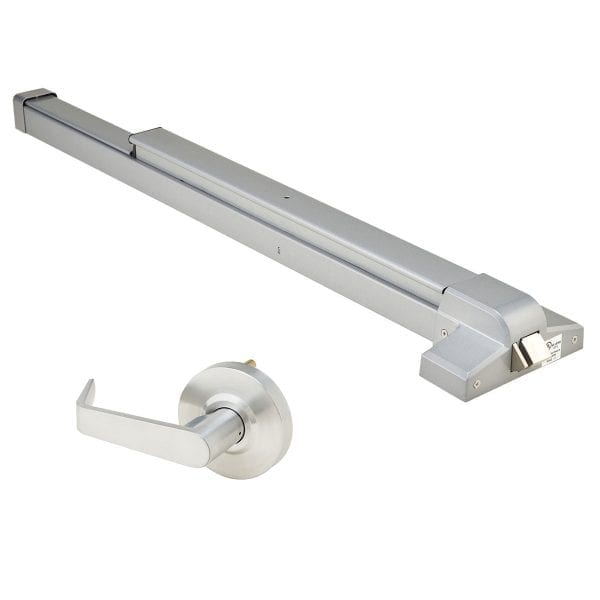

Trudoor TDE-2000R-PAS Rim Exit Device with Passage Lever Trim

$228.85
Usually Ships:  Same Day

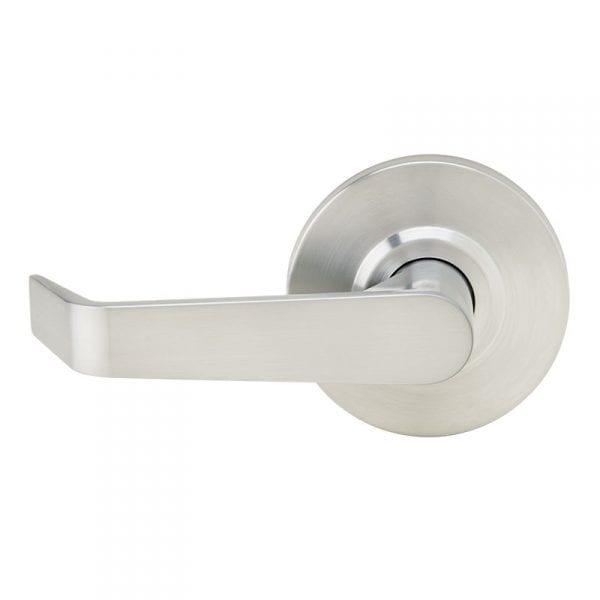

  • TDE-2000R with Passage Lever Trim (keyless, always unlocked)
  • Non-handed and reversible for easy installation
  • Lever installs in standard 2-1/8″ 161 door prep

Available Options:

Clear

Product Overview

Trudoor TDE-2000R-PAS Grade-1 Rim Exit Device with TDE-PAS Passage Lever Trim

TDE-2000 Series rim exit devices are an ideal choice for a wide variety of standard to medium-duty commercial door applications where durability, reliability, and code compliance are required at an economical price.  Trudoor products meet or exceed industry standards and can be substituted for any other specified brand.

  • TDE-2000R: UL Listed for Panic Exit Hardware
  • TDE-F2000R: UL Listed for “A” Label 3 Hour Fire Doors (no dogging on fire-rated devices)
  • Includes ASA strike (frame) filler plate and 161 door edge filler plate
  • ADA compliant lever trim and meets California code for 1/2" lever return to door face





Cross Reference

The TDE-2000R-PAS can be specified as a substitute for: Cal-Royal 2200 x PAS30L / 5000 x 8000PAS, Design Hardware 2000R x KIL-PASSAGE, Dorma 8300 x 8R23, Falcon 19R-KIL-BE / 20R x 214-KIL-BE, Hager 4700 x 47KP, PDQ 4200 x 4-SH-14, Von Duprin 22L-BE , Yale 1800 x 448F / 2100 x 448F

ANSI Grade

Meets ANSI A156.3 – Grade 1 Standards
Brand

Trudoor
Center Case

6″ Height x 2-5/16″ Wide x 2-1/2″ Thick
Dogging Feature

Hex key dogging standard on non-fired-rated devices
Fasteners

Wood Machine & Self Tapping Machine Screws
Finish

BlackAluminum
Finishes

622 Matte BlackSP28/AL Aluminum Device - US26D/626 Satin Chrome Lever
Fire Rating

TDE-2000R Non-Rated – TDE-F2000R 3 Hour UL Listed
Handing

Non Handed – Completely Reversible
Latchbolt

Deadlocking latchbolt with 5/8″ projection
Length

4ft (for doors 3'4" to 4'0")3ft (for doors 2'4" to 3'0")
Minimum Stile Width

4" w/ Standard Roller Strike
Model

TDE-2000R Panic Device (w/ Dogging Feature)TDE-F2000R Fire-Rated Device (No Dogging)
Projections

2-1/2″ Undogged – 1-13/16″ Dogged (Bar Depressed)
Stile Type

Wide (Standard)
Strike

Roller Strike with 5/8″ projection & 1/8″ shim
Trim

PAS (Passage Lever)
Usage

Medium Duty
