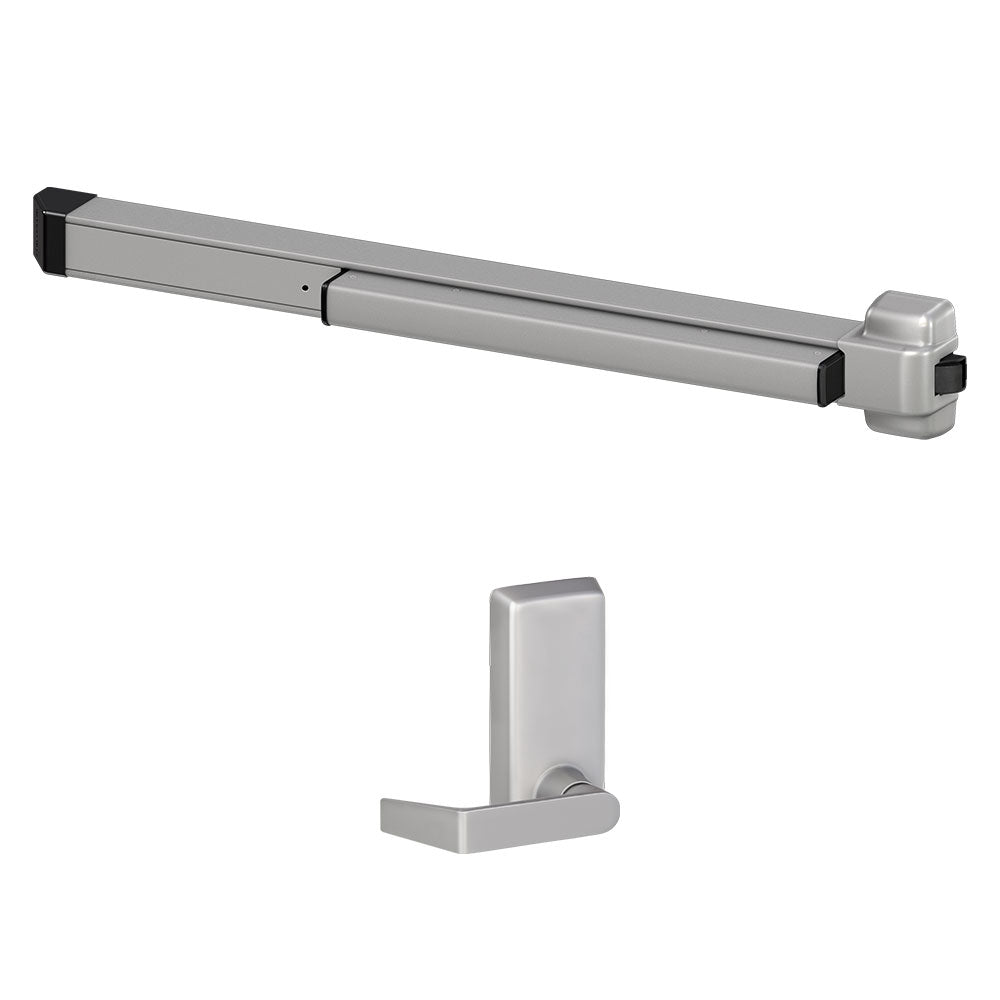

Von Duprin 22L-BE Rim Panic Bar Exit Device with Passage Lever

$530.08
This item ships FREE! Usually Ships:  1-2 Business Days
  • ANSI/BHMA Grade-1 Certified - Made in USA
  • ANSI Function 14 (lever always operable)
  • Includes 230L-BE Lever (passage - blank escutcheon)

Available Options:

Clear

Product Overview

The 22 Series wide stile device is a cost-effective solution for medium to low traffic areas where proven reliability is needed. The non-handed design of the 22 Series makes it more adaptable in the field. It is ANSI A156.3, Grade-1 certified and has UL fire ratings (22-F). The 22 Series is designed and manufactured in accordance to ISO 9001 Quality Management System. It also is UL listed for Panic Hardware or Fire Hardware.

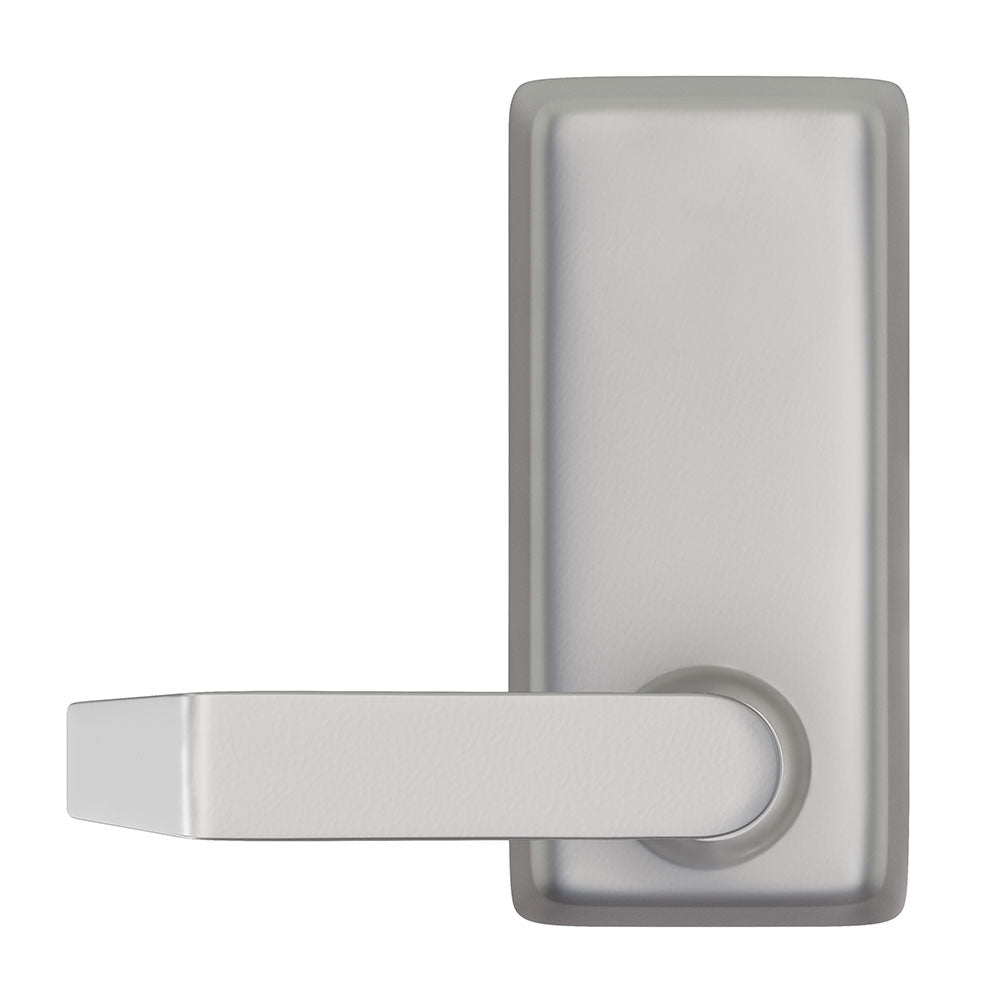

230L-BE Passage Lever Trim (Lever Always Operable, No Cylinder)

  • ANSI Function: 14
  • Escutcheon plate size: 3" x 6-3/8" x 15/16"
  • Projection: 2-5/8"
  • #06 lever style furnished standard

ANSI/BHMA Standard

ANSI/BHMA A156.3-2008 Grade 1 certified
Brand

Von Duprin
Buy American Act Compliance

Meets Buy Amercian Act - Made in USA
Dogging Feature

Hex key dogging standard on non-fired-rated devices
Finish

Dark BronzeAluminum
Finishes

695 Dark Bronze689 Aluminum
Fire-Rated

Fire-Rated (No Dogging)Non-Fire-Rated (w/ Dogging Feature)
Fire Rating

22-EO Non-Rated – 22-EO-F UL listed A or B label fire rating
Hand

Device Non-Handed - Lever Field Reversible
Latchbolt

Deadlatching 3/4" throw
Length

4'0" (3'4" to 4'0" Doors)3'0" (2'4" to 3'0" Doors)
Stile Type

Wide (Standard)
Trim

230L-BE
Usage

Medium Duty
