Product Overview

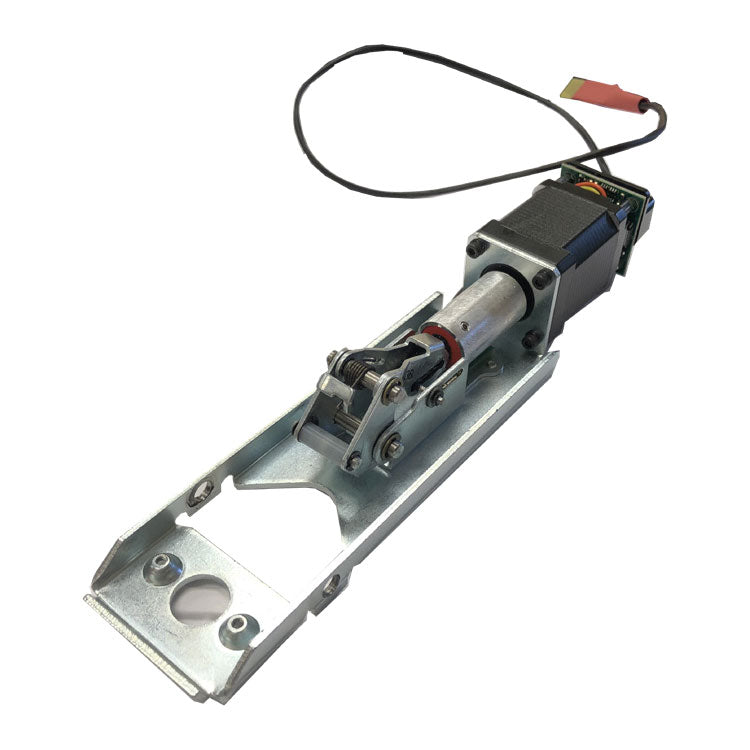

Command Access MLRK1-SGT Motorized Latch Retraction Kit, for Sargent 80 Series Exit Devices (Field Installation)
The MLRK1-SGT is a cost-effective and straightforward way to upgrade your Sargent 80 series device to motor-driven latch retraction in the field. UL Listed + 3 Year Warranty.
The MLRK1-SGT is a practical and cost-effective way to convert a mechanical Sargent 80 series device to an electrified latch pullback device while maintaining the UL listing. Our easy-to-install motor-driven kit installs in moments. It is equipped with PTS technology allowing for an easy post-installation adjustment of the latch/latches. Last but not least, the SLP features an updated MM4S module with 2 different energy consumption settings from energy-conscious to high torque to get the tough jobs done!
- Works with all Sargent 80 Series Devices
- MM4S Smart Module: On-board diagnostics with audible feedback for adjustment and power issues
- Remote MM4S module for easy accessibility & servicing
- “PTS”: 5-second electronic adjustment for easy post-installation adjustment
- Electric dogging rated for continuous duty - Auto re-engage if push pad is pulled from dogged position
- Low Current Draw - Field switchable to “High Torque” mode
- Up to 300’ wire run with 2-18ga wire - Long wire runs provide the installer with the convenience of placing the Command locking hardware power supply in a centralized location; i.e., the same closet as the access control panel
- 8’ cable with Quick Connect for MM4S module to easily connect to power supply lead
- Request-to-exit kit available
- UL Listed
- 3-Year “No Hassle” Warranty
Specifications:
- Voltage range – 24 to 28 VDC
- System protection – unit shutdown when voltage exceeds 28 VDC
- Standard - average current peak: 900MA, average current hold: 215MA
- High Torque - Average Current Peak: 2A, High Average Current Hold: 250mA
- PTS adjustment - approx. 1/4"
- Wire Run: 300' with 18ga wire
- Cutdown details: 36” - All the way to push pad, 48” - All the way to push pad
| Brand |
Command Access |
|---|---|
| Buy American Act Compliance |
Meets BAA - Buy American Act |
| Compatible Devices |
Sargent 80 Series |
| Part Type |
Electric Latch Retraction Kit |
