Sargent

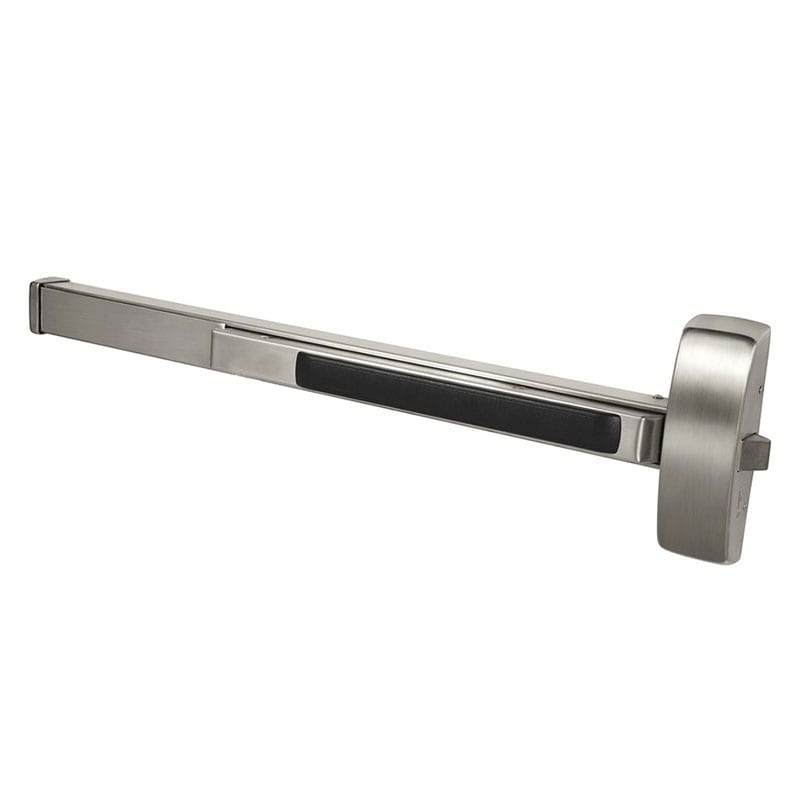

Sargent 12-8888/8810 Fire-Rated Rim Exit Device, Multi-Function

$1,425.24
This item ships FREE! Usually Ships:  1-2 Business Days
  • Heavy-Duty, ANSI/BHMA Grade-1 Certified
  • Designed for high use and abuse applications
  • Exit Only (trim sold separately)

Available Options:

Clear

Product Overview

Sargent 12-8888/12-8810 Grade 1 Fire-Rated Rim Exit Bar, Wide Stile Pushpad, Multi-Function, Exit Only

Designed for standard width stile applications on wood and metal doors, the 8800 Series features a rim bolt that combines quiet operation with solid security. Ideal for schools, offices, and hospitals—for both single door and double door applications with mullions.

  • 12- option = UL Listed Fire-Rated
  • Exit Only (outside trim sold separately)
  • Universal, multi-function rim exit device
  • Device & trim sold separately; easy to mix and match
  • Architectural finish with black Lexan touchpad
  • Designed for standard width stile applications on wood and metal doors
  • 7 functions available as determined by the trim function
  • UL10C (Fire) Listed



ANSI/BHMA Standard

ANSI/BHMA A156.3 - Grade 1
Brand

Sargent
Dogging Feature

None
Door Applications

1-3/4" Metal and Wood Doors
Finish

BlackDark BronzeBright BrassSatin BronzeSatin BrassStainless Steel
Finishes

US4 (606) Satin BrassUS10B (613) Oil Rubbed BronzeBSP Black Suede Powder CoatUS10 (612) Satin BronzeUS32D (630) Satin Stainless SteelUS3 (605) Bright Brass
Fire Rating

12-8888 Model UL10C Fire-Rated
Handing

Non Handed – Completely Reversible
Latchbolt

Stainless steel 3/4” throw
Length

G - 48" (for 43" to 48" Doors)J – 42" (for 37" to 42" Doors)F - 36" (for 33" to 36" Doors)E - 32" (24" to 32" Doors)
Stile Type

Wide (Standard)
Strike

649 Strike supplied standard
Usage

Heavy Duty
