Sargent

Sargent M56AF Electric Latch Retraction Motor Kit for 80 Series Exit Devices, F Rails (33-36in)

$676.58
This item ships FREE! Usually Ships:  1-2 Business Days
  • For Sargent 80 Series exit devices, F Rails (33" to 36" wide)
  • Motor-driven electric retraction for smooth precise operation
  • Retrofits standard mechanical rail

Product Overview

Sargent M56AF Electric Latch Retraction Motor Kit for 80 Series Exit Devices (Mfg. After 2006), F Rails (33-36in)


The 56- Motor Retrofit Kits can only be added to 80 Series Exit Devices manufactured after 2006 & P Series Exit Devices
  • For Sargent 80 Series exit devices, F Rails (33" to 36" width)
  • Motor-driven electric retraction for smooth precise operation
  • Retrofits standard mechanical rail
  • Contains ribbon wiring
  • Amount of rail retraction is automatically controlled by the 56- circuitry; System actively monitors its position and adjusts itself
  • Digital retraction timer (0-20 seconds; factory setting is 5 seconds
  • Can be used for continuous and intermittent use
  • Power Requirements: 24VDC regulated/filtered power supply
  • Current draw: .6A during retraction and .25A maintained in dogged hold position
  • Requires 1A at 24VDC regulated/filtered power supply

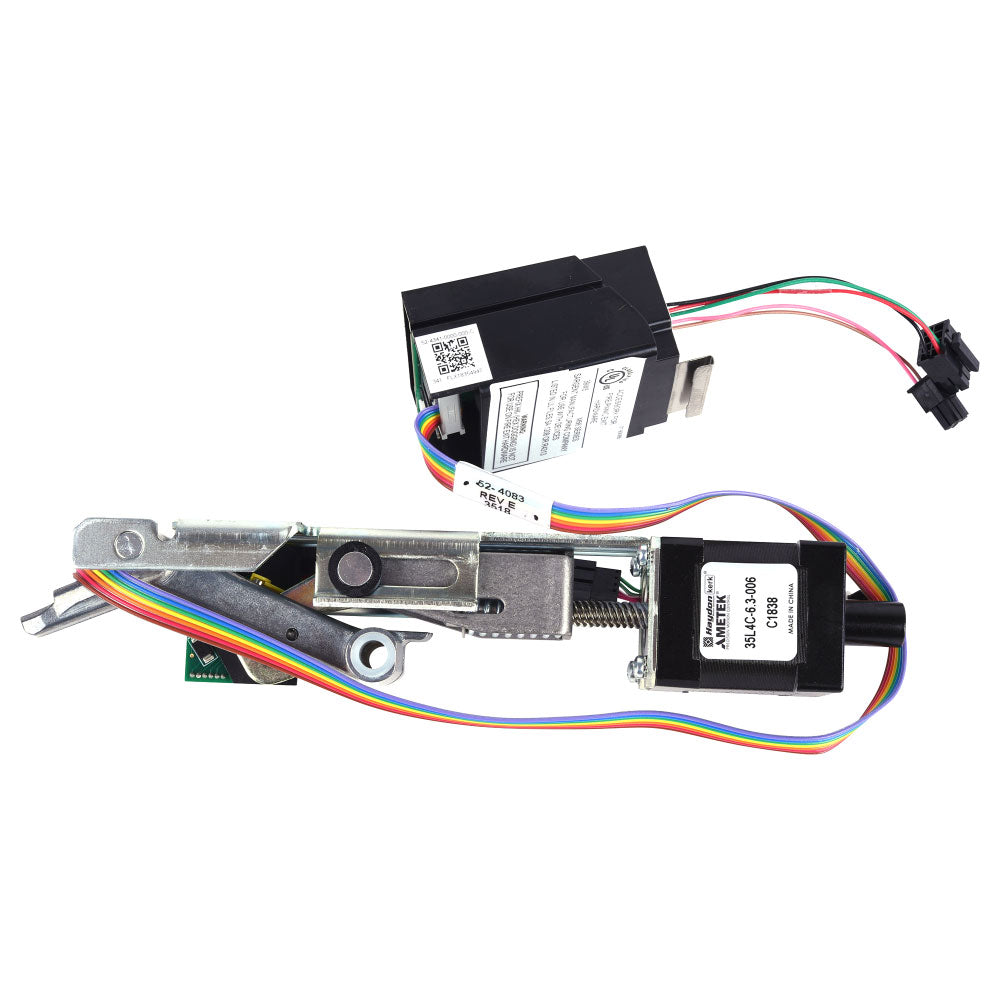

  • Kit includes: Motor Bracket Assy, Motor Controller & Fasteners
