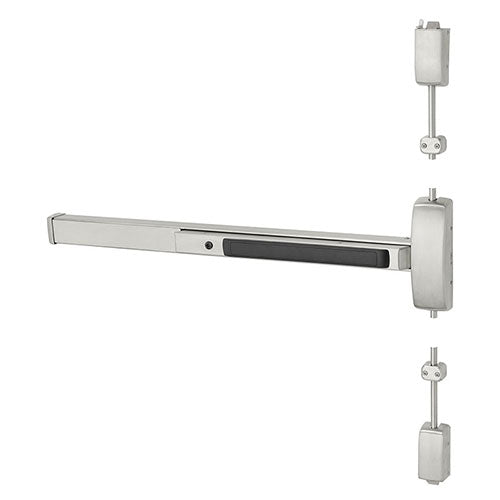

Sargent 8710 Surface Vertical Rod Exit Device, Exit Only

$1,817.47
This item ships FREE! Usually Ships:  1-2 Business Days
  • Heavy-Duty, ANSI/BHMA Grade-1 Certified
  • Designed for high use and abuse applications
  • Exit Only (no outside operation)

Available Options:

Clear

Product Overview

Sargent 8700 Series (8710) Grade 1 Surface Vertical Rod Exit Bar, Wide Stile Pushpad, 84" Door Height, Exit Only

The 8700 Series offers two point latching with vertical rods mounted to the surface of the door face. It provides a top and bottom latch which can be adjusted via the center case. Meeting ANSI/BHMA Grade 1 standards, the 8700 Series can be used for single and double door applications.

  • Exit Only (no outside operation - no cylinder)
  • Sargent Function: 10
  • ANSI Function: 01 (no outside operation - no cylinder) or 02 No outside operation (no cylinder) ET Control is used as pull only
  • Two point latching (top & bottom with adjustability through center case)
  • Architectural finish with black Lexan touchpad
  • Standard bottom latch compatible with latch track thresholds (by others)
  • Designed for standard width stile applications on wood and metal doors
  • ANSI/BHMA A156.3 - Grade 1
  • UL305 (Panic) Listed

Rails are available in 4 sizes, use door width to determine size needed

  • E Rail for 24" to 32" door widths, No cutting required for 32" door
  • F Rail for 33" to 36" door widths, No cutting required for 36" door
  • J Rail for 37" to 42" door widths, No cutting required for 42" door
  • G Rail for 43" to 48" door widths, No cutting required for 48" door



ANSI/BHMA Standard

ANSI/BHMA A156.3 - Grade 1
Brand

Sargent
Buy American Act Compliance

Meets Buy Amercian Act - Made in USA
Device Type

Surface Rod Device
Dogging Feature

Half turn hex dogging standard
Door Applications

1-3/4" Metal and Wood Doors
Door Height

Up to 7'0" Standard (extension top rod for 8'0" doors optional)
Fasteners

Supplied standard with wood and machine screws
Finish

Stainless Steel
Finishes

US32D (630) Satin Stainless Steel
Fire Rating

None
Handing

Handed - Field Reversible
Length

G - 48" (for 43" to 48" Doors)J – 42" (for 37" to 42" Doors)F - 36" (for 33" to 36" Doors)E - 32" (24" to 32" Doors)
Minimum Stile Width

4-1/2" minimum stile width with trim and 3-1/2" minimum stile without trim
Projections

3" active 2-1/8" depressed
Stile Type

Wide (Standard)
Strike

646 Top Strike (Panic and Fire Rated) 624 Bottom Strike; 655 Fire Rated Bottom Strike
Usage

Heavy Duty
