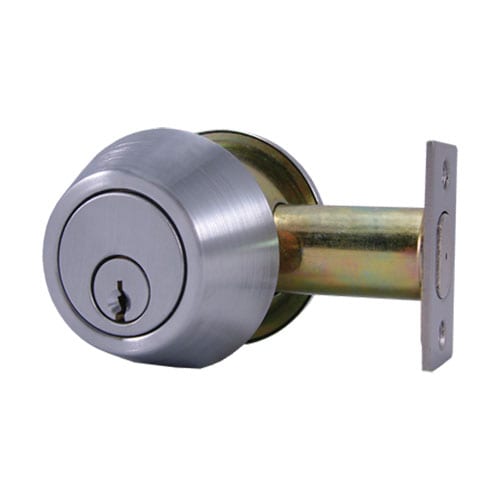

Design Hardware D2-S Single Cylinder Deadbolt Lock

$48.78
Usually Ships:  3-5 Business Days
  • Meets ANSI A156.2, Grade 2 Standards
  • Single Cylinder x Inside Turn
  • ADA Compliant, Fire-Rated

Available Options:

Clear

Product Overview

Design Hardware delivers outstanding field performance with the highest quality selection of commercial door hardware.

  • ANSI E21522 - Single cylinder outside, thumbturn inside
  • ANSI: Meets & Exceeds ANSI – A156.2, Grade 2 Standards
  • UL Listings: UL Listed for “A” Label 3 Hour Fire Doors
  • ADA Compliance: 2″ ADA Thumbturn Meets ADA & ANSI A117.1 accessibility codes
ANSI Function

E21522
ANSI Grade

Meets & exceeds ANSI – A156.2 Grade 2 standards
Backset

2-3/4"
Bolt

1" throw bolt 1-1/8" x 2-1/4" square corner face plate
Brand

Design Hardware
Cylinder Format

Conventional
Cylinder & Keys

6-pin conventional keyed different with 2 keys
Deadbolt Type

Single Cylinder
Door Thickness

1-3/4"
Finish

Satin Chrome
Finishes

US26D (626) Satin Chrome
Fire Rating

UL Listed for “A” Label 3 Hour Fire Doors
Keyway

Schlage C Keyway
Strike

1-1/8” x 2-3/4“ square corner
Usage

Medium Duty
